Frame size depends on the enclosure type, power range, and AC line
voltage.
L1
L2
L3
PE
F1
1
L1 L2 L3 PE
91 92 93 95
88 89
DC–DC+
12
27
37
18
50
53
55
R – R+
81 82
96 97 98 99
U V W PE
M
3 ~

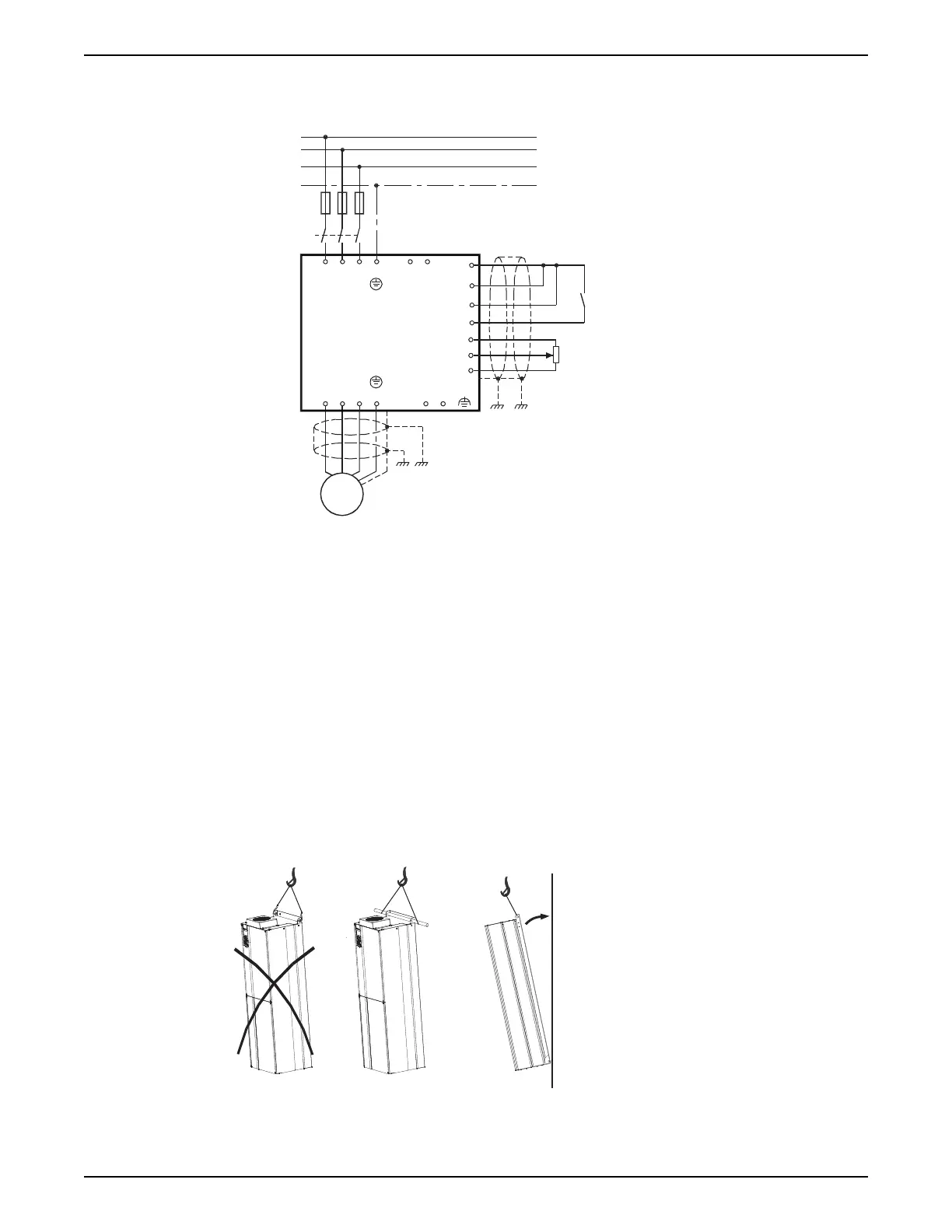

Figure 22: Basic installation including line power, motor, start/stop key, and
potentiometer for speed adjustment
4.1.5 Cooling
• To provide cooling airflow, mount the unit to a solid flat surface or to the optional back
plate.
• Top and bottom clearance for air cooling must be provided. Generally 225 mm (9 in) is
required.
• Improper mounting can result in over heating and reduced performance.
• Derating for temperatures starting between 45°C (113°F) and 50° C (122°F) and
elevation 1,000 m (3,300 ft) above sea level must be considered.
4.1.6 Lifting
Always lift the adjustable frequency drive using the dedicated lifting holes. For all D and
E2 (IP00) enclosures, use a bar to avoid bending the lifting holes of the adjustable
frequency drive.
Figure 23: Recommended lifting method, frame sizes D and E
4 Mechanical Installation
Aquavar
®
Intelligent Pump Controller - 150 HP to 600 HP INSTRUCTION MANUAL 27
