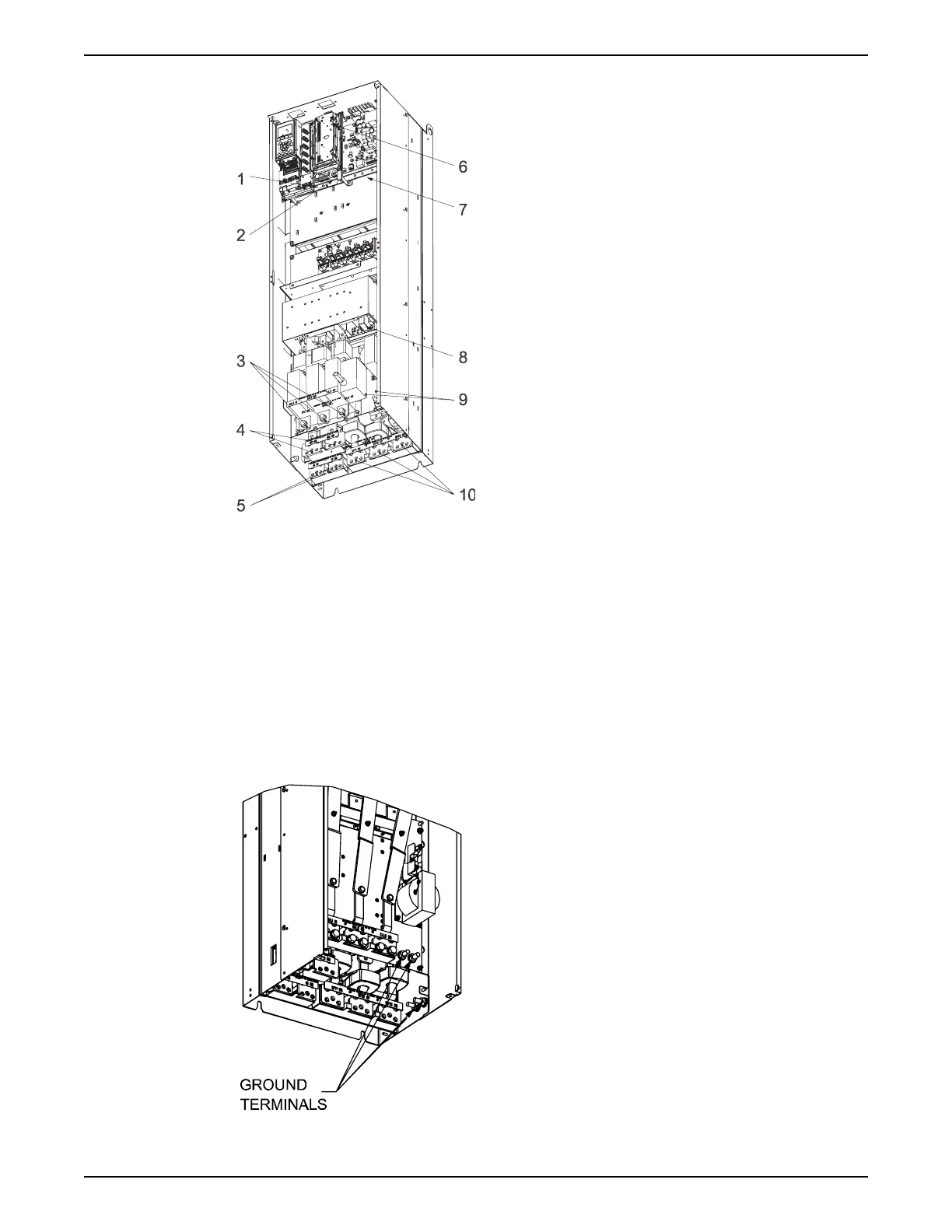

Figure 54: Compact IP 00 (chassis) with disconnect, fuse and RFI filter, frame size D4
1. AUX Relay
2. Temperature switch
3. Line
4. Load sharing
5. Brake
6. SMPS Fuse (see fuse tables for part number)
7. AUX Fan
8. Fan fuse (see fuse tables for part number)
9. Line power ground
10.Motor
Figure 55: Position of ground terminals IP00, frame sizes D
5 Electrical Installation
