23

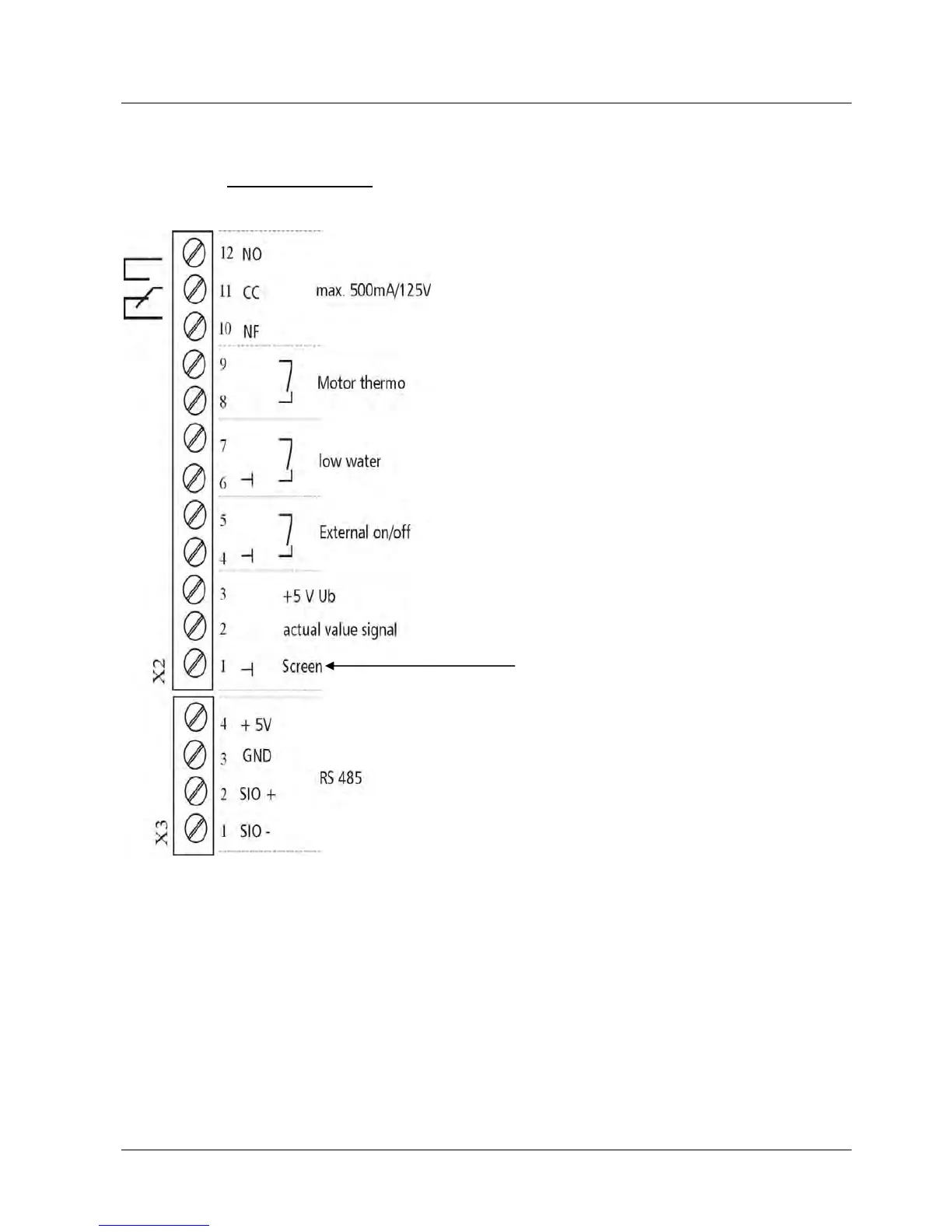

Control-Terminals:
Power supply for external control 5VDC
External release Ri 10kOhm, 5VDC (use gold
plated contact)
Thermistor
Ground (not earthened)
0,5-4,5 VDC
