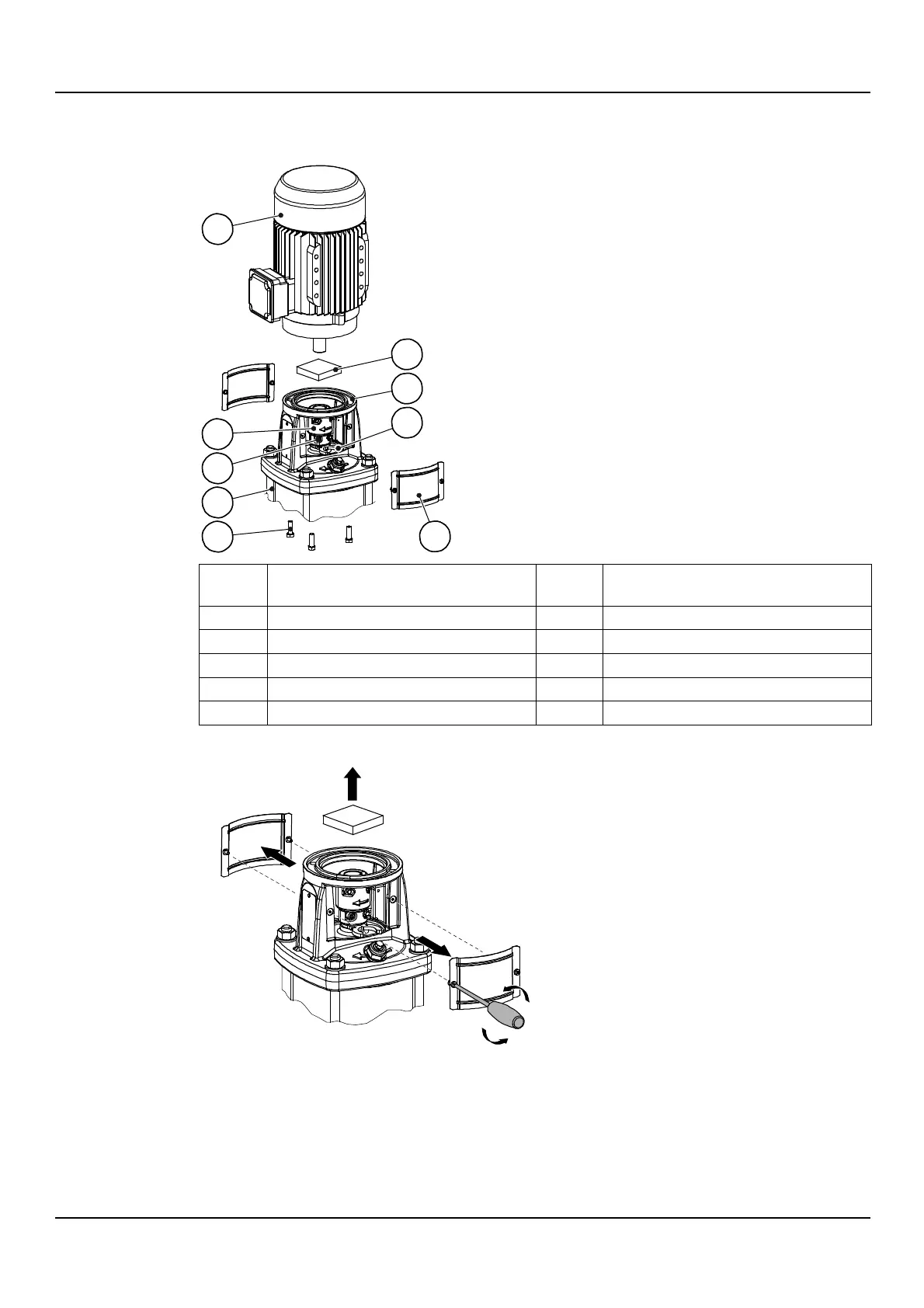

4.2 Assembly of the motor
Position
number
Description
Position
number
Description
1
Motor
6
Pump shaft shim
2
Coupling
7
Adapter
3
Couple screw
8
Impeller stack shim
4
Pump
9
Coupling protection
5
Motor fixing screws
1. Remove the protections and shim.
ESV_M0023_A_de
1
1
1
2
1
3
1
4
1
5
1
8
16
17
1
9
ESV_M0018_A_de
