e-SV series – Additional Installation, Operation and Maintenance Instructions 15
Marks of safety approval
For products with a mark of electrical-related safety approval such as IMQ, TUV, IRAM, etc., the
approval refers exclusively to the pump unit.

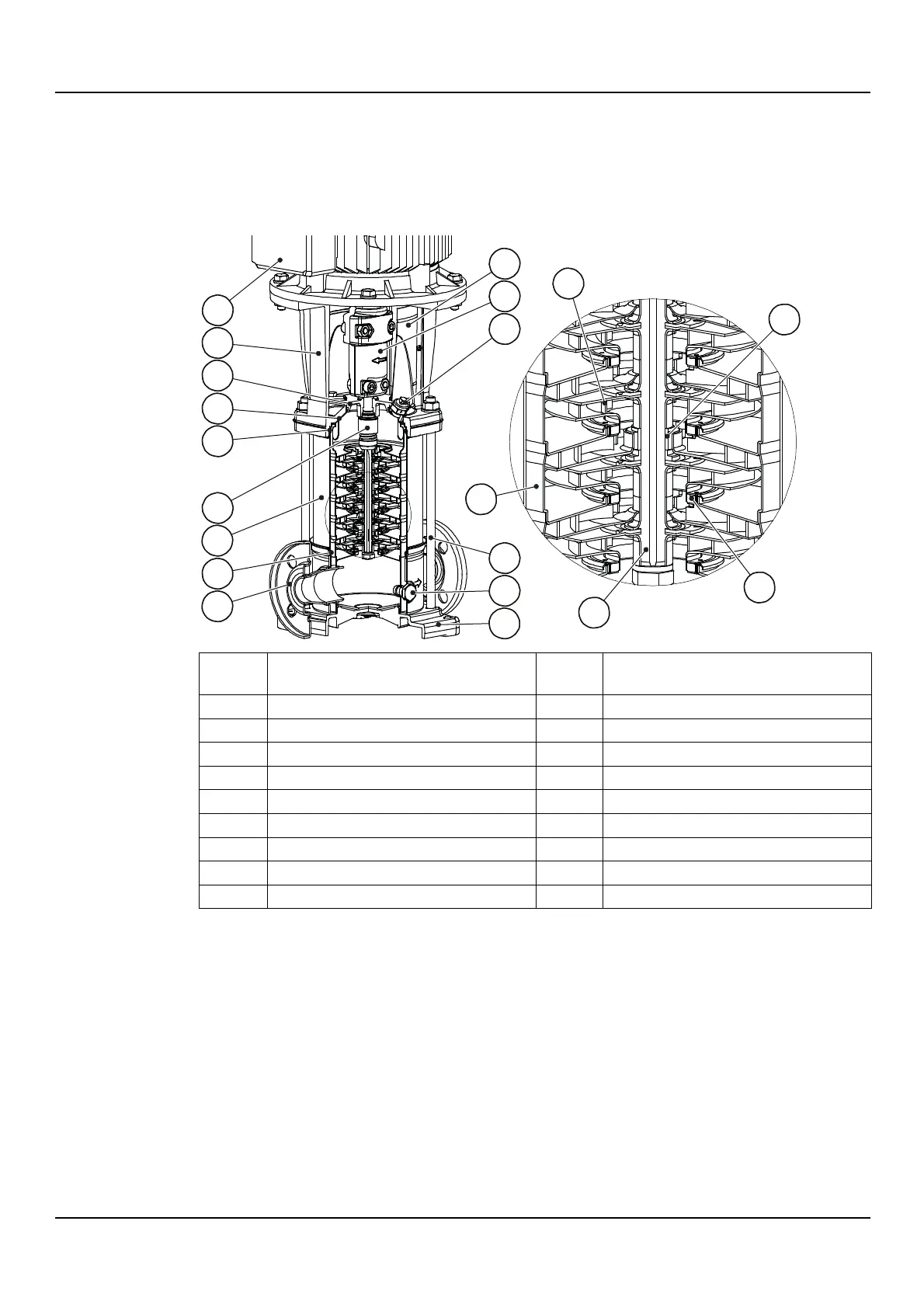

3.4 Names of the main components
Position
number
Description
Position
number
Description
1
Pump body
10
Mechanical seal
2
Impeller
11
Elastomers
3
Diffuser
12
Coupling protection
4
Outer sleeve
13
Shaft sleeve and bush
5
Shaft
14
Fill and drain plug
6
Motor adapter
15
Tie rod
7
Base plinth
16
Wear ring
8
Coupling
17
Seal housing
9
Disk
18
Motor
1
11
1
1
1
4
1
9
1
11
1
6
1
17
1
15
1
14
1
7
1
10
1
12
1
8
1
14
1
2
1
16
1
3
1
5
1
16
ESV_M0007_A_ds
1
18
