4.1.3 Outdoor unit installation

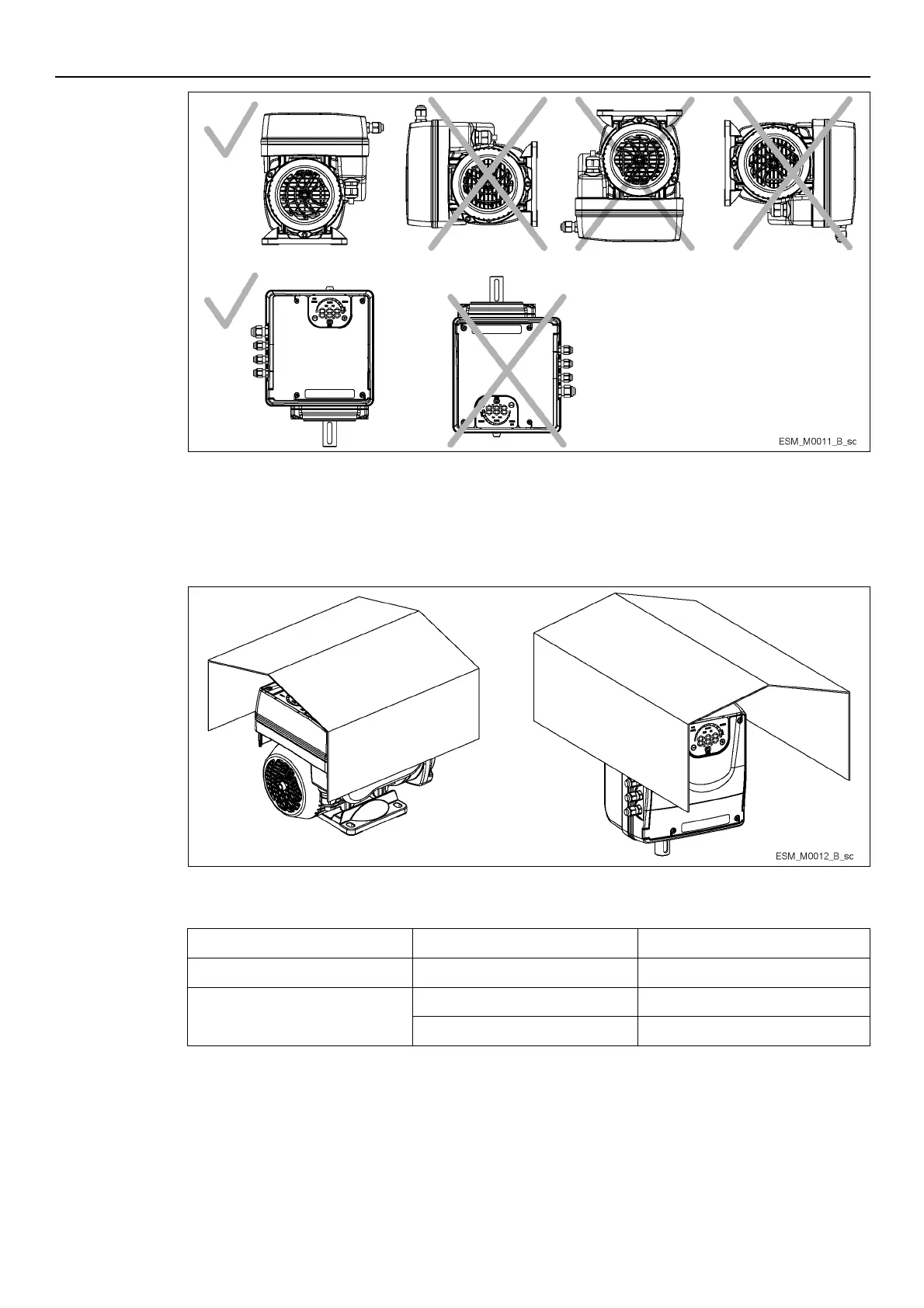

In case of outdoor unit installation, ensure appropriate cover, see the figure below. The size of
the cover must be such that the motor is not exposed to snow, rain or direct sunlight; see also
Technical Information on page 48.
Minimum spacing
Area
e-SM Drive model
Free Distance
Above the unit
103..105..107..111..115
> 260mm (10.2 in)
Center-distance between units (to
ensure space for cabling)
103..105..107..111..115
> 260mm (10.2 in)
303..305..307..311..315..322
≥ 300mm (11.8 in)
