1. Series
ESM
2. Motor frame dimension
90R: Oversized Flange
80: Standard Flange
3. Shaft extension
□□: Standard shaft extension
S8: Custom Shaft extension
4. Power supply
1: single phase power supply
3: three phase power supply
5. Shaft power•10 [kW]
03: 0.37kW (0.50HP)
05: 0.55 kW (0.75 HP)
07: 0.75 kW (1.00 HP)
11: 1.10 kW (1.50 HP)
15: 1.50 kW (2.00 HP)
22: 2.20 kW (3.00 HP)
6. Motor frame arrangement
SVE: Flange with tapped holes and shaft w/o keyseat
B14: Flange with tapped holes
B5: Flange with free holes
HMHA:Suitable for 1÷5 e-HME monolithic pumps
HMHB: Suitable for 1÷5 e-HME pumps w/sleeve
HMVB:Suitable for 1÷5 VM pumps
HMHC:Suitable for 10÷22 e-HME pumps
HMVC:Suitable for 10÷22 VM pumps
LNEE: Suitable for In-Line pumps
56J: Compliant to NEMA 56 Jet standard
56C: Compliant to NEMA 56C standard
7. Reference market
□□: Standard
EU:EMEA
US: North America
8. Voltage
208-240 : 208-240VAC 50/60Hz
380-460 : 380-460VAC 50/60Hz
230/400: 208-240/380-460VAC 50/60Hz
3.2.2 e-HME and VME pumps

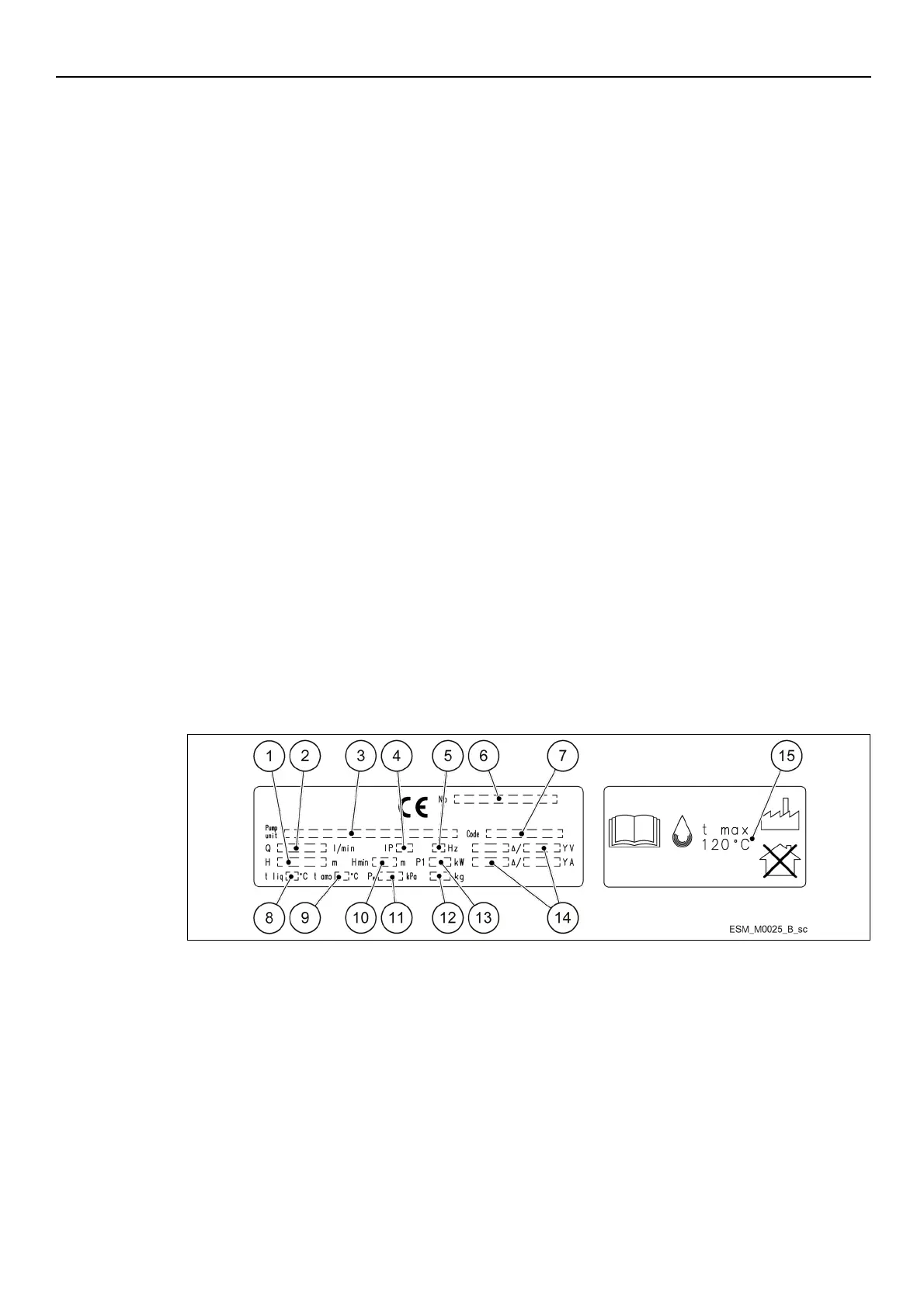

Data plate
1. Head range
2. Flow rate range
3.
Pump/electric pump unit type definition code
4.
Protection class
5.
Frequency
6.
Serial number (date+progressive number)
7.
Electric pump unit/pump part number
8. Maximum operating liquid temperature (uses as EN
60335-2-41)
9. Maximum operating ambient temperature
10. Minimum head (EN 60335-2-41)
11.
Maximum operating pressure
12.
Electric pump unit weight
13.
Electric pump unit absorbed power
14.
Electrical data
15.
Maximum operating liquid temperature (uses other
than as EN 60335-2-41)
