en – Original instructions
26
I/O wiring procedure
Also see Design and layout on page 17.
1. Open the terminal box cover, remove the screws.

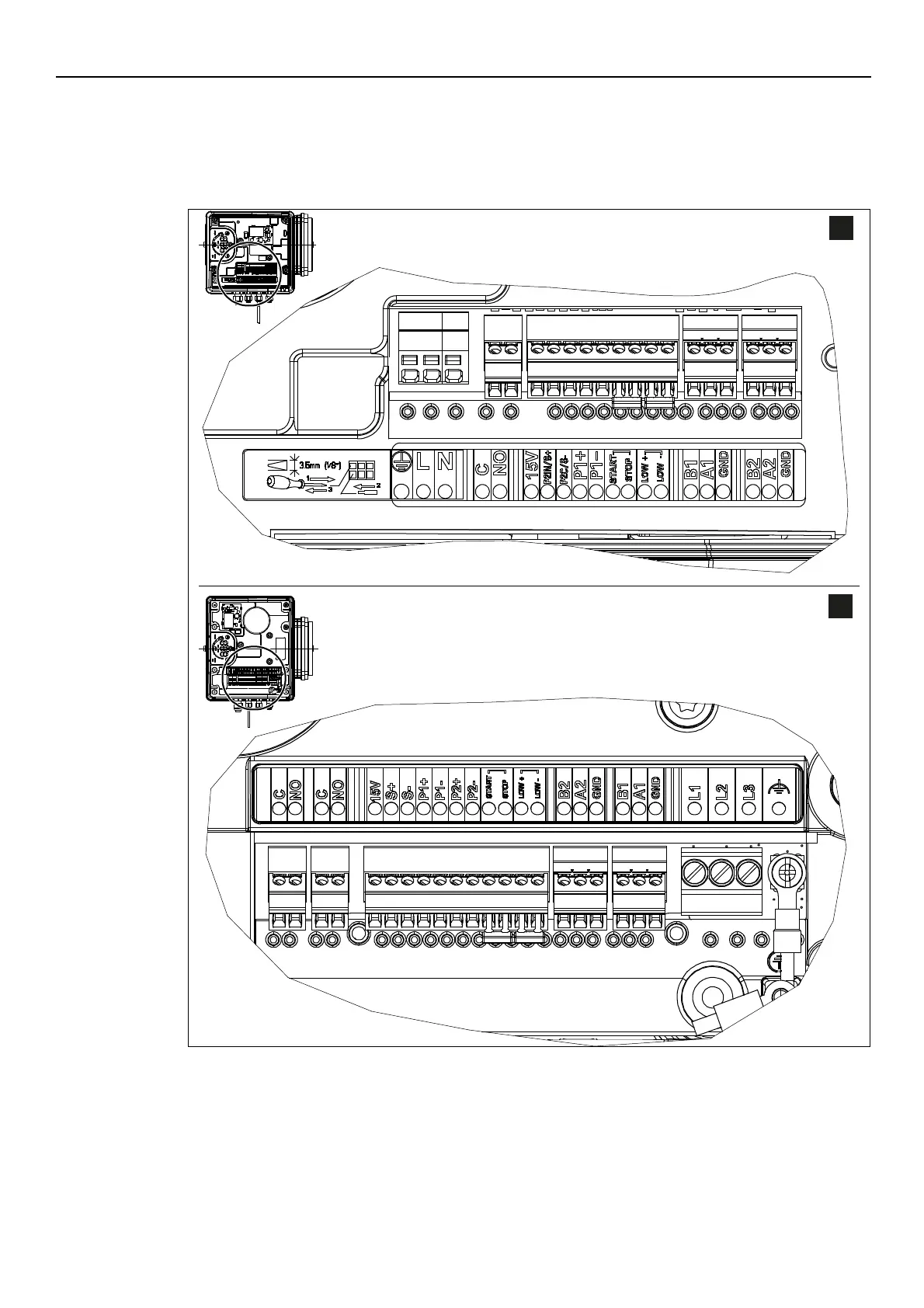

2. Connect the cable according to the wiring diagram. See the figure below.
3. Close the cover and tighten the screws.
1 2 3 4 5 6 87 9 10 11 12 13 14 15 16 17 18 19 20
1~
25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
3~
