10. Remove flange head capscrew, yoke, and spacer
from transmission housing. Make sure to not
damage the oil seal. Remove and discard stat-o-
seal from yoke. See Figure 38.
NOTE: Note position of oil seal prior to removal to aid
in installation.
11. Remove oil seal from transmission housing. See
Figure 38.

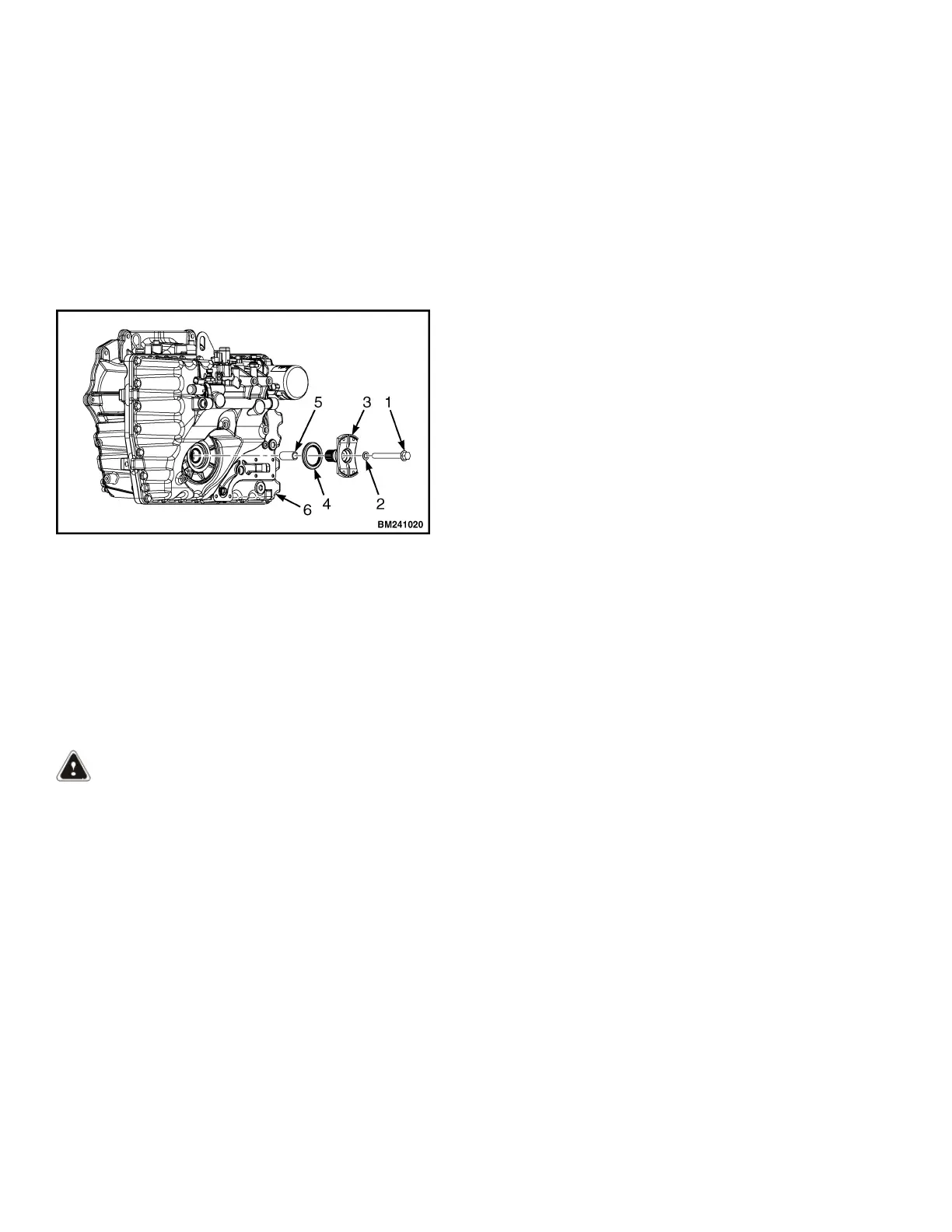

1. FLANGE HEAD CAPSCREW
2. STAT-O-SEAL
3. YOKE
4. OIL SEAL
5. SPACER
6. TRANSMISSION HOUSING
Figure 38. Drive Shaft Yoke
INSTALL
WARNING
The transmission is heavy. Make sure that any lift-
ing device has enough capacity to lift the weight.
The transmission can weigh approximately
83.8 kg (184.7 lb).
1. Using a lifting device, install transmission in lift
truck frame. Place a block under the transmission
housing to support the transmission.
2. Install oil seal on back of transmission housing.
See Figure 38.
3. Install new stat-o-seal on yoke. See Figure 38.
4. Install spacer, yoke, and flange head capscrew on
back of transmission housing. See Figure 38.
Tighten capscrew to 77 N•m (57 lbf ft).
5. Install isolators, snubbing washers, washer, and
capscrew on mounting bracket at the rear of the
transmission. See Figure 37. Tighten capscrew to
225 to 250 N•m (166 to 184 lbf ft).
6. Connect hydraulic hose to hydraulic gear pump
outlet port. See Figure 36.
7. Connect suction hose to hydraulic gear pump inlet
port. See Figure 36.
8. Install drain fitting on transmission housing. See
Figure 36.
9. Connect transmission cooling line to transmission.
See Figure 36.
10. Install seal plate for brake and throttle pedals.
See Figure 6.
11. Install engine in lift truck. See section Install, En-
gine Replacement for procedures.
12. Remove lifting device from eyebolt or eyebolt
bracket on transmission.
13. Fill transmission oil. For fill instruction, oil type,
and amount see the section Periodic Mainte-
nance 8000YRM1774.
Transmission Replacement 0100 YRM 1766
40
