INSTALL
1. Make sure the seals are on the counterweight. If
lifting eyebolts were removed from counterweight,
install washers, lifting eyebolts, and nuts into lift
holes on counterweight. See Figure 17.
2. Connect a crane to the lifting eyebolts and place
counterweight in position on lift truck frame. Make
sure hooks on frame fully engage counterweight
so it is aligned with the frame.
3. Install capscrew onto counterweight and frame.
See Figure 16 and Figure 17. Tighten capscrew
to 555 N•m (409 lbf ft).

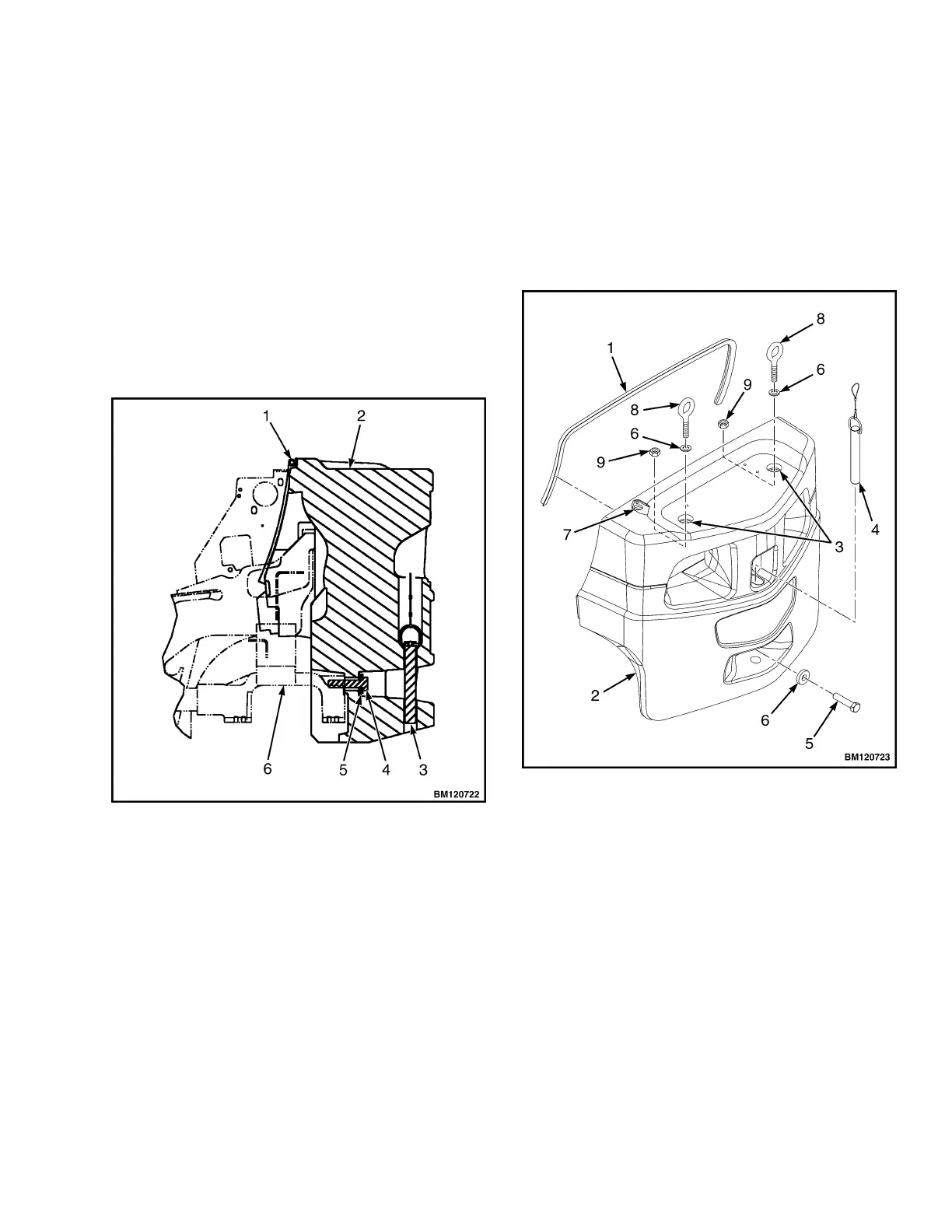

1. SEAL
2. COUNTERWEIGHT
3. TOW PIN
4. CAPSCREW
5. WASHER
6. FRAME
Figure 16. Counterweight Installation
4. Install tow pin onto counterweight.
NOTE: Perform Step 5 for lift trucks equipped with
LPG.
5. Use the procedures in Fuel System PSI 2.4L
0900YRM1757 to install the LPG tank and
bracket after the counterweight has been instal-
led.
1. SEAL
2. COUNTERWEIGHT
3. LIFT HOLE
4. TOW PIN
5. CAPSCREW
6. WASHER
7. LPG ACCESS HOLE
8. LIFTING EYEBOLT
9. NUT
Figure 17. Counterweight With Lifting Eyebolts
0100 YRM 1766 Counterweight Replacement
17
