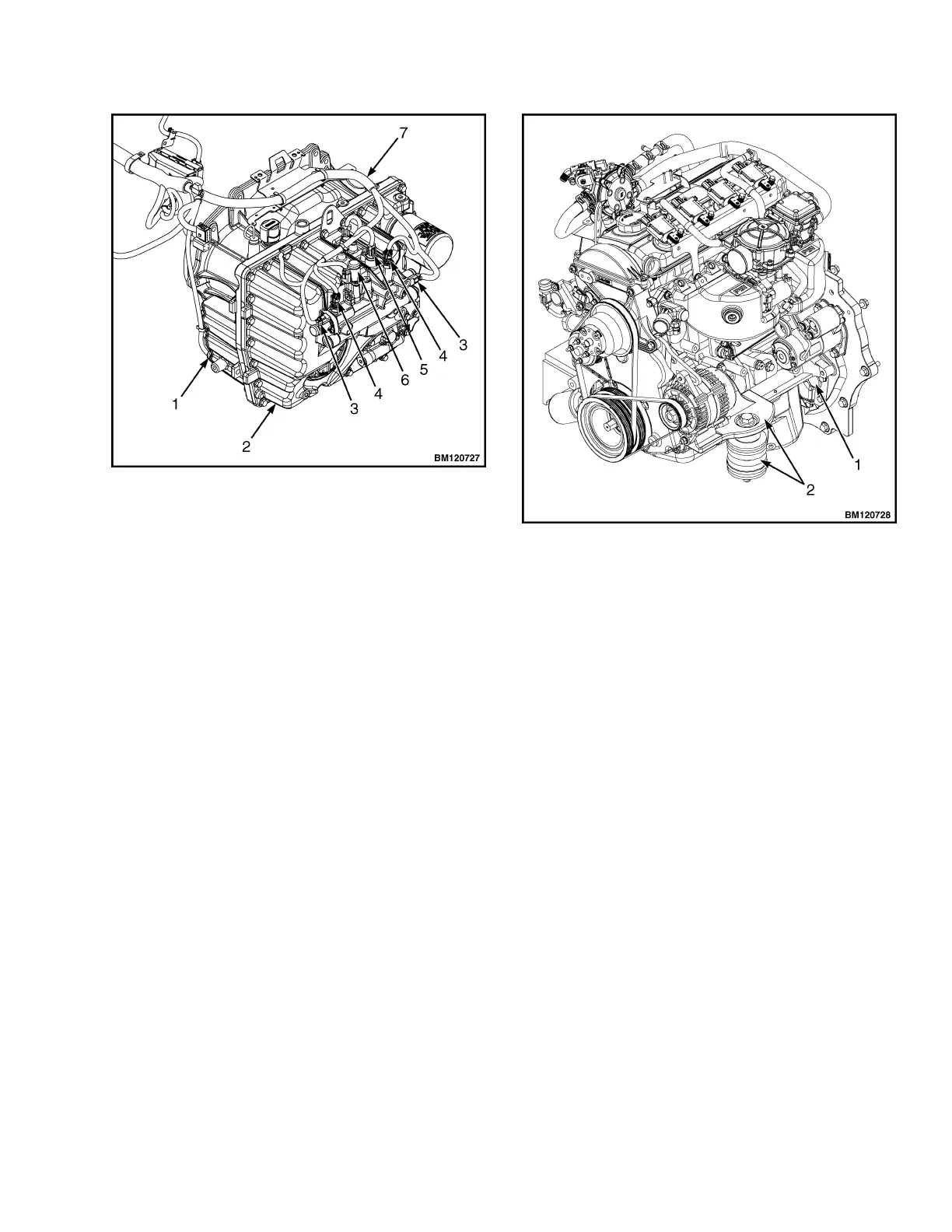

1. TEMPERATURE SENSOR CONNECTOR
2. TRANSMISSION HOUSING
3. PROPORTIONAL VALVE CONNECTOR
4. TRANSDUCER CONNECTOR
5. TRANSMISSION SENSOR PLUG
6. SOLENOID VALVE CONNECTOR
7. ENGINE WIRING HARNESS
Figure 24. Transmission Electrical Connectors
1. ACCESS PORT
2. ENGINE MOUNTING BRACKET AND HARD-
WARE
Figure 25. PSI Engine Removal Access Port
0100 YRM 1766 Engine Replacement
27
