RX-V1700/DSP-AX1700
18
RX-V1700/
DSP-AX1700
Optical cable
光ファイバーケーブル
Main unit
本機
DVD/CD player
DVD/CDプレーヤー
UPDATING FIRMWARE / ファームウェアーの書き込み
下記の部品をサービス部品に交換した場合、最新のファー
ムウェアの書き込みを行ってください。
DSPP.C.B.のIC540 :X8012A00
FUNCTIONP.C.B.のIC402 :X8337A00
D-VIDEOP.C.B.のIC147 :X8069A00
必要なツール
DVDまたはCDプレーヤー(DIGITALOUTPUT
(OPTICALまたはCOAXIAL)端子付き)
光ファイバーケーブル(OPTICAL端子使用時)
デジタル音声ピンケーブル(COAXIAL端子使用時)
最新ファームウェアCD
操作方法
1. 本機とDVD/CDプレーヤーを下記のように接続しま
す。(Fig.1)

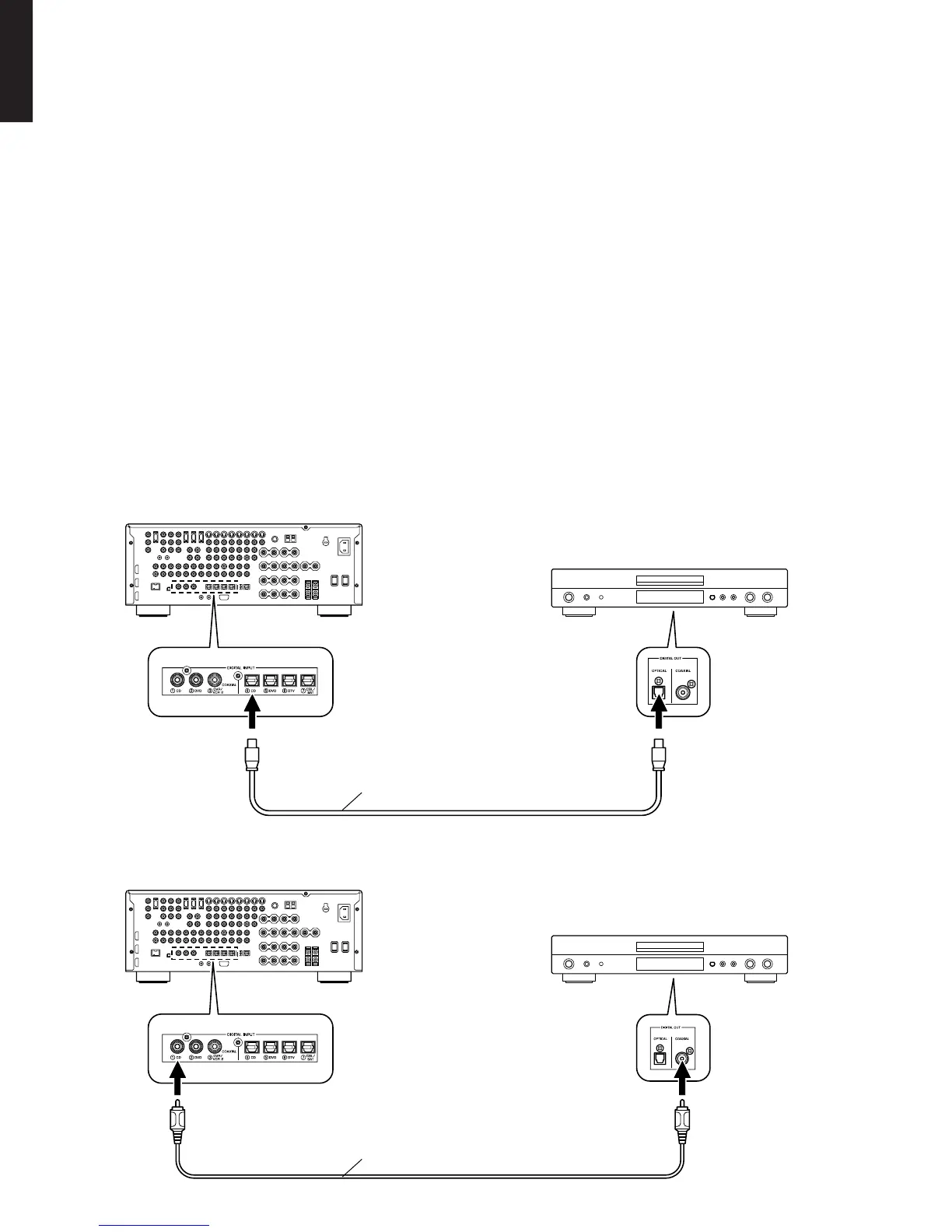

Fig. 1
Example of OPTICAL terminal / OPTICAL端子使用例
Example of COAXIAL terminal / COAXIAL端子使用例
When replacing the following parts, be sure to write the
latest firmware.
IC540 of DSP P.C.B. : X8012A00
IC402 of FUNCTION P.C.B.: X8337A00
IC147 of D-VIDEO P.C.B. : X8069A00
Required tools
DVD or CD player (with DIGITAL OUTPUT (OPTI-
CAL or COAXIAL) terminal)
Optical cable (when OPTICAL terminal is used)
Digital audio pin cable (when COAXIAL terminal is
used)
Firmware CD
Operation Procedures
1. Connect the main unit and DVD/CD player as shown
below. (Fig. 1)
Digital audio pin cable
デジタルピンケーブル
Main unit
本機
DVD/CD player
DVD/CDプレーヤー
