RX-V1700/DSP-AX1700
43
RX-V1700/
DSP-AX1700
YES
NO
High = YES
Low = No
Low = installed / 装着
High = not installed / 非装着
Check item / チェ Judgment/ 判定 Display / 表示
Y
N
Y
N
Y
N
14.iPod

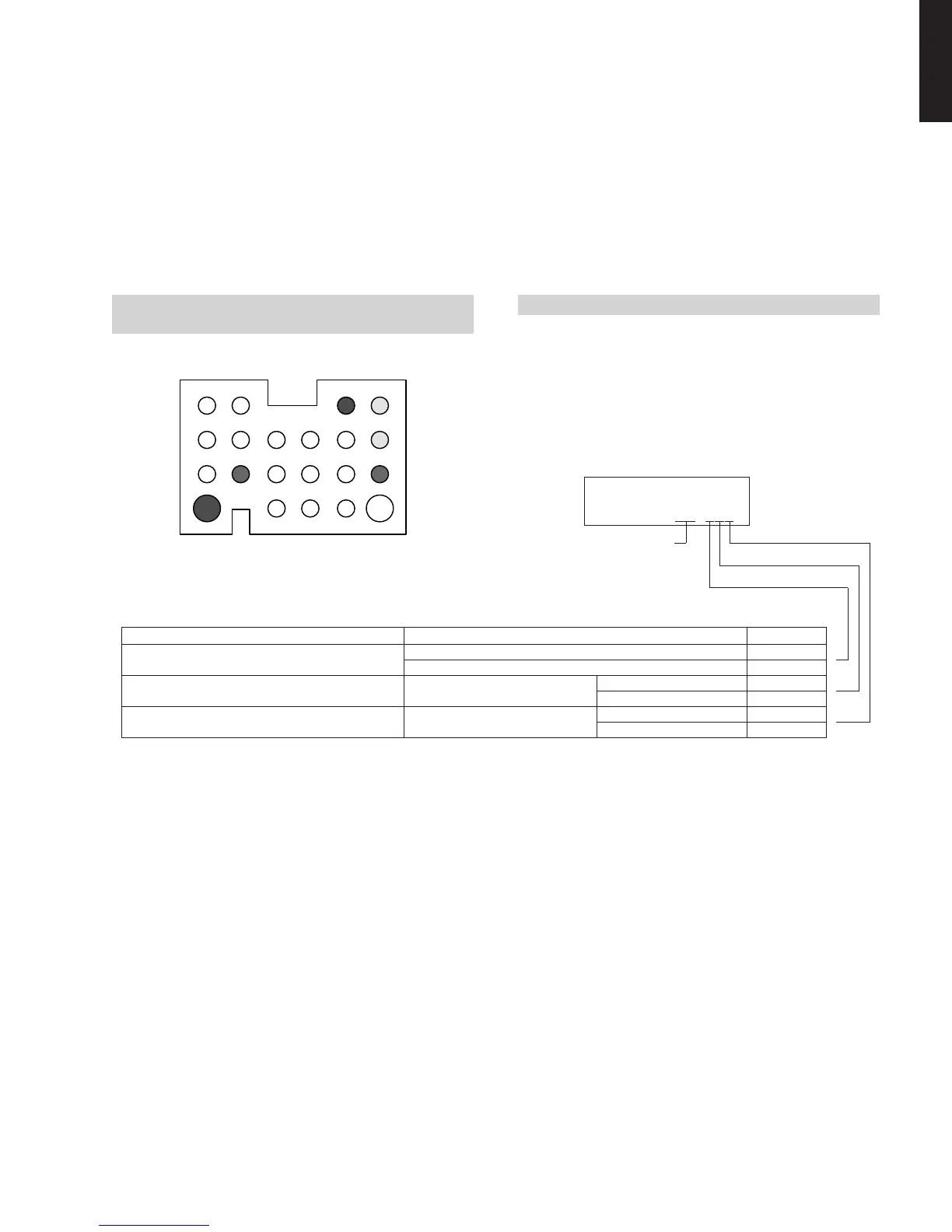

This menu is used to test the DOCK connector without
the iPod itself. After turning off the power, short be-
tween pins No. 14 (TX) and No. 18 (RX), between pins
No. 1 (PWR) and No. 17 (ACCPOW) and between pins
No. 4 (iPDET) and No. 8 (DGND). (Make sure that the
power is turned off when shorting pins.)
Start the DIAG function and select the menu.
The check result is displayed according to the follow-
ing display specifications.
DOCK
14.iPod
iPod本体無しで、DOCKコネクタの検査を行うメ
ニューです。
パワーオフ状態にしてから、DOCKコネクタの14ピン
(TXと18ピン(RX、1ピンPWR)と17ピン
ACCPOW)、4ピン(iPDET)と8ピン(DGND)をショー
トさせます。(ショートさせる時は、必ず電源を切って
ください。)
ダイグを起動してメニューを選択します。
下記表示仕様に従って、チェック結果が表示されま
す。
注)ショート箇必ず元に戻Note) Be sure to return the shorted locations to their
original state.
All Y / 全てY = OK
Others / その他 = NG
Is UART loop pack check result OK? /
UARTループバク結果OK?
Is detect function of iPod Accessory Power OK? /
iPodAccessoryPowerの検出機能はOK
Is detect function of iPod installation to DOCK OK? /
DOCKへのiPod装着の検出機能はOK
IC2 (DSP P.C.B.) pin No. 45 state
IC2(DSPP.C.B.)45pinの状態
IC2 (DSP P.C.B.) pin No. 44 state
IC2(DSPP.C.B.)44pinの状態
1 2
19
3 4 56 78
91011121314
15 16 17 18
20 21
14.iPod CHECK
DOCK: NG NNN
