EFFECT functions
168 PM5D/PM5D-RH V2 / DSP5D Owner’s Manual Reference section

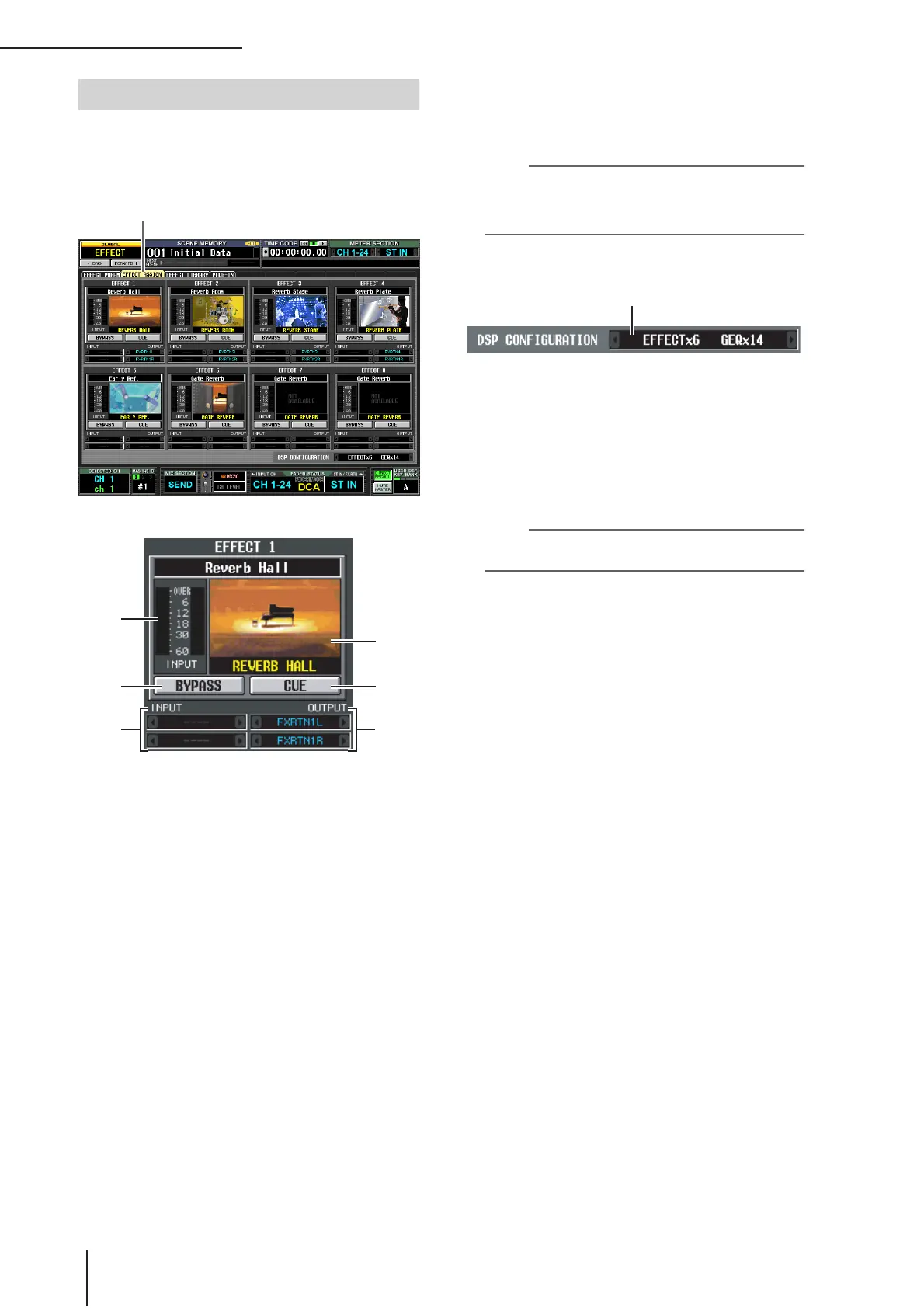

This screen lists the effect types used by internal effects 1–8,
and shows their input levels.. Here you can also assign sig-
nals to input/output channels, and make settings for
bypass and cue.
A Level meter
Indicates the input level to the effect.
B Effect type
Indicates the selected effect type, both by name and as a
graphic. When you click this area, the EFFECT
PARAM screen will appear. You can also drag and
drop this area onto another effect in this screen to copy
the effect settings.
C BYPASS
This button temporarily bypasses the effect.
D CUE
This button cue-monitors the effect output. Cue is
automatically defeated when you switch to a different
screen. (However, cue will be held if you switch to the
EFFECT PARAM screen of the corresponding effect.)
E Input patch
This box indicates the signal path that is patched to the
L/R input channels of the internal effect. You can also
directly assign the signal path in this box.
F Output patch
This box indicates the signal path that is patched to the
L/R output channels of the internal effect. You can also
directly assign the signal path in this box.
Note
Even if you’ve patched multiple channels in the INPUT
PATCH/OUTPUT PATCH function INSERT PATCH screen,
changing the input/output patch in this screen will turn off
patching to other channels.
G DSP CONFIGURATION
This box lets you change the number of assignments
for the internal effects and GEQ modules. If you
decrease the number of internal effects, the number of
available GEQ modules will increase by one. The num-
ber of internal effects can be changed between eight
units (twelve GEQ modules) to zero available internal
effects (twenty GEQ modules).
Note
If you change the DSP CONFIGURATION setting, the inter-
nal effects or GEQ modules may be muted briefly.
EFFECT ASSIGN screen
EFFECT ASSIGN
1
3
5
4
6
2
7
