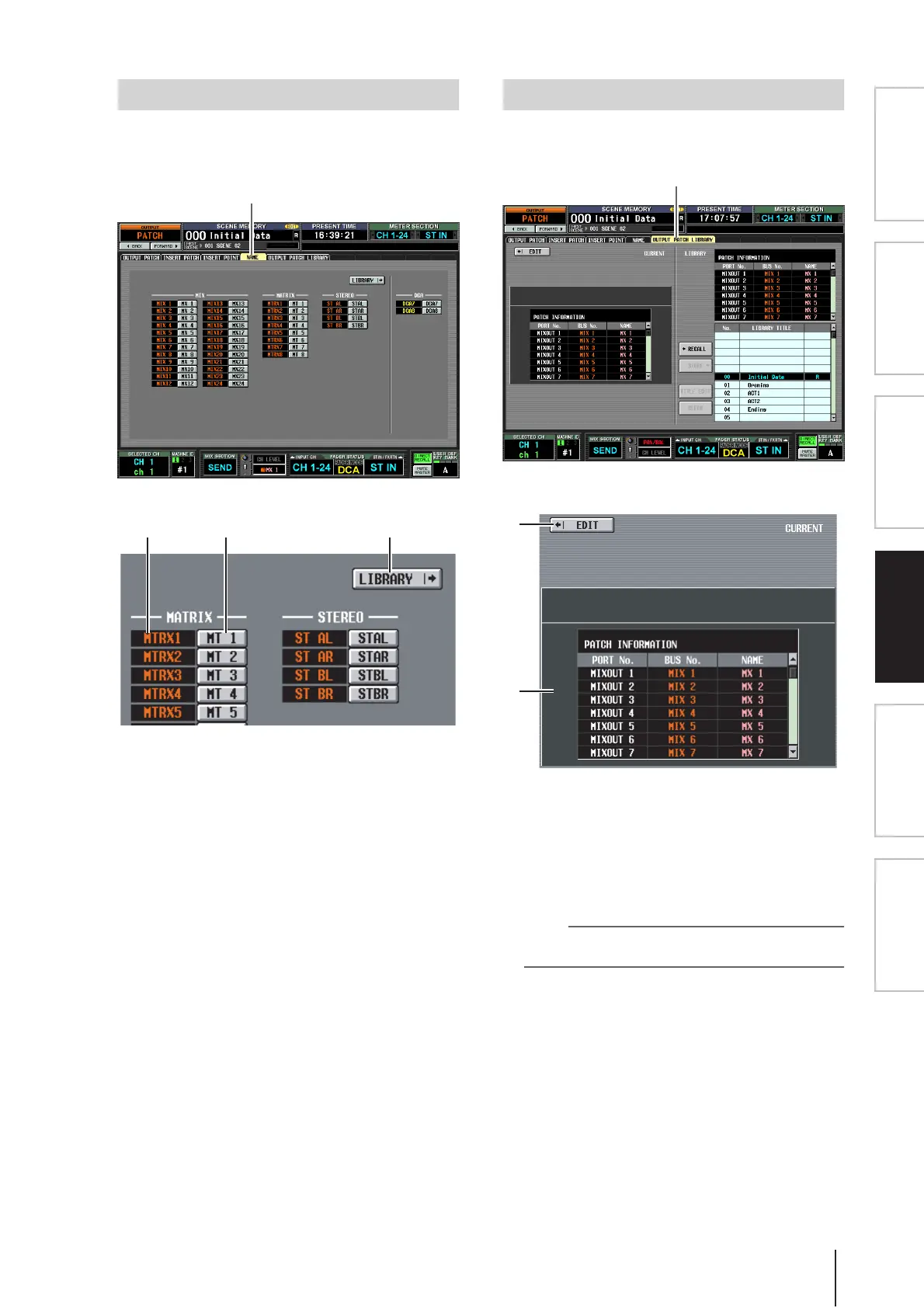

Here you can assign names to the output channels. How-
ever, display in the CH COPY, GLOBAL PASTE, and CSV
IMPORT/EXPORT functions is not supported.
A Channel
This is the number of the output channel (MIX chan-
nel, MATRIX channel, or STEREO A/B channel).
B Name
This is the name currently assigned to the output chan-
nel. When you click the name area, a window will
appear, allowing you to assign a name to the channel.
C LIBRARY
This button displays the OUTPUT PATCH LIBRARY
screen (➥ p.247) where you can store or recall the state
of the output channel patching (and names) as library
data.
Here you can recall, store, rename, or delete items in the
output patch library.
A EDIT
When you click this button, the OUTPUT PATCH
screen will appear.
B Patch information for the current scene
This area shows the output patch settings for the cur-
rent scene.
Note
If a DSP5D (machine #2 or #3) is selected as the target of
control, this information will not be displayed.
NAME screen
NAME
1 2 3
OUTPUT PATCH LIBRARY screen
OUTPUT PATCH LIBRARY
1
2
