PM5D/PM5D-RH V2 / DSP5D Owner’s Manual Operating section 19
2

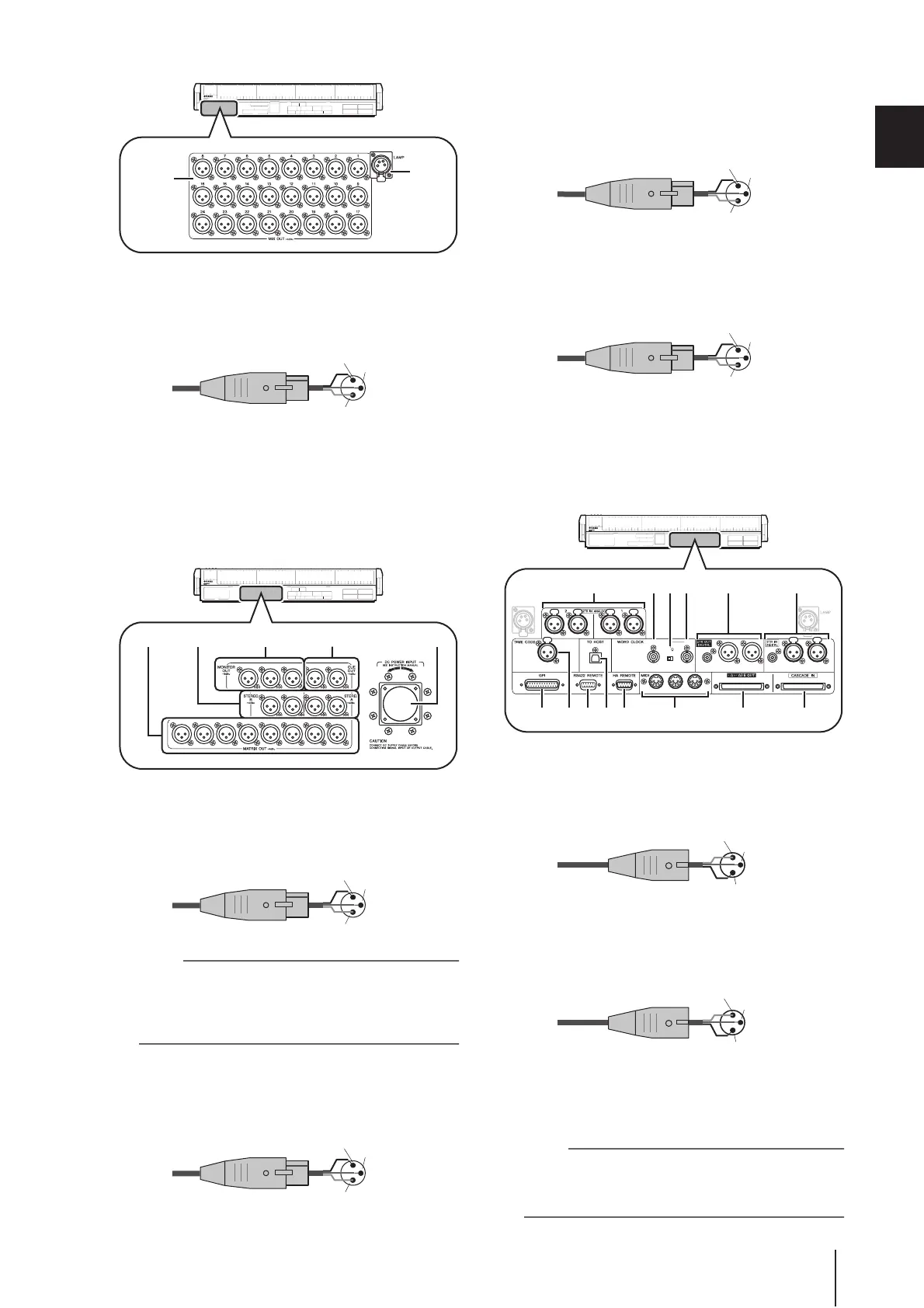

Top, front, and rear panels
G MIX OUT jacks
These are XLR-3-32 (balanced) jacks that output ana-
log signals such as those that are patched from MIX
channels 1–24. Nominal output level is +4 dBu.
H LAMP connector
This is a four-pin female XLR output jack for supply-
ing power to a gooseneck lamp. (These jacks are
provided at three locations). The location of these jacks
differs between the PM5D model and the PM5D-RH
model.
I MONITOR OUT jacks
These are XLR-3-32 (balanced) jacks that output the
monitor signal selected in the MONITOR section of
the top panel. Nominal output level is +4 dBu.
Note
Although the various output jacks and 2TR IN ANALOG jacks
have a nominal input/output level of +4 dBu (maximum level is
+24 dBu), an internal switch allows this to be changed to
–2 dBu (maximum level +18 dBu) if necessary. For details,
contact your Yamaha dealer.
J CUE OUT jacks
These are XLR-3-32 (balanced) jacks that output the
cue monitor signal from the channel selected by its
[CUE] key. Nominal output level is +4 dBu.
K STEREO OUT A/B jacks
These are XLR-3-32 (balanced) jacks that output the
analog signals of the STEREO A/B channels. Nominal
output level is +4 dBu.
L MATRIX OUT jacks
These are XLR-3-32 (balanced) jacks that output the
analog signals of MATRIX channels 1–8. Nominal out-
put level is +4 dBu.
M DC POWER INPUT connector
This is a connector for connecting the PW800W power
supply. Use the dedicated cable included with the
PM5D to make the connection.
N 2TR IN ANALOG jacks 1/2
These are XLR-3-31 (balanced) jacks that input stereo
analog signals from an external source. Nominal input
level is +4 dBu.
O TIME CODE INPUT jack
This is an XLR-3-31 (balanced) jack that receives
SMPTE time code (LTC) from an external source.
P TO HOST connector
This is a USB (type B) connector that allows communi-
cation with a computer.
Note
PM5D Editor and the USB-MIDI driver required for connection
with your computer can be downloaded from the Yamaha
website listed below.
http://www.yamahaproaudio.com/
7
8
Female XLR plug
2 (hot)
1 (ground)
3 (cold)
C
RLRL
RLRL
87654321
MJ9KL
Female XLR plug
2 (hot)
1 (ground)
3 (cold)
Female XLR plug
2 (hot)
1 (ground)
3 (cold)
Female XLR plug
2 (hot)
1 (ground)
3 (cold)
Female XLR plug
2 (hot)
1 (ground)
3 (cold)
IN
R
L
R
L
SMPTE
USB
OUT IN
75
ON OFF
21
COAXIAL COAXIALAES/EBU AES/EBU AES/EBU AES/EBU
3
21
3
THRU OUT IN
N X YVUT
Q R S Z aWPO
Male XLR plug
1 (ground)
2 (hot)
3 (cold)
Male XLR plug
1 (ground)
2 (hot)
3 (cold)
