6 Output channel operations
60 PM5D/PM5D-RH V2 / DSP5D Owner’s Manual Operating section

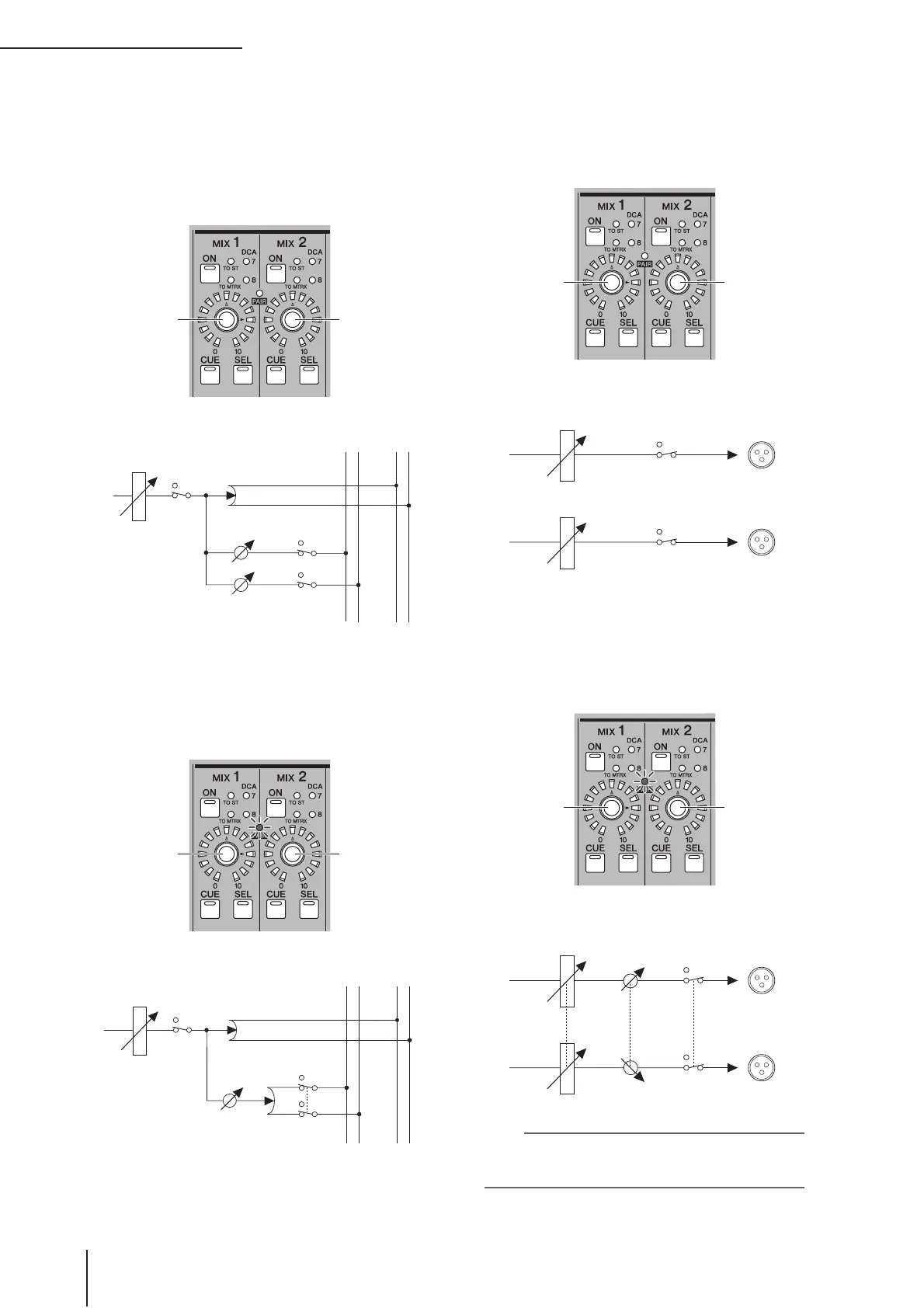

Signals sent from an input channel to a
VARI type MIX bus
• If the VARI type MIX bus is not paired
When the [MIX SEND] key is on, the MIX encoders
will adjust the send level of the signals sent to the corre-
sponding MIX bus from the currently selected input
channel.
• If the VARI type MIX bus is paired
When the [MIX SEND] key is on, MIX encoders of
odd-numbered channels will adjust the pan of the sig-
nal sent to the two MIX buses. MIX encoders of even-
numbered channels will adjust the shared send level for
the two MIX buses.
MIX channel output signals
• If MIX channels are not paired
When the [MIX MASTER] key is on, the MIX encod-
ers will adjust the output level of the corresponding
MIX channels.
• If MIX channels are paired
When the [MIX MASTER] key is on, the MIX encod-
ers of odd-numbered channels will adjust the volume
balance between paired MIX channels. The MIX
encoders of even-numbered channels will adjust the
shared level of the two paired channels.
Hint
MIX channel pairing status and output level/balance settings
can also be edited in the CH to MIX screen (
➥ p.299) or
MATRIX/ST screen ( ➥ p.262).
MIX bus 1
SEND LEVEL
MIX bus 2
SEND LEVEL
MIX1 MIX2 STEREO L STEREO R
……
……
FADER
INPUT CHANNEL
ON
ON
ON
PAN
MIX1 (VARI)
LEVEL
MIX2 (VARI)
LEVEL
LEVEL
MIX bus 1/2
SEND PAN
MIX bus 1/2
SEND LEVEL
MIX1 MIX2 STEREO L STEREO R
……
……
FADER
INPUT CHANNEL
ON
ON
PAN
PAN
MIX1/2 (VARI)
LEVEL
MIX channel 1
OUTPUT
LEVEL
MIX channel 2
OUTPUT
LEVEL
OUTPUT LEVEL
MIX OUT 1
MIX 1
MIX CHANNEL
ON
OUTPUT LEVEL
MIX OUT 2
MIX 2
ON
MIX channel
1/2 BALANCE
MIX channel
1/2 OUTPUT
LEVEL
OUTPUT LEVEL
MIX OUT 1BALANCE
MIX 1
MIX CHANNEL
ON
MIX OUT 2
MIX 2
