DTX-MULTI 12

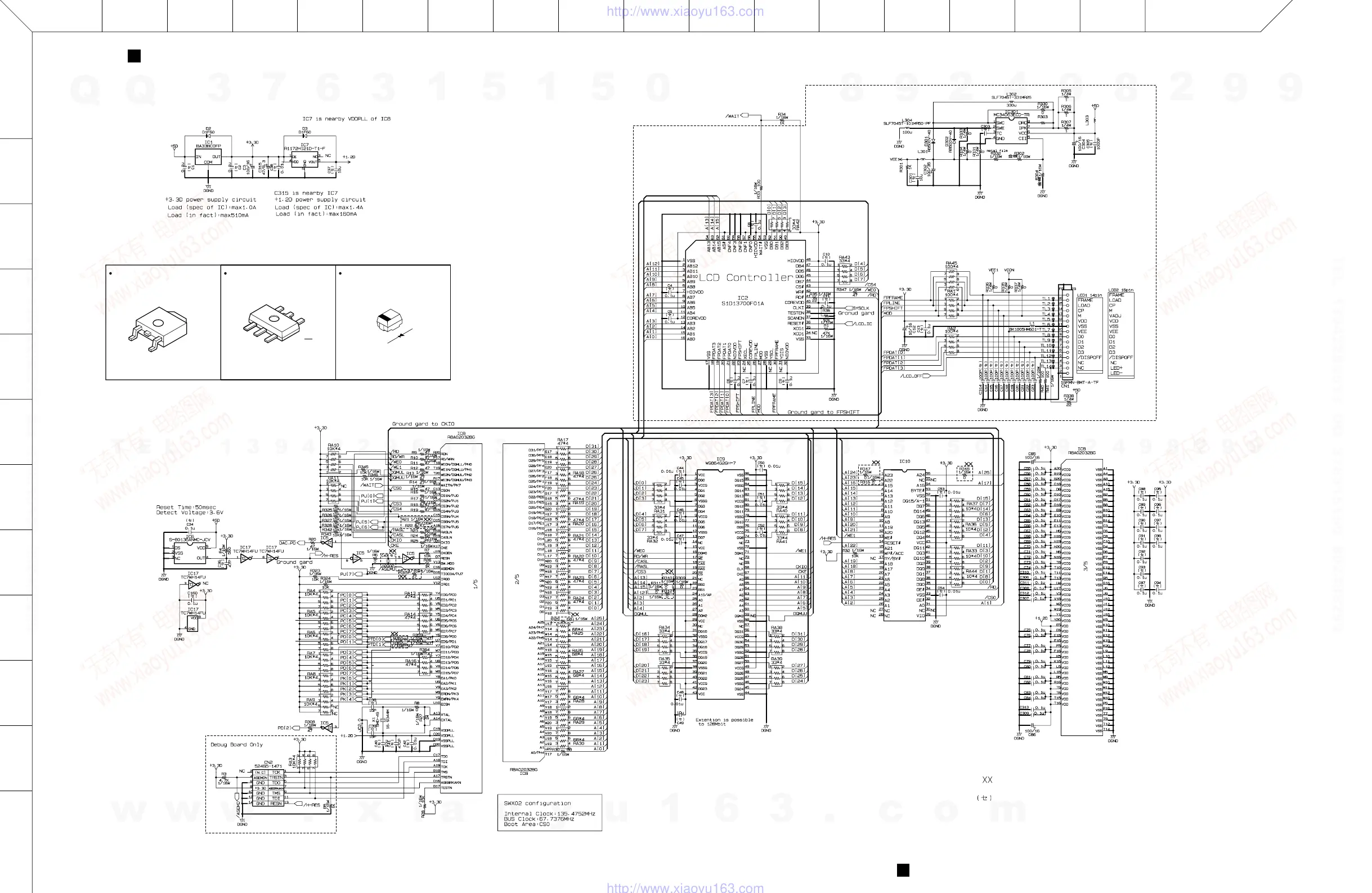

DM CIRCUIT DIAGRAM 1/2 (001) (DTX-MULTI 12)
DM CIRCUIT DIAGRAM 1/2 (001) (DTX-MULTI 12)28CC1-2001051725-14
BA33BC0FP (X5889A0R)
REGULATOR +3.3V
DM: IC1
1. INPUT
2. GND
3. OUTPUT
1
2
3
1: CE or CE
2: GND
3: NC
4: VDD
5: VOUT
R1172H121D-T1-F (X9292A00)
REGULATOR +1.2V
DM: IC7
1
2
3
4
5
D1F60 (VS20110R)
DIODE 1.0A 600V
DM: D2, D3
1: ANODE
2: CATHODE
2
1
<002 G-9>
<002 G-8>
<002 D-10>
<002 G-8>
<H-1>
<F-8, N-12,
002 N-10,
002 D-11>
<O-12>
<M-8>
<N-8>
<N-8>
<002 D-10>
<002 J-1>
<002 J-2>
<002 J-2>
<002 D-11>
<M-7>
<002 M-7>
<002 N-8>
<002 N-8>
: Not installed（未実装）
REGULATOR +3.3V
REGULATOR +1.2V
SYSTEM RESET
INVERTER
CPU (SWX02) CPU (SWX02)
CPU (SWX02)
FLASH ROM 64M PROG.SDRAM 64M
INVERTER
INVERTER
Not installed
Not installed
