5-19
E
POWR

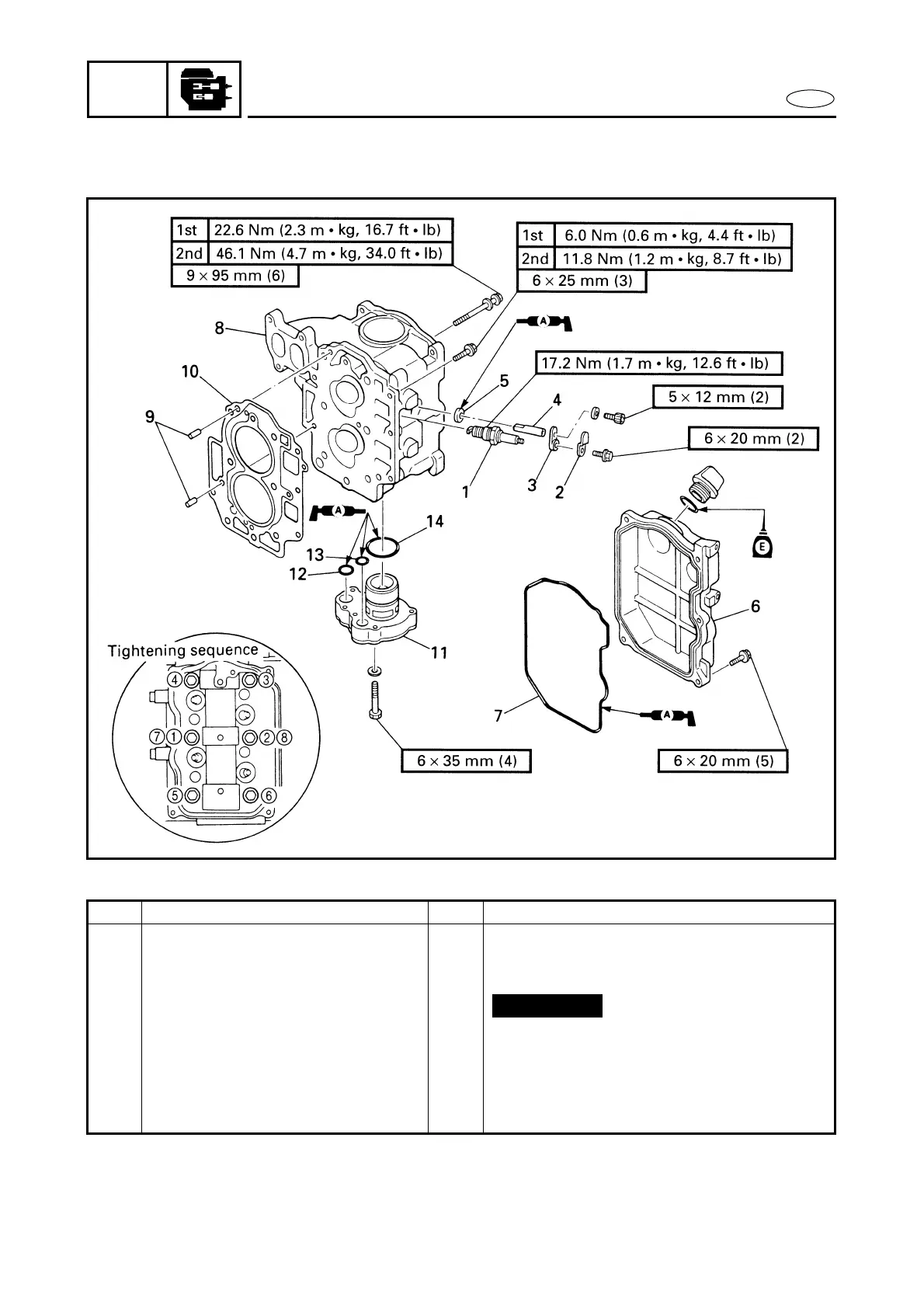

CYLINDER HEAD AND OIL PUMP
EXPLODED DIAGRAM
Step
Procedure/Part name
Q’ty
Service points
7
Rubber gasket
1
8
Cylinder head
1
9
Dowel pin
2
10
Gasket
1
11
Oil pump
1
12
O-ring
1
33.0
×
1.9 mm
13
O-ring
1
13.5
×
1.8 mm
14
O-ring
1
11.5
×
1.2 mm
Reverse the removal steps for installation.
Not reusable
151
