6-8
E
LOWR

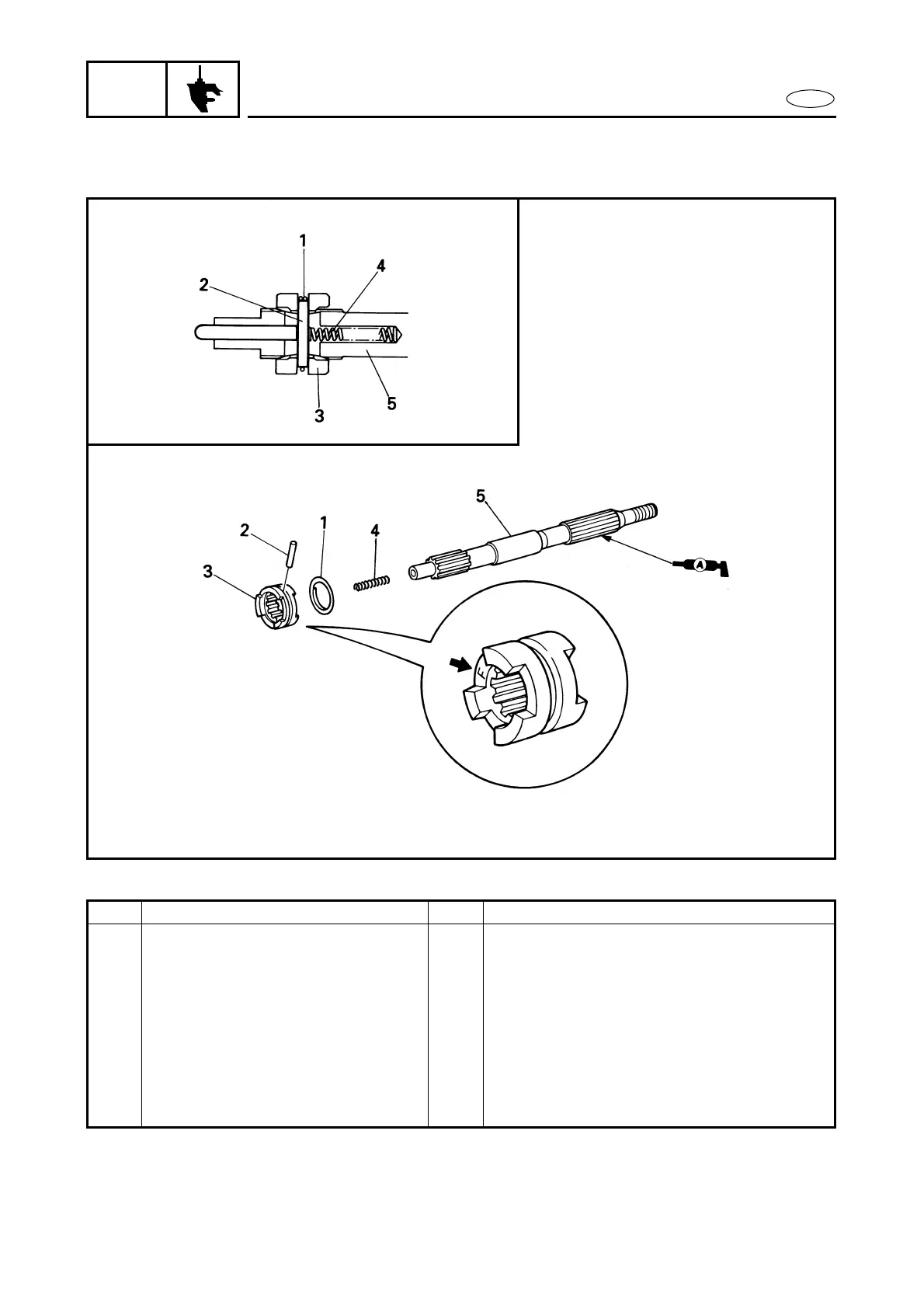

PROPELLER SHAFT ASSY.
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
PROPELLER SHAFT ASSY.
DISASSEMBLY
Follow the left “Step” for removal.
1
Cross pin ring
1
2
Cross pin
1
3
Dog clutch
1
4
Spring
1
5
Propeller shaft
1
Reverse the disassembly steps for instal-
lation.
