7-
F
BRKT
41

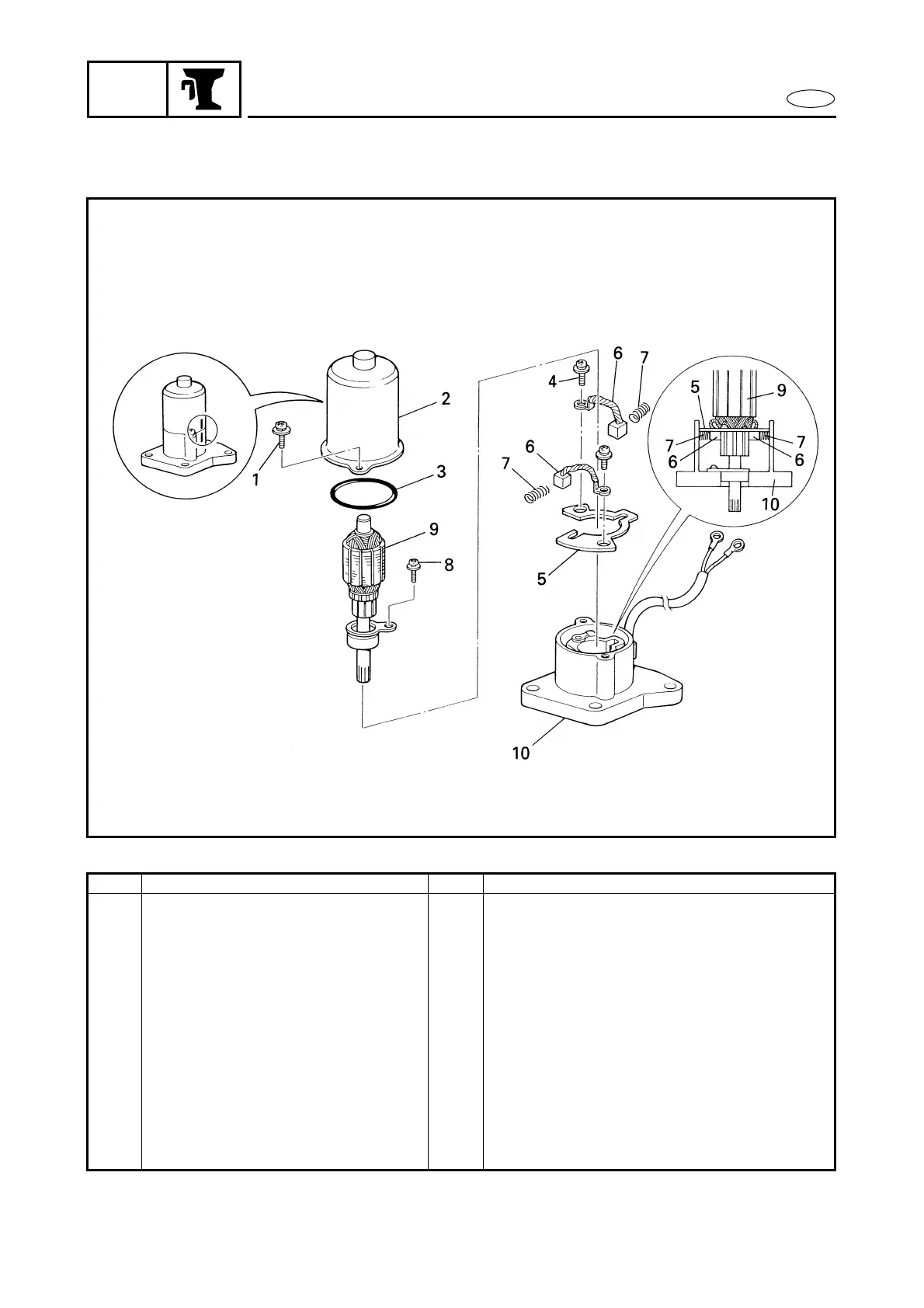

MOTEUR PTT
VUE EN ECLATE
TABLEAU DE DEPOSE ET D’INSTALLATION
Etape
Procédé/nom de pièce
Q’té
Remarques particulières
DEMONTAGE DU MOTEUR
D’INCLINAISON ET D’ASSIETTE
ASSISTEES (PTT)
Suivre l’“étape” de gauche pour le démontage.
1
Vis
2
2
Stator
1
3
Joint torique
1
49,5
×
2,0 mm
4
Vis
2
5
Support de balai
1
6
Balai
2
7
Ressort à balai
2
8
Vis
1
9
Induit
1
10
Base de moteur PTT
1
Pour l’installation, inverser les étapes du démontage.
