7-
D
BRKT
42
PTT-MOTOR

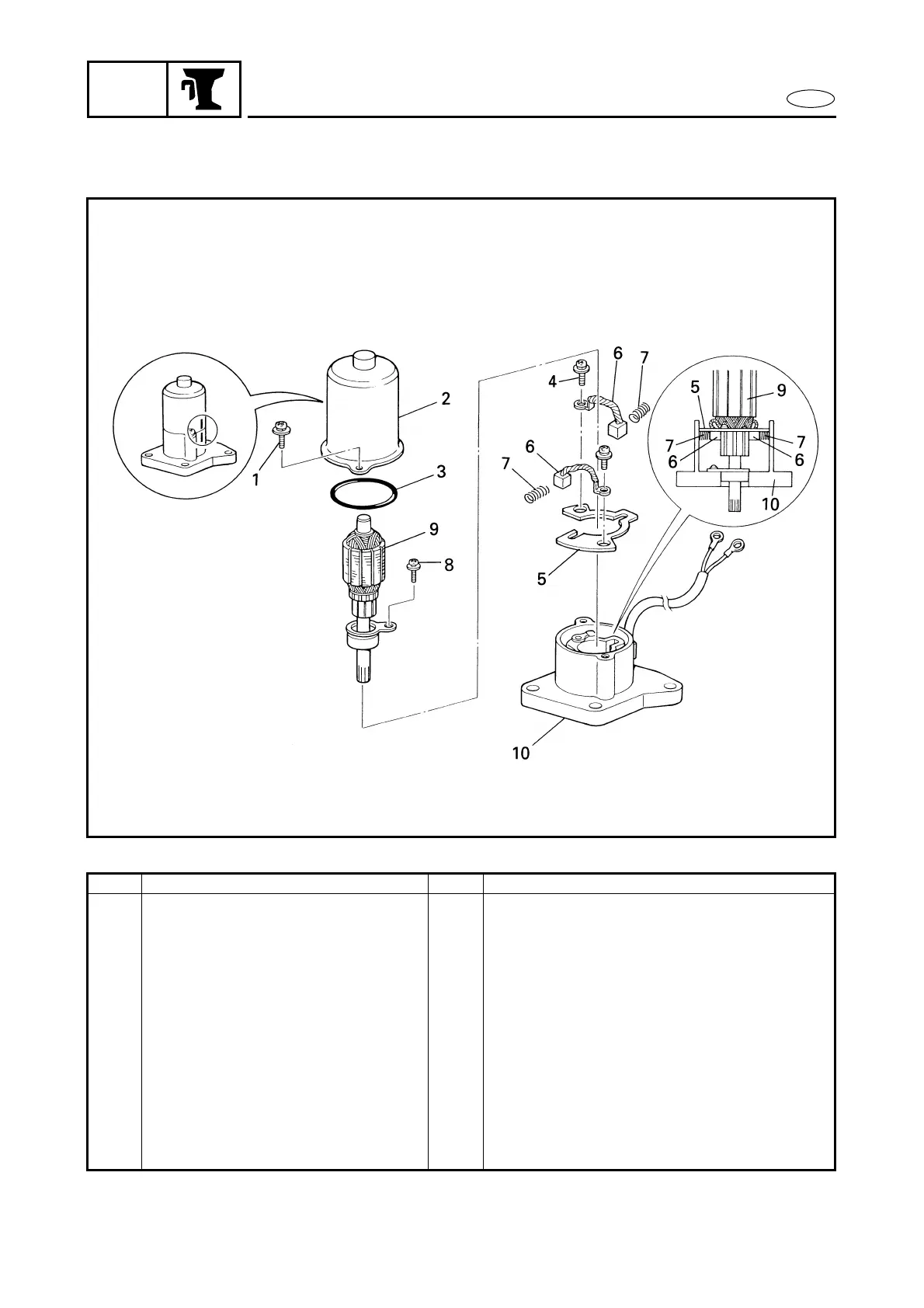

EXPLOSIONSZEICHNUNG
AUSBAU- UND EINBAUTABELLE
Schritt
Verfahren/Teilebezeichnung
Anzahl
Wartungspunkte
PTT-MOTOR ZERLEGEN
Zerlegung in der angegebenen Reihenfolge durch-
führen.
1
Schraube
2
2
Stator
1
3
O-Ring
1
49,5
×
2,0 mm
4
Schraube
2
5
Bürstenhalter
1
6
Bürsten
2
7
Bürstenfeder
2
8
Schraube
1
9
Anker
1
10
PTT-Motorplatte
1
Der Zusammenbau erfolgt in umgekehrter Reihen-
folge.
PTT-MOTOR
31
347
