Ins Connect (Insertion Connection Type)
Determines the effect routing for Insertion Effects A and B.
Settings: Parallel, Ins AB, Ins BA
RevSend (Reverb Send)
VarSend (Variation Send)
Determines the Send level of the signal sent from Insertion Effect A/B (or the bypassed signal) to the
Reverb/Variation effect. This is active only when the Part Output/Drum Key Output is set to “MainL&R.”
Settings: 0–127
Part Output (Part Output Select)
Determines the specific output for the audio signal.
Settings: MainL&R, USB1&2…USB7&8, USB1…USB8, Off, Drum
MainL&R: Outputs in stereo (two channels) to the OUTPUT [L/MONO]/[R] jacks.
USB1&2…USB7&8: Outputs in stereo (Channels 1&2–7&8) to the [USB TO HOST] terminal.
USB1…USB8: Outputs in mono (Channels 1–8) to the [USB TO HOST] terminal.
Off: No audio signal for the Part is output.
Drum: “Drum Key Out” is displayed to determine the specific output for each Drum Key.
Envelope Follower
Calls up the Envelope Follower Setting display.

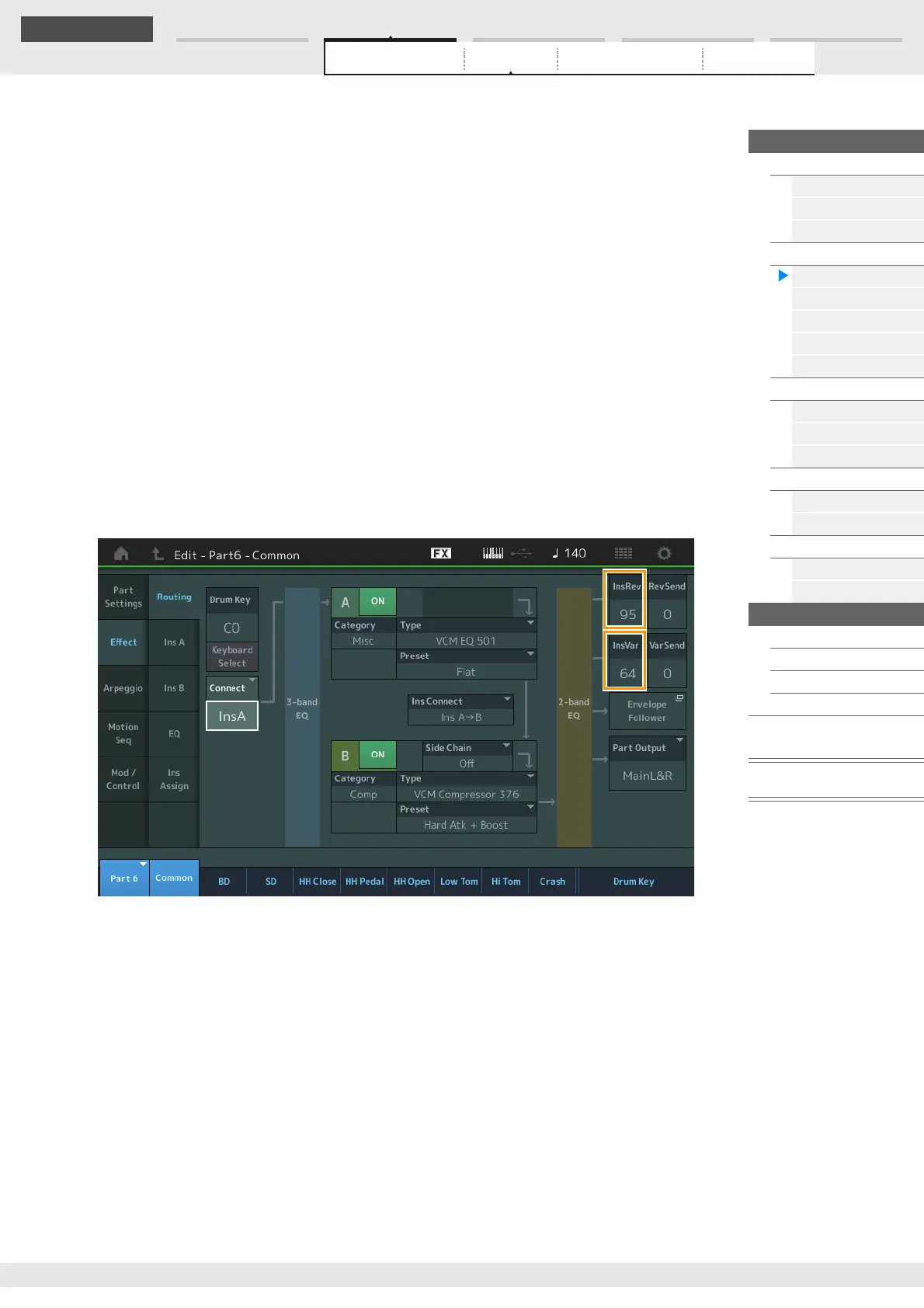

Refer to the Routing display (page 76) for Normal Parts (AWM2).
InsRev (Insertion Reverb Send)
InsVar (Insertion Variation Send)
Determines the Send level for the entire Drum Part (all keys), sent from Insertion Effect A/B to the Reverb/
Variation effect.
This is active only when the Drum Key Connection Switch is set to “InsA” or “InsB” and the Part Output/
Drum Key Output is set to “MainL&R.”
Settings: 0–127
