Yamaha MX800V - Checking the Spark Plug Caps; Checking the Stator Coil Assembly

5-7
1
2
3
4
5
6
7
8
9
10
ELECTRICAL
ELECTRICAL COMPONENTS
CHECKING THE SPARK PLUG CAPS
The following procedure applies to all of the spark plug
caps.
1. Remove:
• Spark plug cap
2. Check:
• Spark plug cap resistance
Out of specification  Replace the spark plug cap.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the spark plug cap from the high tension
cord.

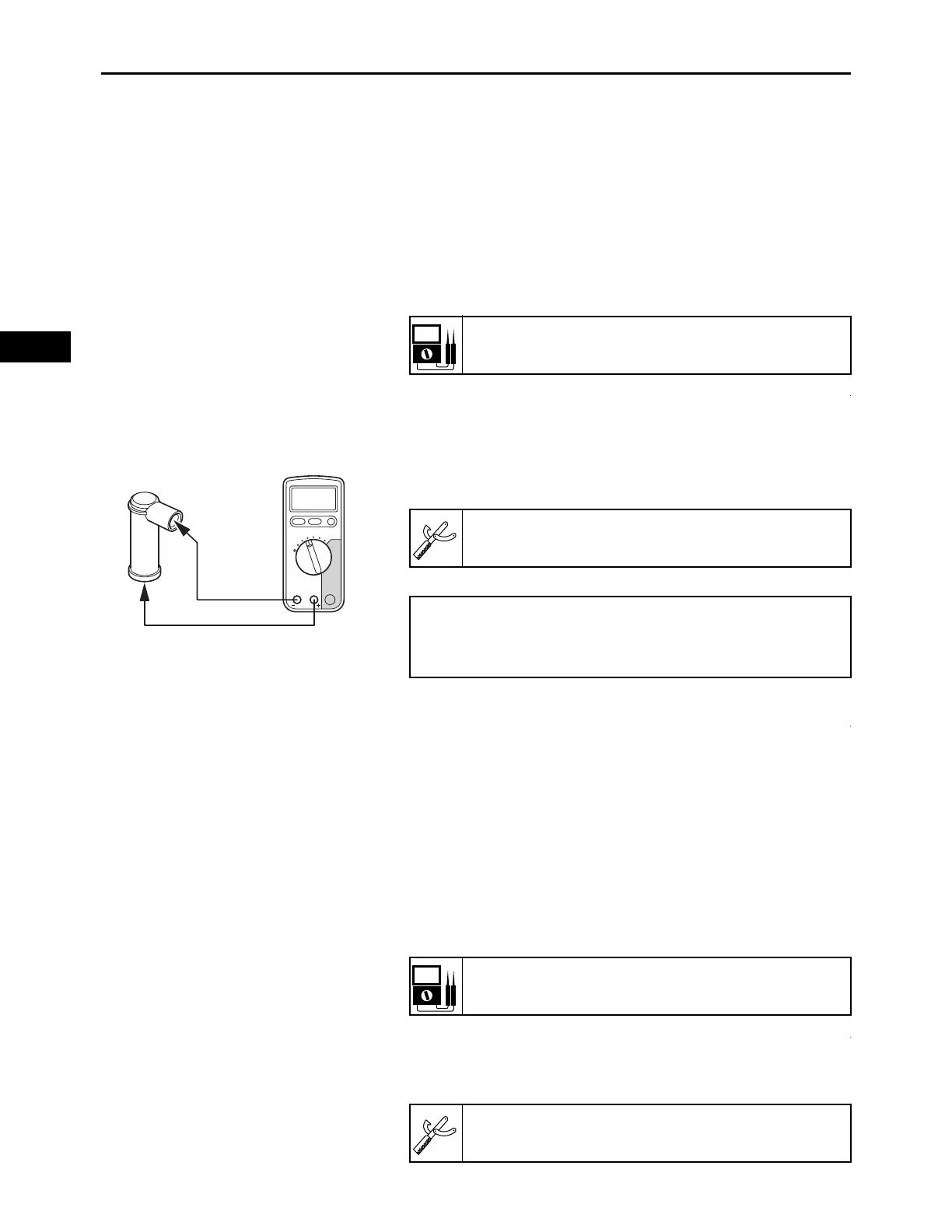

b. Connect the digital circuit tester () to the spark
plug cap as shown.
c. Measure the spark plug cap resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
CHECKING THE STATOR COIL ASSEMBLY
1. Disconnect:
• Stator coil connector
(from the wire harness)
2. Check:
• Stator coil resistance
Out of specification  Replace the stator coil
assembly.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the digital circuit tester to the stator coil
connector as shown.
Spark plug cap resistance:
3.75–6.25 k
1
2
Model 88 Multimeter with tachometer:
YU-A1927
• Positive tester probe 
Spark plug side “1”
• Negative tester probe 
High tension cord side “2”
Stator coil resistance:
25 A: 0.096–0.144  at 23 C (73.4 F)
Model 88 Multimeter with tachometer:
YU-A1927
