FUEL

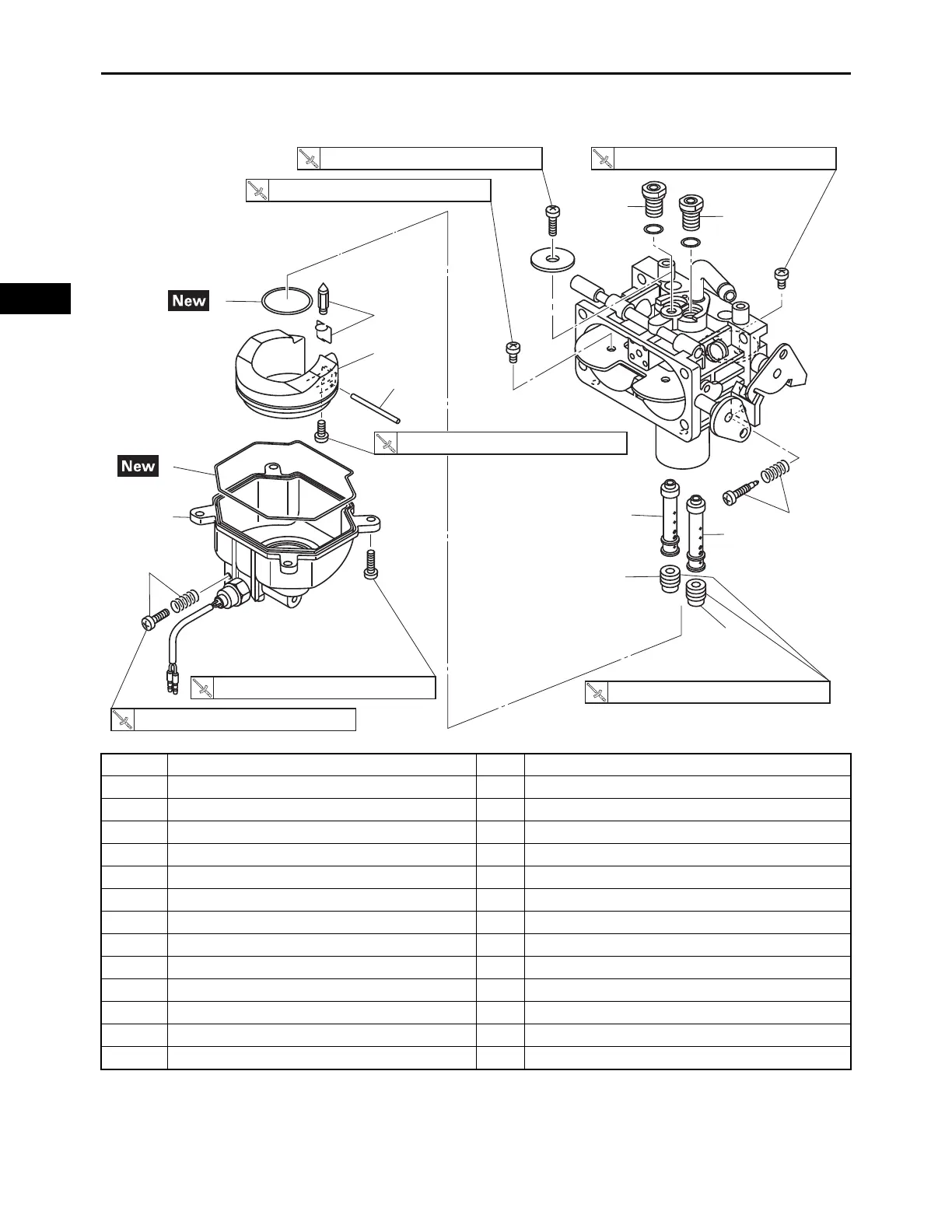

CARBURETOR ASSEMBLY
DISASSEMBLING THE CARBURETOR
Order Job/Parts to remove Q’ty Remarks
Disassembling the carburetor Disassemble the parts in the order listed.
1 Drain screw/Spring 1/1
2 Float chamber 1
3Gasket 1
4Float pin 1
5Float 1
6 Needle assembly 1
7Gasket 1
8 Main jet 1 Right
9 Main jet 1 Left
10 Main nozzle 2
11 Throttle stop screw/Spring 1/1
12 Pilot jet 2
1
2
3
4
5
7
6
12
12
10
10
8
9
11
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
1.6 N・m (0.16 kgf・m, 1.2 lb・ft)
1.4 N・m (0.14 kgf・m, 1.0 lb・ft)
1.4 N・m (0.14 kgf・m, 1.0 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
1.6 N・m (0.16 kgf・m, 1.2 lb・ft)
1.0 N・m (0.10 kgf・m, 0.73 lb・ft)
