Yamaha MX800V - Removing the Carburetor Assembly; Checking the Carburetor Assembly; Installing the Carburetor Assembly

4-5
1
2
3
4
5
6
7
8
9
10
FUEL
CARBURETOR ASSEMBLY

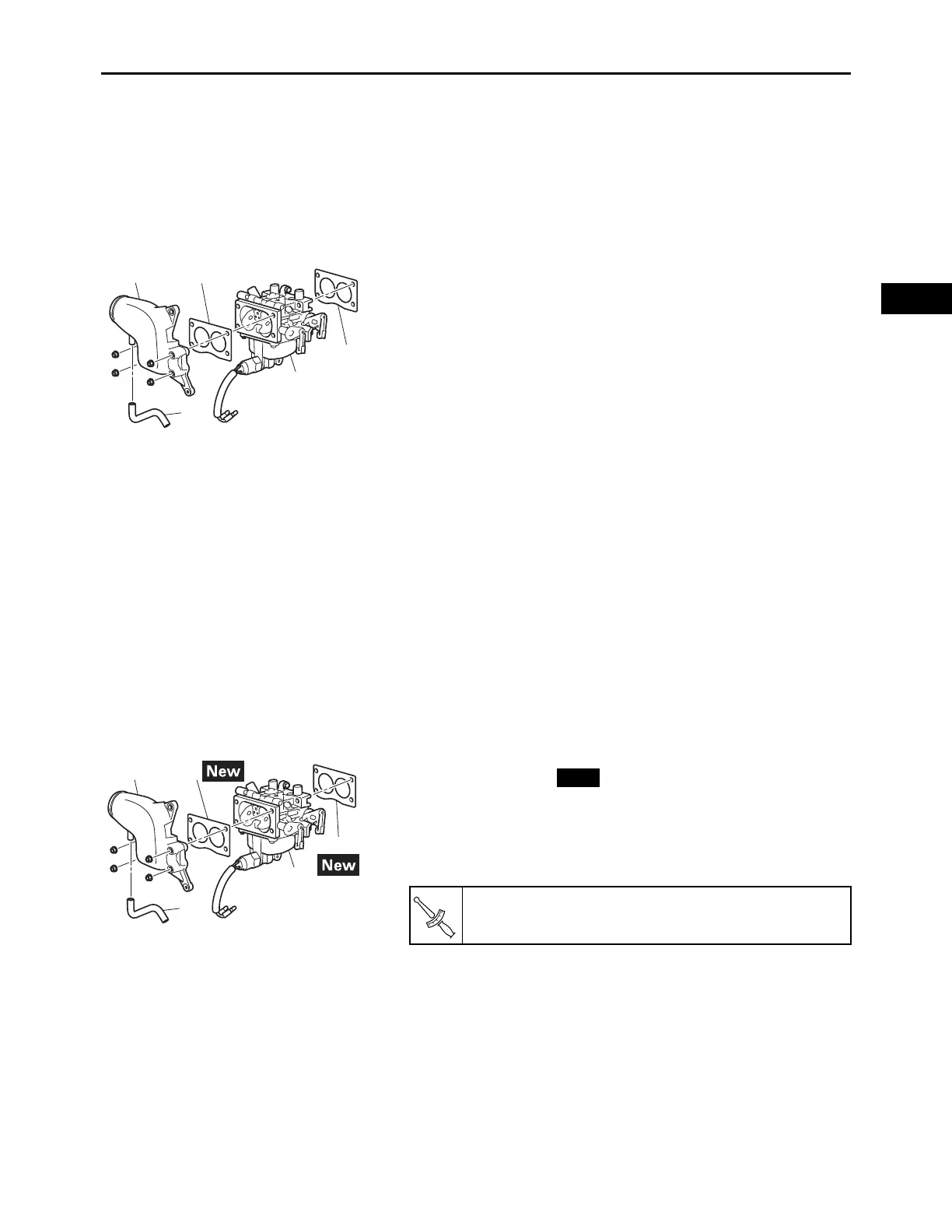

REMOVING THE CARBURETOR ASSEMBLY
1. Remove:
• Governor spring
• Governor assembly
• Throttle lever comp
• Link rod/spring
2. Remove:
• Breather hose “1”
• Joint 1 “2”
• Carburetor assembly “3”
• Gaskets “4”
CHECKING THE CARBURETOR ASSEMBLY
1. Check:
• Carburetor assembly
Cracks/damage  Replace.
2. Check:
• Throttle valve operation
Throttle valve can not move smoothly  Replace.
• Engine speed adjustment
Can not adjust engine high/low engine speed by
procedure on page 2-16  Replace.
INSTALLING THE CARBURETOR ASSEMBLY
1. Install:
• Gaskets “1”
• Carburetor assembly “2”
• Joint 1 “3”
• Breather hose “4”
• Carburetor assembly nuts
2
1
3
4
4
3
4
2
1
1
Carburetor assembly nut:
7 N·m (0.7 kgf·m, 5.2 lb·ft)
New
T
R
.
.
