Yamaha MX800V - Cylinder Head #2

3-21
1
2
3
4
5
6
7
8
9
10
ENGINE

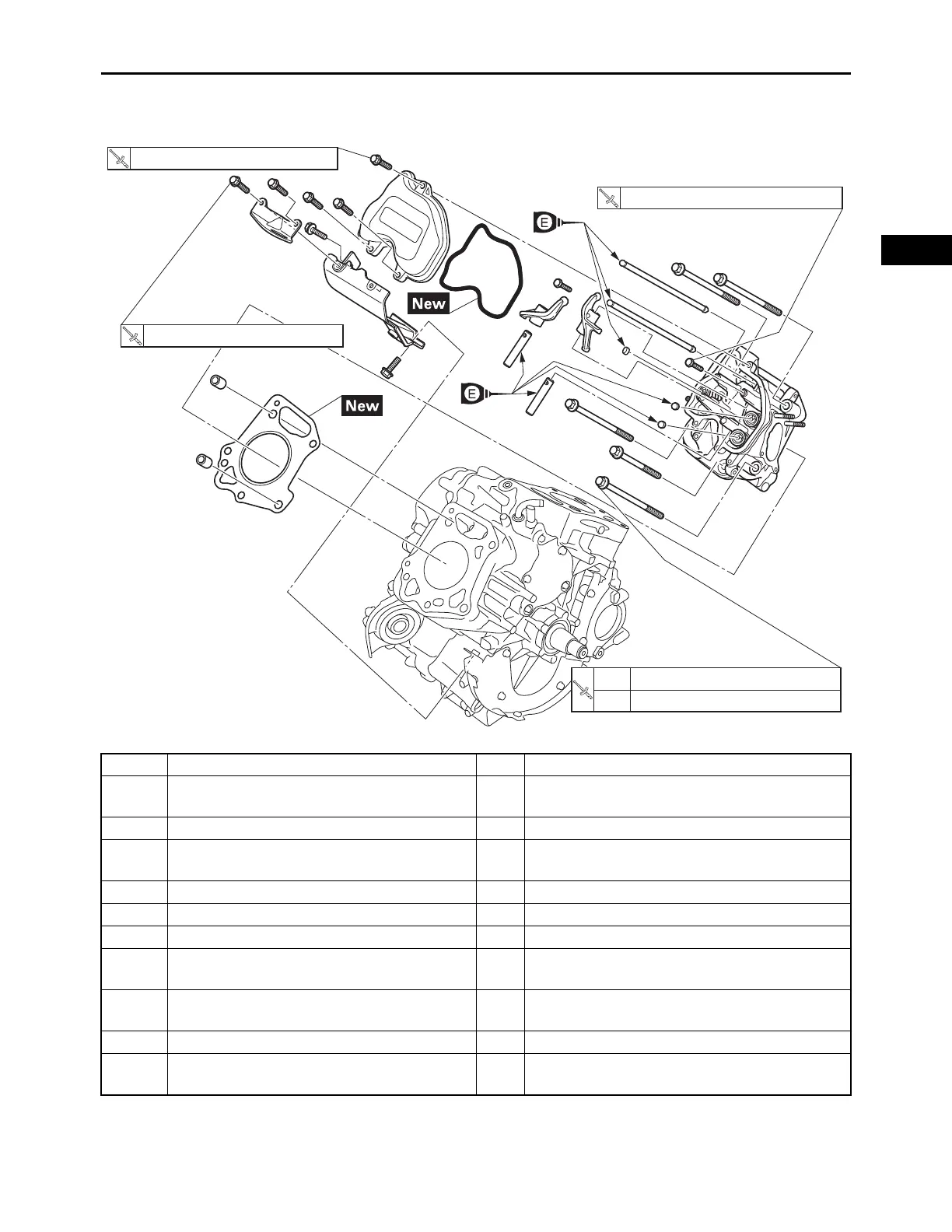

CYLINDER HEAD COVERS, CYLINDER HEADS
CYLINDER HEAD #2
Order Job/Parts to remove Q’ty Remarks
Removing the cylinder head covers, and
cylinder heads
Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER” on page 3-3.
Rectifier/regulator
Refer to “RECTIFIER/REGULATOR” on page
3-8.
Fuel pump Refer to “FUEL PUMP” on page 4-1.
Oil cooler Refer to “OIL COOLER” on page 3-5.
Fan case Refer to “CASE AND FAN” on page 3-9.
Flywheel and stator coil assembly
Refer to “FLYWHEEL AND STATOR COIL
ASSEMBLY” on page 3-14.
Carburetor assembly
Refer to “CARBURETOR ASSEMBLY” on
page 4-3.
Intake manifold Refer to “INTAKE MANIFOLD” on page 4-7.
Starter motor assembly
Refer to “REMOVING THE STARTER
MOTOR” on page 5-10.
11 N・m (1.1 kgf・m, 8.1 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
50 N・m (5.0 kgf・m, 37 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
1st
2nd
