ENGINE

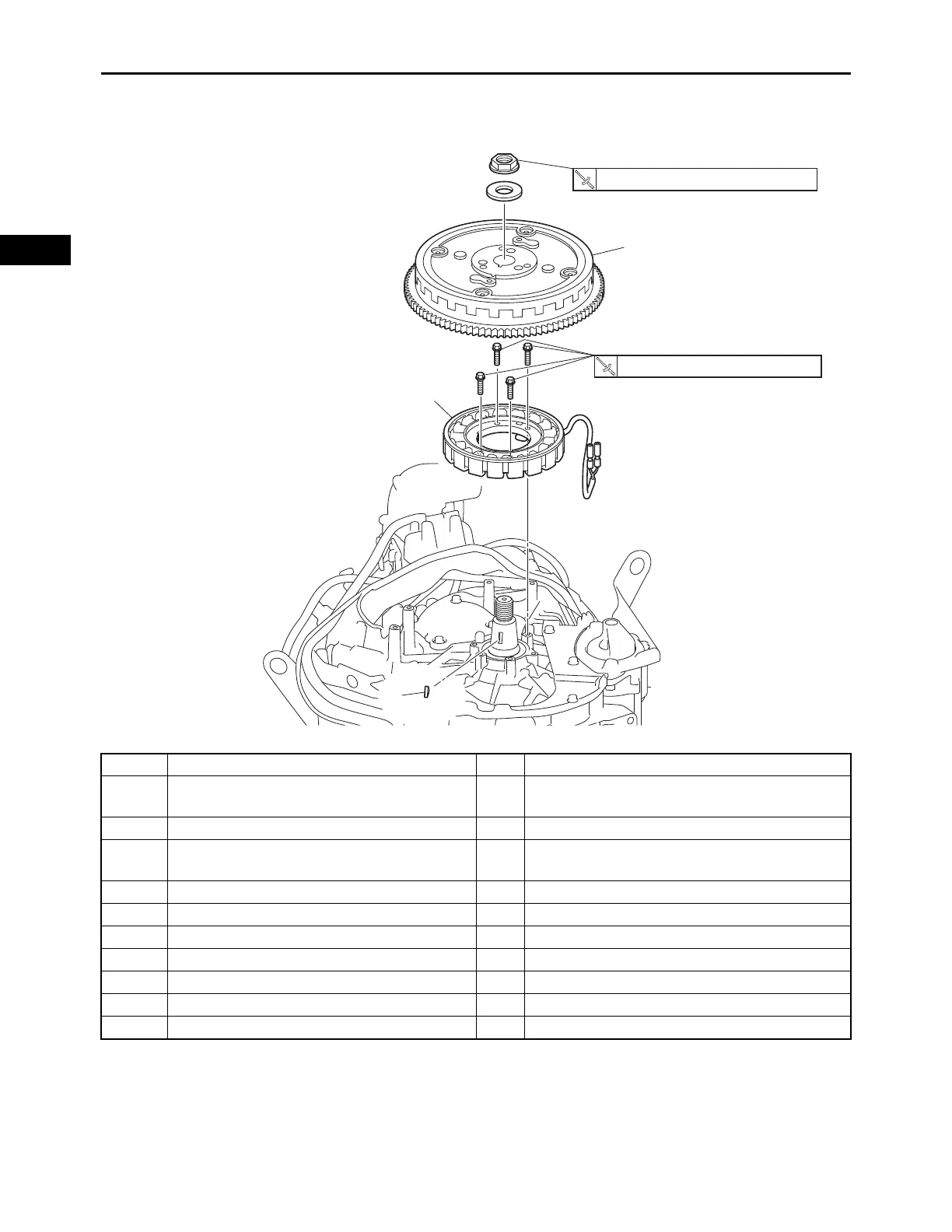

TCI UNITS, FLYWHEEL AND STATOR COIL ASSEMBLY
FLYWHEEL AND STATOR COIL ASSEMBLY
Order Job/Parts to remove Q’ty Remarks
Removing the flywheel and stator coil
assembly
Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER” on page 3-3.
Rectifier/regulator
Refer to “RECTIFIER/REGULATOR” on page
3-8.
Fuel pump Refer to “FUEL PUMP” on page 4-1.
Oil cooler Refer to “OIL COOLER” on page 3-5.
Fan case Refer to “CASE AND FAN” on page 3-9.
TCI units Refer to “TCI UNITS” on page 3-13.
1 Flywheel 1
2 Woodruff key 1
3 Stator coil assembly 1
180 N・m (18 kgf・m, 133 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
1
2
3
