ENGINE
TCI UNITS, FLYWHEEL AND STATOR COIL ASSEMBLY

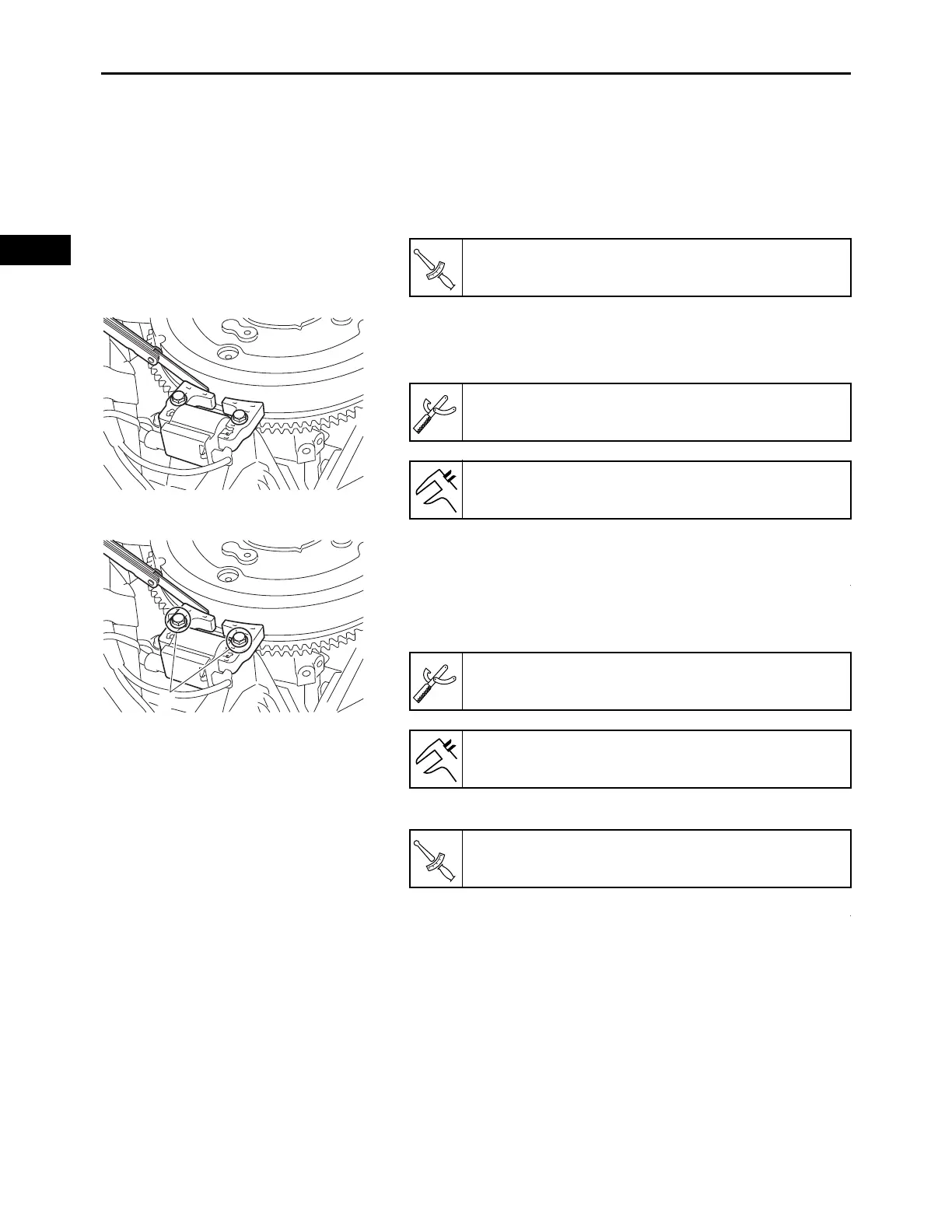

INSTALLING THE TCI UNITS
The following procedure applies to all of the TCI units.
1. Install:
• TCI unit
• TCI unit bolts
2. Measure:
• TCI unit air gap
Out of specification  Adjust.
3. Adjust:
• TCI unit air gap
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Loosen the TCI unit bolts “1”.
b. Adjust the TCI unit air gap.
c. Tighten the TCI unit bolts “1”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
TCI unit bolt:
10 N·m (1.0 kgf·m, 7.4 lb·ft)
T
R
.
.
Feeler gauge set:
YU-26900-9
TCI unit air gap:
0.4–0.6 mm (0.0157–0.0236 in)
1
Feeler gauge set:
YU-26900-9
TCI unit air gap:
0.4–0.6 mm (0.0157–0.0236 in)
TCI unit bolt:
10 N·m (1.0 kgf·m, 7.4 lb·ft)
T
R
.
.
