Yamaha MX800V - Valves

3-26
1
2
3
4
5
6
7
8
9
10
ENGINE
VALVES
VALVES

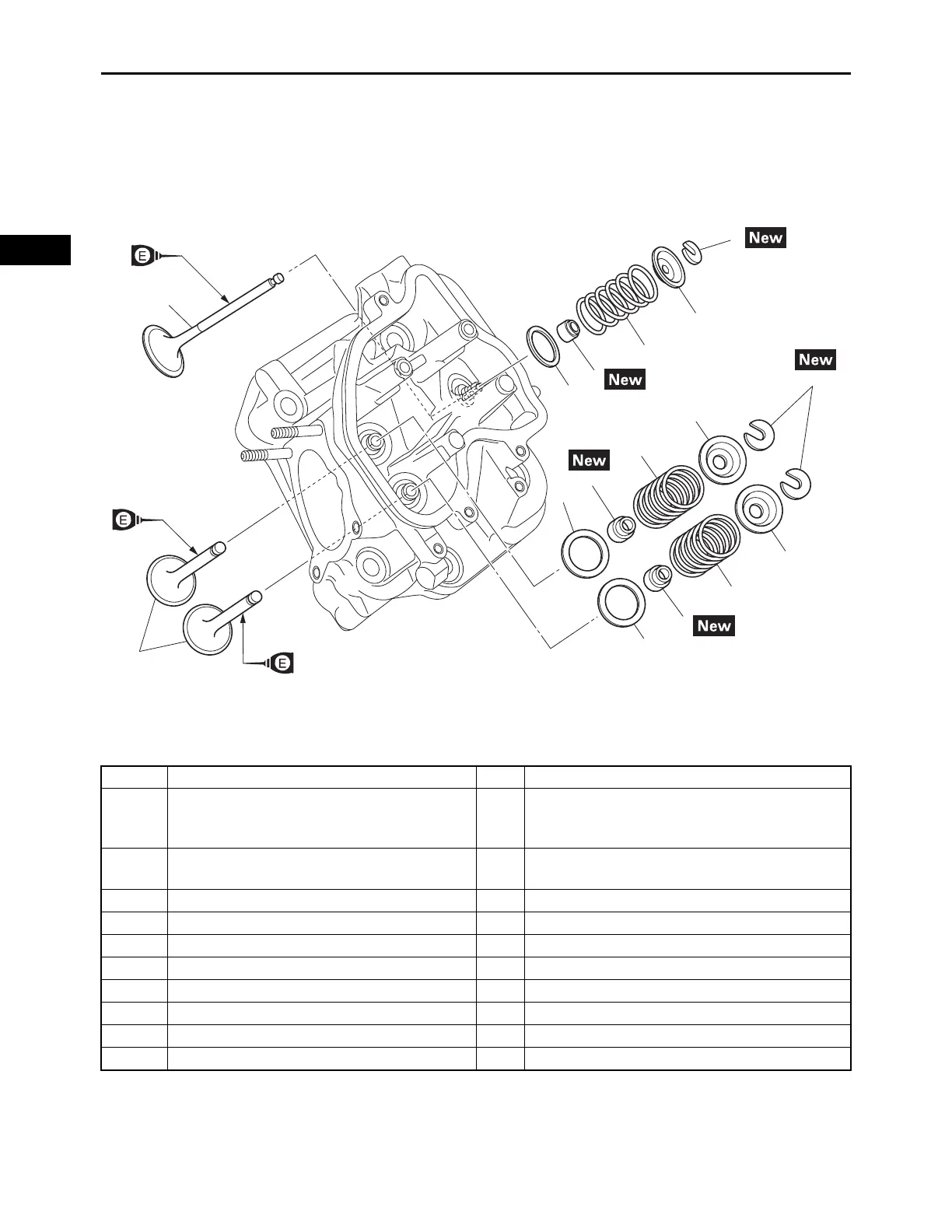

Order Job/Parts to remove Q’ty Remarks
Removing the valves
Remove the parts in the order listed.
The following procedure applies to both cylin-
ders.
Cylinder head assembly
Refer to “CYLINDER HEAD COVERS, CYL-
INDER HEADS” on page 3-19.
1 Valve cotter 3
2 Valve spring retainer 3
3 Intake valve spring 2
4 Exhaust valve spring 1
5 Intake valve 2
6 Exhaust valve 1
7 Valve stem seal 3
8 Valve spring seat 3
1
2
4
5
6
7
8
1
2
3
7
8
2
3
7
8
