ENGINE
CASE AND FAN
REMOVING THE CASE AND FAN
1.
Remove:
• Air filter case
(Refer to “AIR FILTER” on page 3-3)
2.
Remove:
• Rectifier/regulator
(Refer to “RECTIFIER/REGULATOR” on page 3-8)
3.
Remove:
• Fuel pump
(Refer to “FUEL PUMP” on page 4-1)
4.
Remove:
• Oil cooler
(Refer to “OIL COOLER” on page 3-5)
5.
Remove:
• Oil filler cap
• Oil filler pipe
6.
Remove:

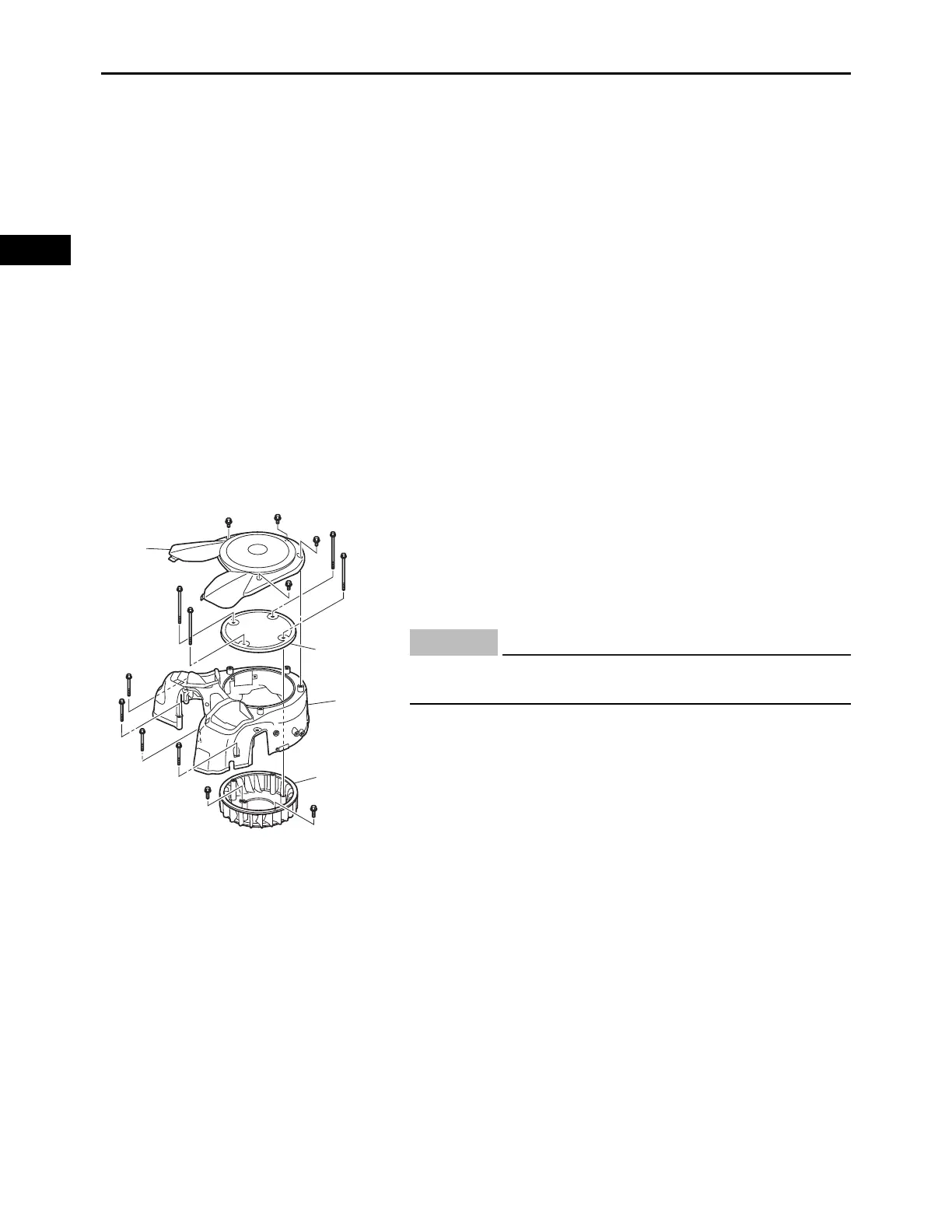

• Fan case cover “1”
• Grass screen “2”
• Fan case “3”
• Fan “4”
Because there is a risk of damage, remove the grass
screen “2” and fan case “3” in this order.
