Yamaha MX800V - Assembling the Flyweight Shaft Assembly; Installing the Flyweight Shaft Assembly and Governor Fork

3-41
1
2
3
4
5
6
7
8
9
10
ENGINE
PISTONS, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
2. Check:
• Weight
• Flyweight shaft
• Collar
• Washer
• Weight shaft
Wear/damage  Replace.

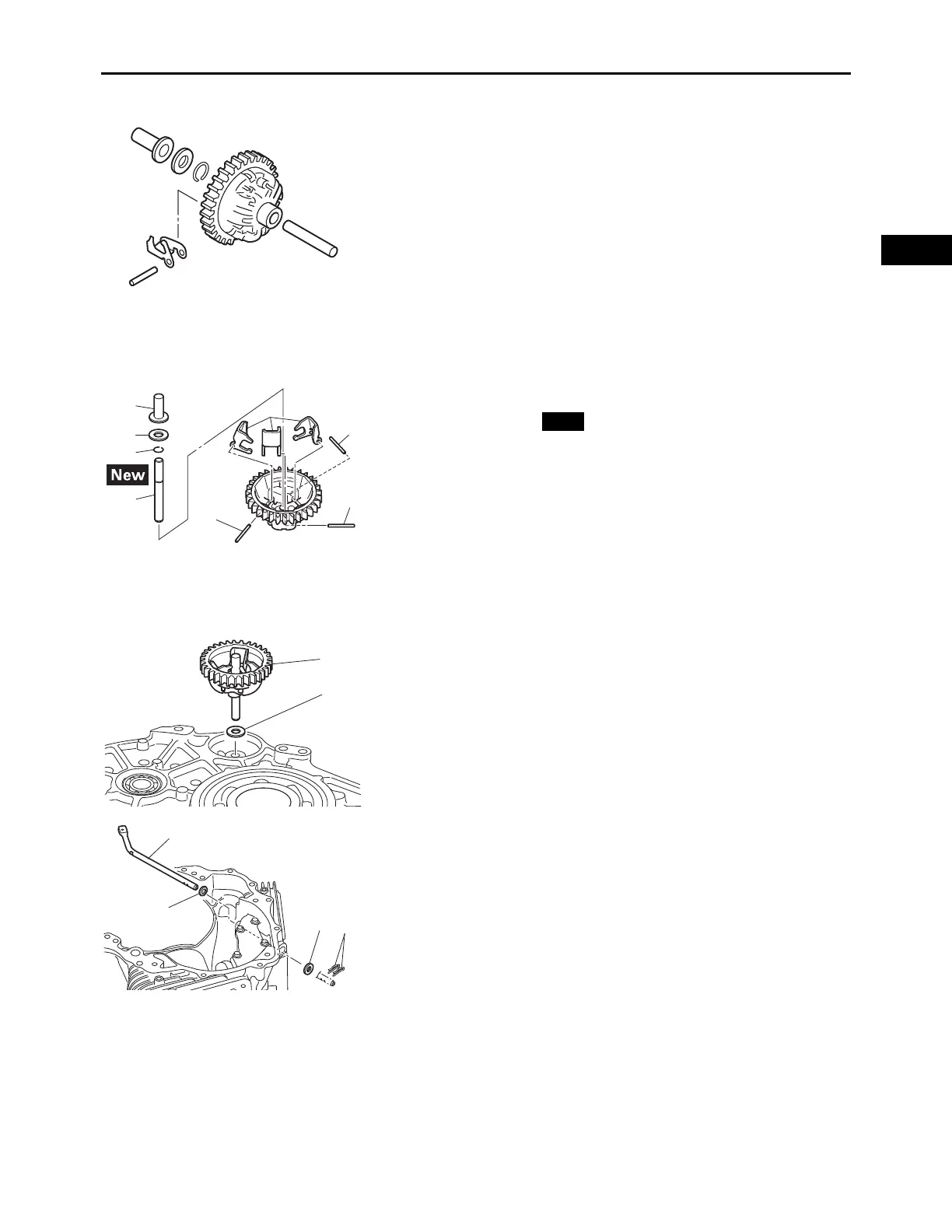

ASSEMBLING THE FLYWEIGHT SHAFT
ASSEMBLY
1. Install:
• Weight shaft “1”
• Circlip “2”
• Washer “3”
• Collar “4”
• Weights “5”
• Flyweight shafts “6”
INSTALLING THE FLYWEIGHT SHAFT ASSEMBLY
AND GOVERNOR FORK
1. Install:
• Washer “1”
• Flyweight shaft assembly “2”
2. Install:
• Washers “1”
• Governor fork “2”
• Clips “3”
3. Install:
• Governor assembly
• Crankcase cover 1
(Refer to “INSTALLING THE CRANKCASE COVER
1” on page 3-46)
6
6
6
5
4
3
2
1
New
2
1
1
1
2
3
