Yamaha MX800V - Carburetor Assembly

4-3
1
2
3
4
5
6
7
8
9
10
FUEL

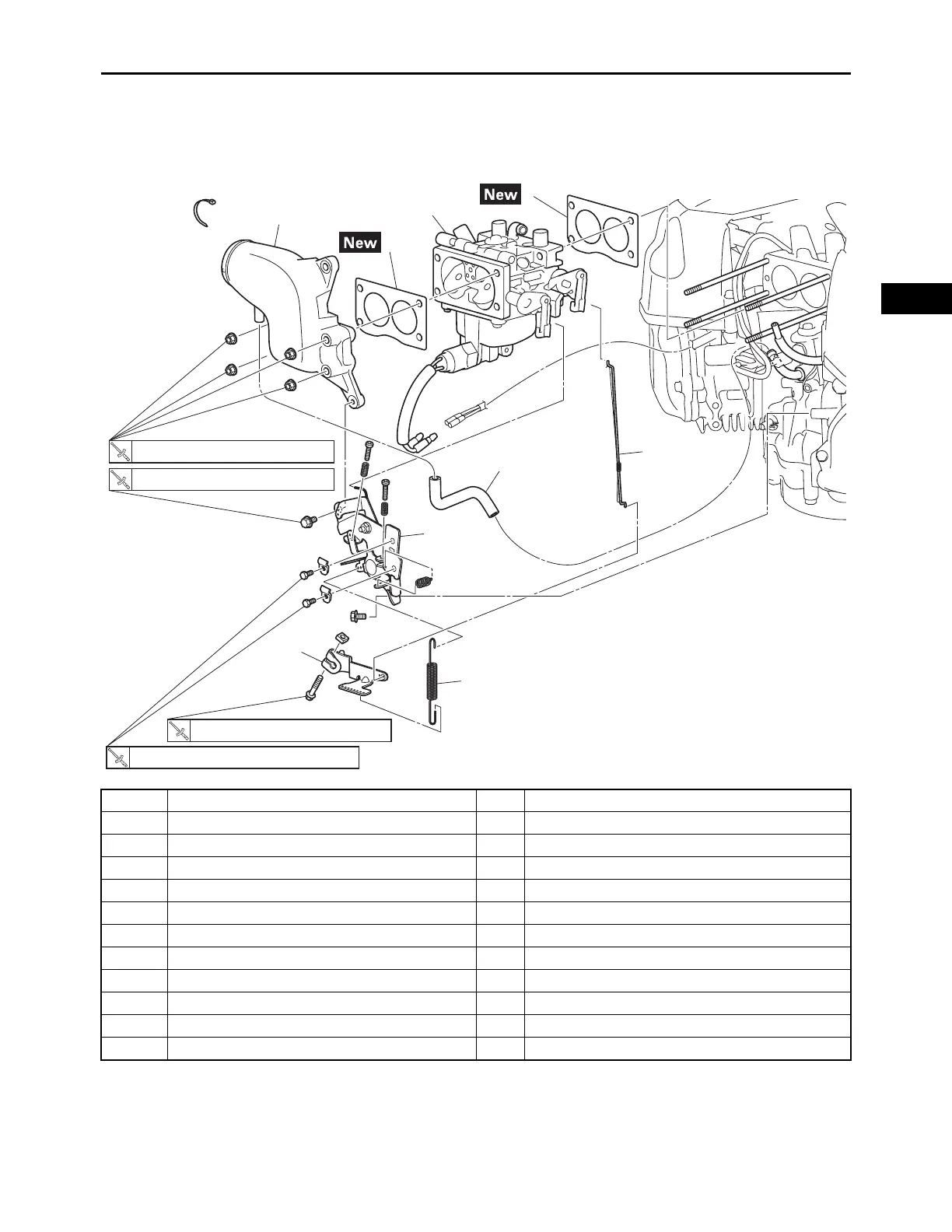

CARBURETOR ASSEMBLY
CARBURETOR ASSEMBLY
REMOVING THE CARBURETOR
Order Job/Parts to remove Q’ty Remarks
Removing the carburetor Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER” on page 3-3.
1 Governor spring 1
2 Governor assembly 1
3 Throttle lever comp 1
4 Link rod/spring 1/1
5 Breather hose 1
6Joint 1 1
7Gasket 1
8 Carburetor assembly 1
9Gasket 1
1
2
3
4
5
6
7
8
9
8 N・m (0.8 kgf・m, 5.9 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
1.1 N・m (0.11 kgf・m, 0.81 lb・ft)
