Yamaha MX800V - Case and Fan

3-9
1
2
3
4
5
6
7
8
9
10
ENGINE

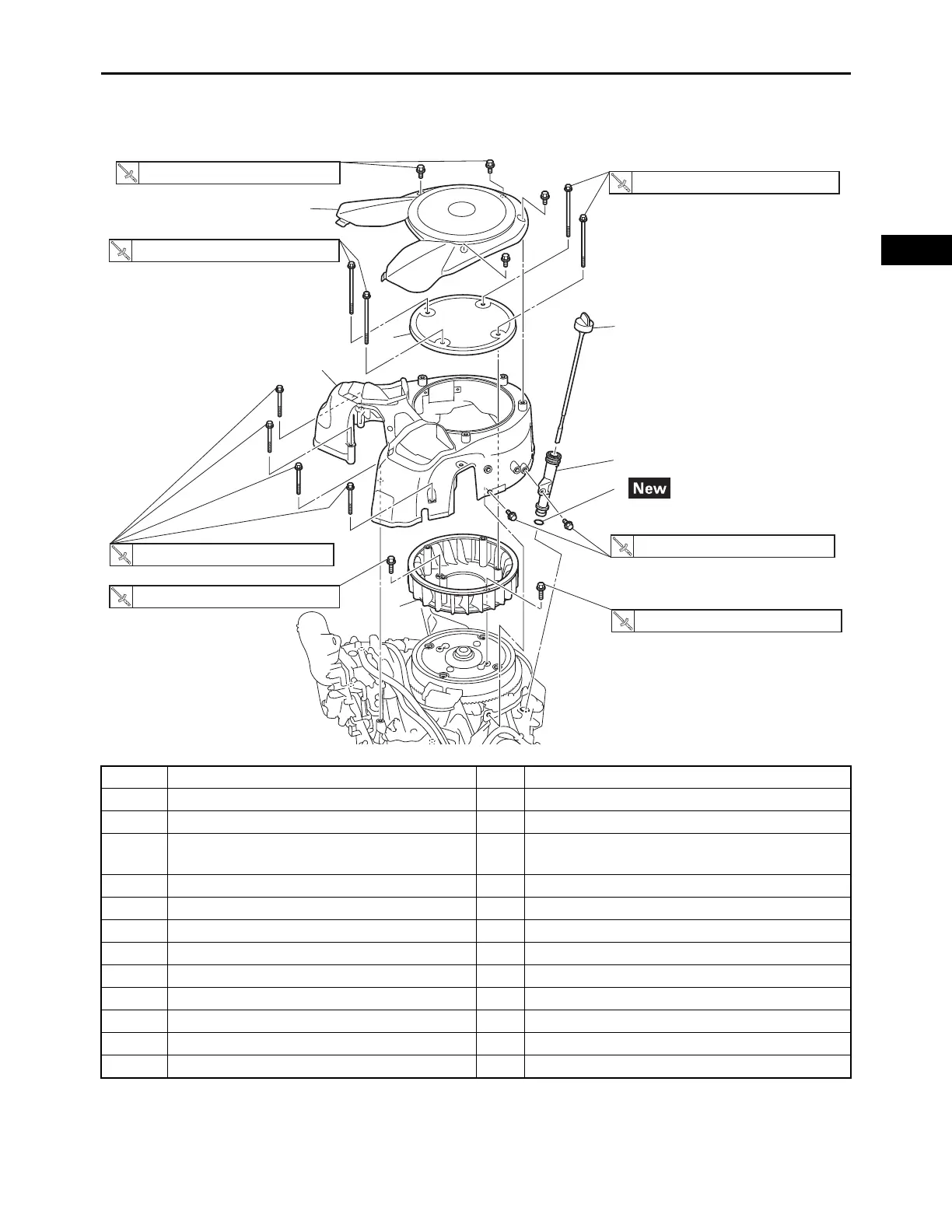

CASE AND FAN
CASE AND FAN
Order Job/Parts to remove Q’ty Remarks
Removing the case and fan Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER” on page 3-3.
Rectifier/regulator
Refer to “RECTIFIER/REGULATOR” on page
3-8.
Fuel pump Refer to “FUEL PUMP” on page 4-1.
Oil cooler Refer to “OIL COOLER” on page 3-5.
1 Oil filler cap 1
2 Oil filler pipe 1
3O-ring 1
4 Fan case cover 1
5 Grass screen 1
6 Fan case 1
7Fan 1
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
1
2
3
4
5
6
7
10 N・m (1.0 kgf・m, 7.4 lb・ft)
(4)
