3-22
1
2
3
4
5
6
7
8
9
10
ENGINE

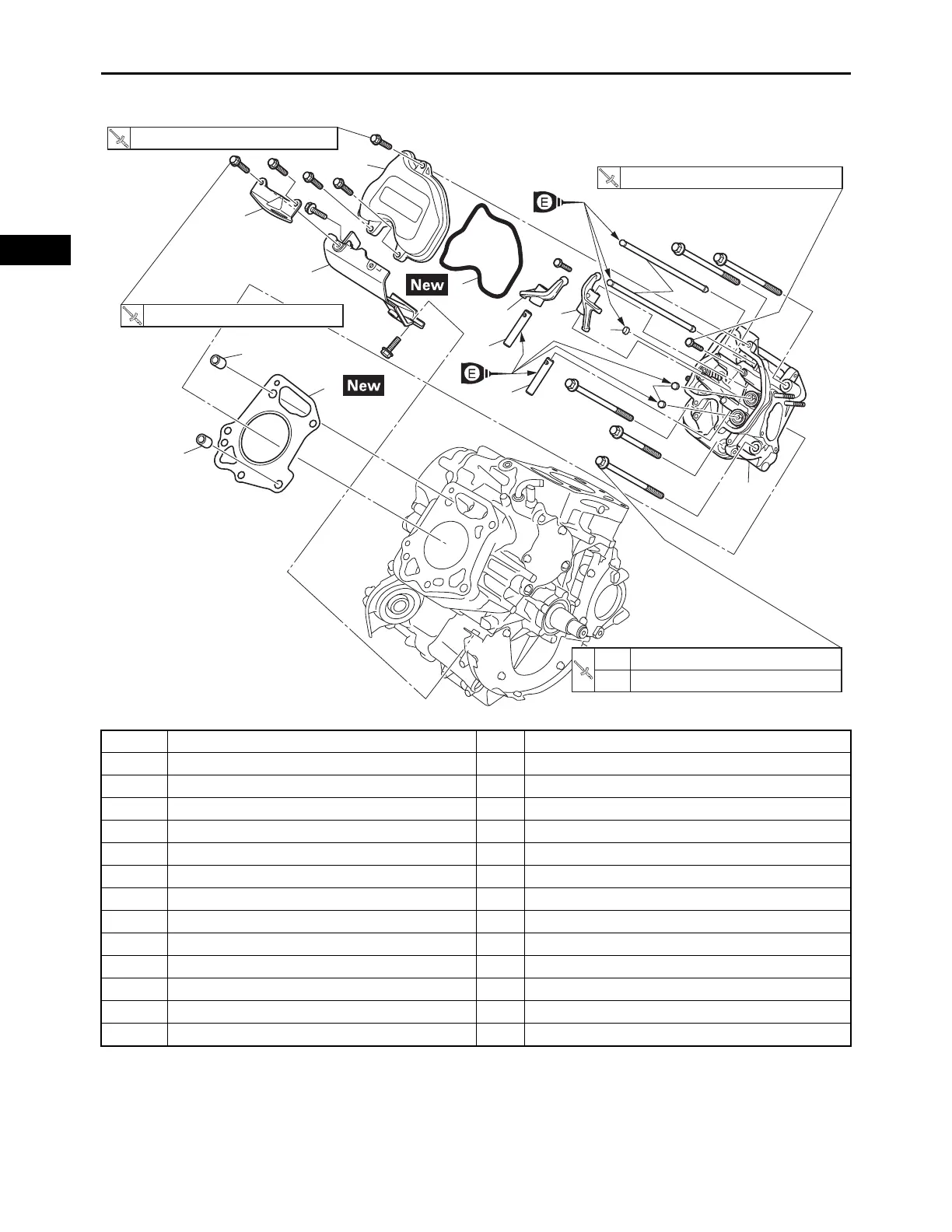

CYLINDER HEAD COVERS, CYLINDER HEADS
Order Job/Parts to remove Q’ty Remarks
1 Engine hunger 1 For maintenance.
2 Cylinder air shroud 1
3 Cylinder head cover 1
4 Cylinder head cover gasket 1
5 Rocker arm shaft 1 Intake
6 Rocker arm shaft 1 Exhaust
7 Rocker arm 1 Intake
8 Rocker arm 1 Exhaust
9 Adjusting pad 3
10 Push rod 2
11 Cylinder head assembly #2 1
12 Cylinder head gasket 1
13 Dowel pin 2
11 N・m (1.1 kgf・m, 8.1 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
2
3
4
5
6
7
8
9
9
11
10
12
13
13
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
1
50 N・m (5.0 kgf・m, 37 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
1st
2nd
