3-12
1
2
3
4
5
6
7
8
9
10
ENGINE
CASE AND FAN
TIP

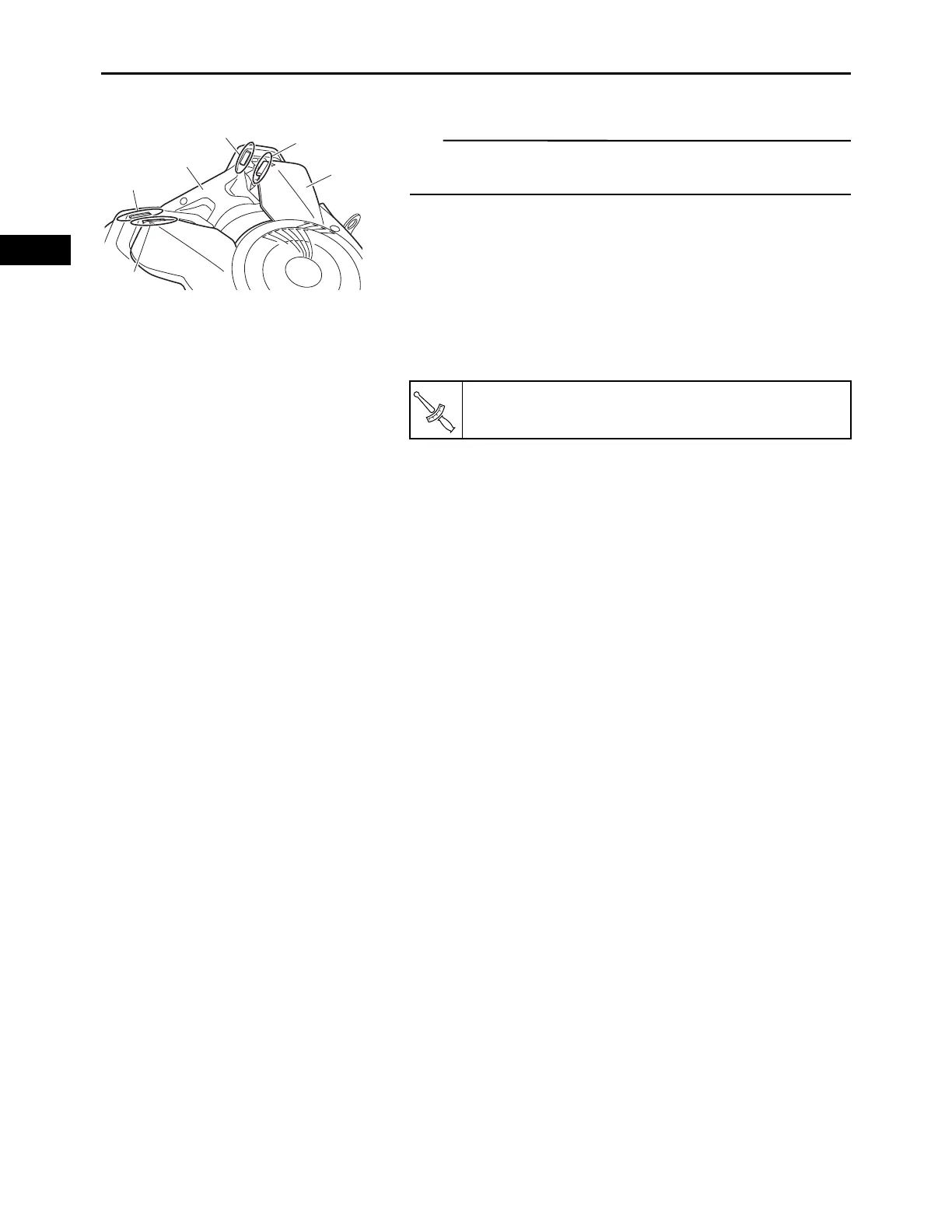

Insert the tab “a” of the fan case cover “4” into the hole “b”
of the fan case “2” first and then install.
2. Install:
• Oil filler pipe
• Oil filler pipe bolt
• Oil filler cap
2
4
a
b
a
b
Oil filler pipe bolt:
7 N·m (0.7 kgf·m, 5.2 lb·ft)
T
R
.
.
