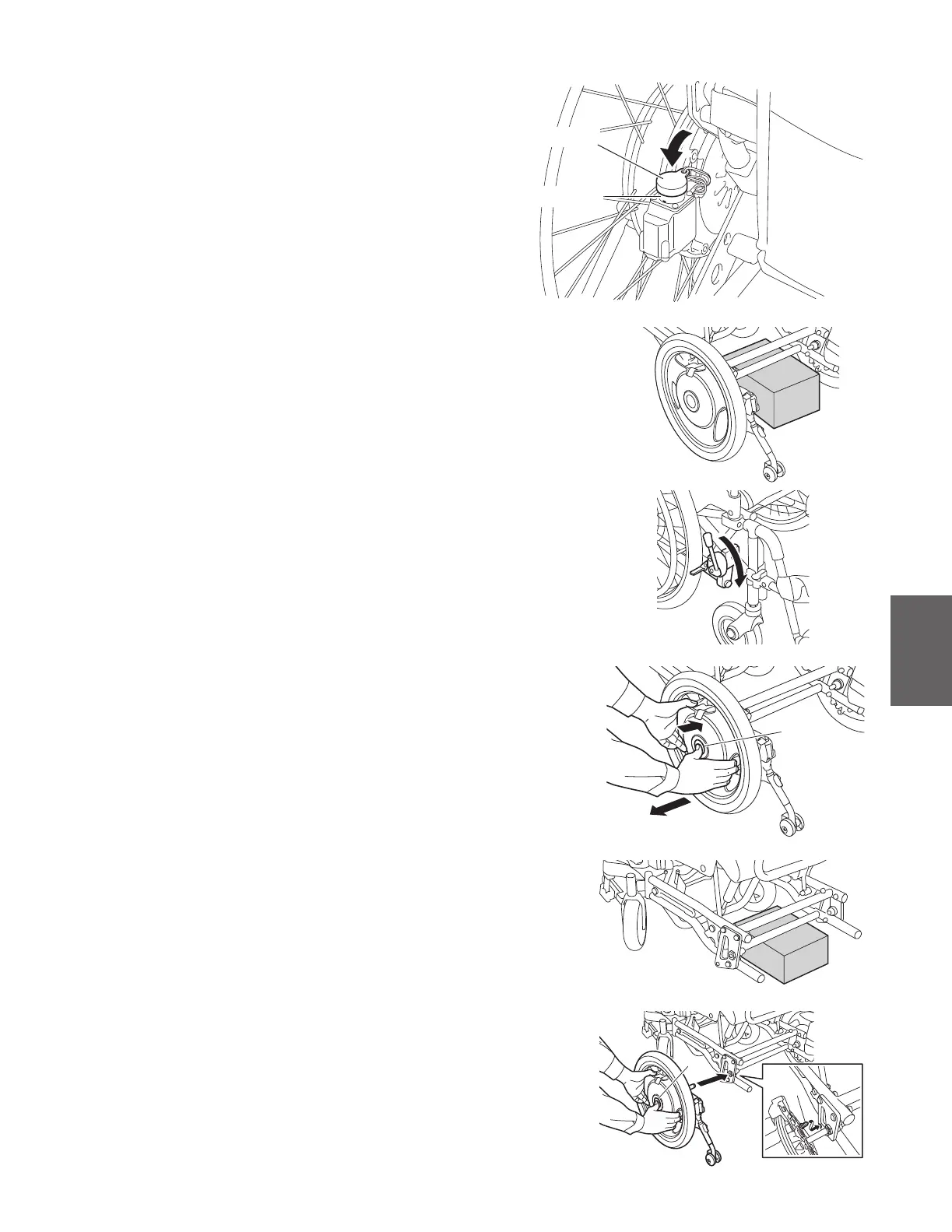

Attach the cap to prevent dirt or water from
entering the connector.
Cap
Connector
a
a
b
Place the wheelchair so that it will not become unstable
when the power units are removed. (For example, as
shown in the gure.)
Release the parking brakes.
While holding the hub with both hands and pushing the
middle of the center cap “a” with your ngers, pull out each
power unit using both hands.
(2) Installing the power units to the frame
Place the wheelchair so that it will not become unstable.
(For example, as shown in the gure.)
Switch the clutches on the units to the power drive
position.
While pushing the middle of the center cap “a” with your
fingers, install each power unit using both hands so that
the torque stopper axle “b” fits into the torque-receiving
component.
