En 10

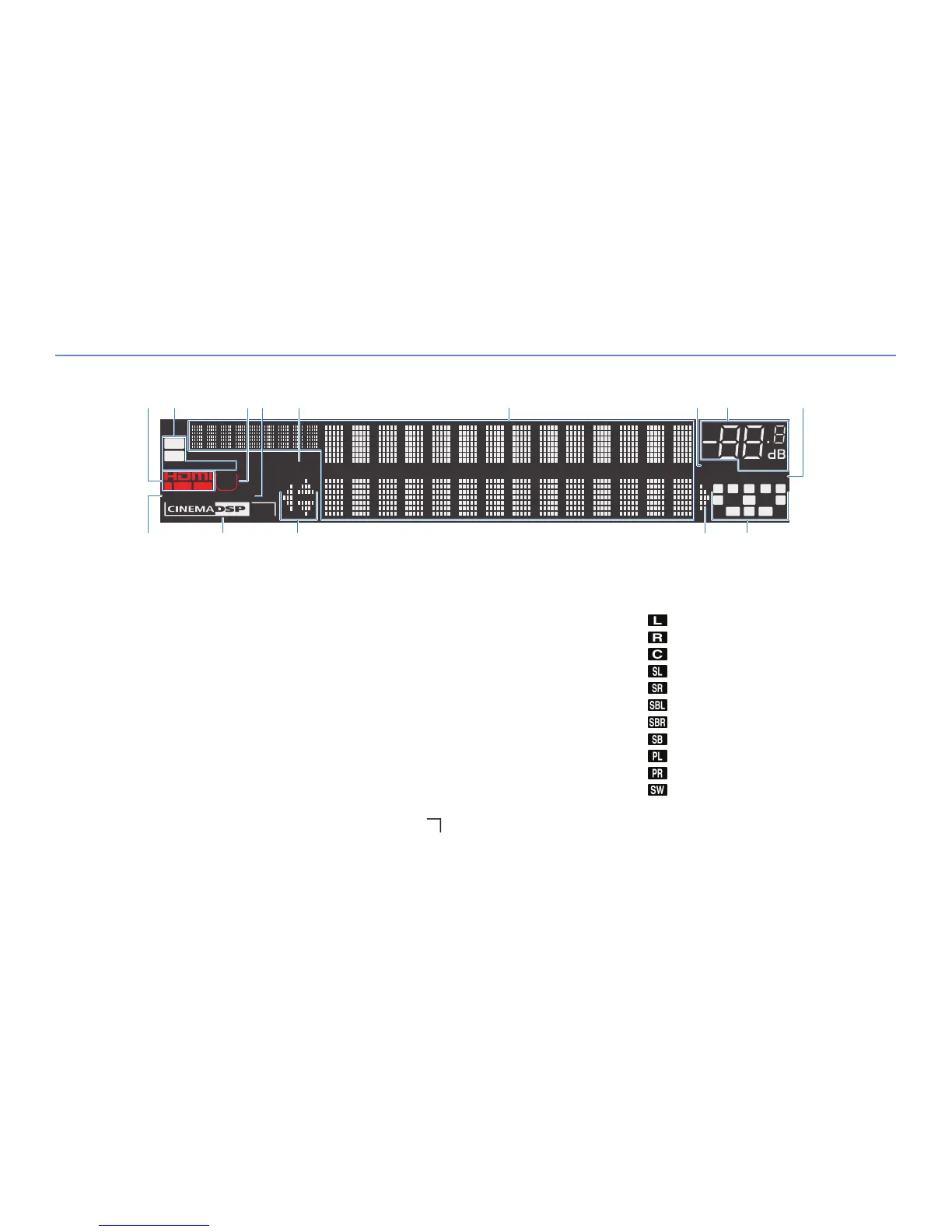

Front display (indicators)
1 HDMI
Lights up during normal HDMI communication.
IN
Lights up when HDMI signals are being input.
OUT1/OUT2
Indicate the HDMI OUT jacks currently outputting an HDMI
signal.
2 TAG
Lights up when the selected HD Radio program (or song)
supports iTunes Tagging (p.57).
HD
Lights up when this unit is receiving an HD Radio station
signal.
STEREO
Lights up when this unit is receiving a stereo FM radio signal.
TUNED
Lights up when this unit is receiving an FM/AM radio station
signal.
3 ZONE 2
Lights up when the audio output to Zone2 is enabled.
4 SLEEP
Lights up when the sleep timer is on.
5 PARTY
Lights up when this unit is in the party mode.
6 Information display
Displays the current status (input name, sound mode name,
etc). You can switch the information by pressing INFO (p.89).
7 MUTE
Flashes when audio is muted.
8 Volume indicator
Indicates the current volume.
9 ADAPTIVE DRC
Lights up when Adaptive DRC (p.91) is working.
0 ENHANCER
Lights up when Compressed Music Enhancer (p.54) is
working.
A CINEMA DSP
Lights up when CINEMA DSP (p.51) is working.
CINEMA DSP
Lights up when CINEMA DSP 3D (p.53) is working.
B Cursor indicators
Indicate the remote control cursor keys currently operational.
C Speaker indicators
Indicate speaker terminals from which signals are output.
Front speaker (L)
Front speaker (R)
Center speaker
Surround speaker (L)
Surround speaker (R)
Surround back speaker (L)
Surround back speaker (R)
Surround back speaker
Front presence speaker (L)
Front presence speaker (R)
Subwoofer
OUT
1
IN
OUT
2
VOLUME
MUTE
DRC
ADAPTIVE
3
ZONE
2
SBL SBRSB
SL
SW
SR
PL
CL R
PR
STEREO
ENHANCER
SLEEP
TUNED PARTY
HD
TAG
2
987
