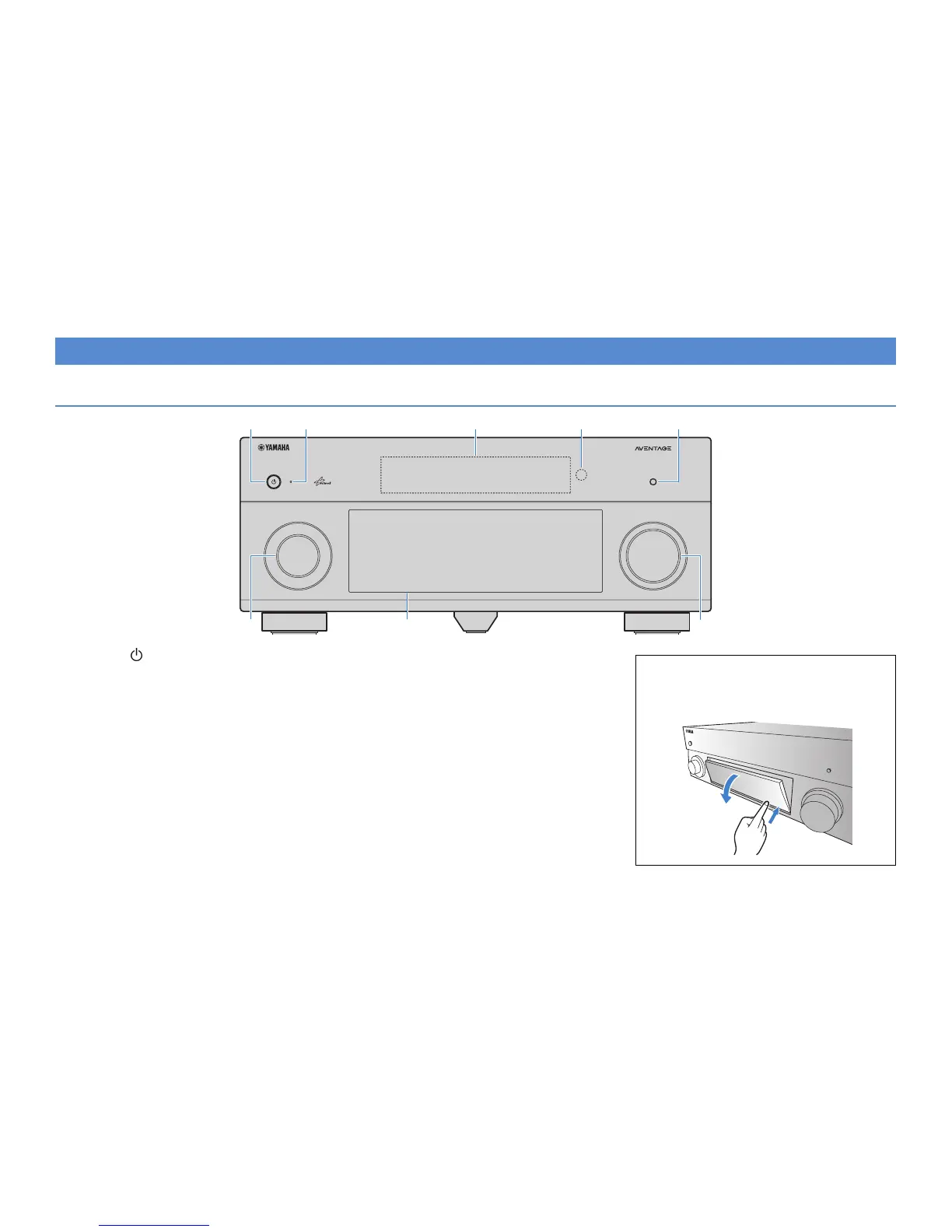

Front panel
1 MAIN ZONE
Turns on/off (standby) this unit.
2 Standby indicator
Lights up when this unit is in standby mode under any of the
following conditions.
- HDMI Control is enabled (p.137)
- The standby through function is enabled (p.110)
- The network standby function is enabled (p.111)
- The iPod is being charged (p.94)
- An iPod wireless system is connected (p.67)
3 Front display
Displays information (p.10).
4 Remote control sensor
Receives remote control signals (p.5).
5 PURE DIRECT
Enables/disables Pure Direct (p.54).
6 INPUT
Selects an input source.
7 Front panel door
For protecting controls and jacks (p.9).
8 VOLUME
Adjusts the volume.
Part names and functions
SCENE
MULTI ZONE
HDMI IN
VIDEO AUX
TONE/BALANCEOPTIONON SCREEN
DISPLAYRETURN
STRAIGHT
1
ENTER
ZONE 2
2 3 4
ZONE CONTROL
INFO MEMORY
YPAO MIC
PHONES
SILENT CINEMA
USB
iPod/iPhone
PROGRAM CATEGORY
FM AM
TUNING/CH
PRESET
R OPTICALL AUDIOVIDEOS VIDEO
PURE DIRECT
VOLUMEINPUT
MAIN ZONE
NATURAL SOUND AV RECEIVER RX-A1010
5321
6 7 8
4
Opening the front panel door
• To use controls or jacks behind the front panel door, gently
press the bottom of the door to open it. Keep the door closed
when not using controls or jacks behind the front panel door.

Yamaha RX-A1010 Specifications

General

RMS rated power	1190 W
Audio output channels	7.2 channels
Dynamic power per channel (8 Ohm)	135 W
Power output per channel (1KHz@8 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	110 W
HDMI in	8
Composite video in	5
Digital audio coaxial in	3
Component video (YPbPr/YCbCr) in	4
Number of HDMI outputs	2
Component video (YPbPr/YCbCr) out	1
Speakers connectivity type	-
Ethernet LAN	No
Supported radio bands	AM, FM
Product color	Titanium
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	Not supported
Power consumption (standby)	0.3 W

Weight and Dimensions

Depth	432 mm
Width	435 mm
Height	182 mm
Weight	15100 g
