CAUTION:
Be sure to supply sufficient water and wa-
ter pressure to the cooling water passages
when lubricating the engine internal com-
ponents on land, otherwise the engine
could overheat.
NOTE:
While spraying the rust inhibitor into the
breather hose, the engine speed will drop.
4. Connect the breather hose.
5. Install the engine cover.

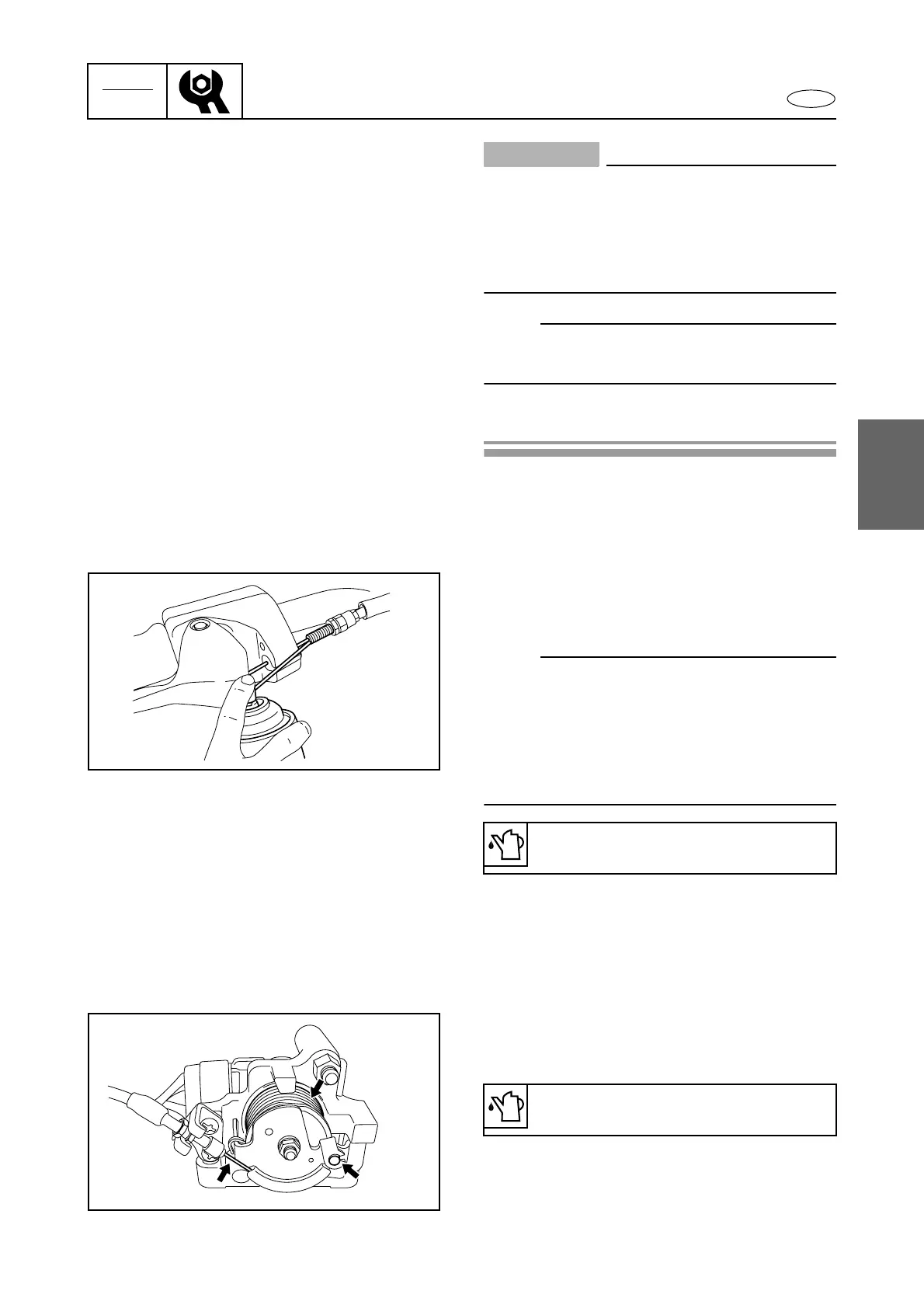

Lubrication points
1. Lubricate:
• Throttle cable (handlebar end)
NOTE:
• Before lubricating the throttle cable, discon-
nect it from the throttle lever assembly.
• After lubricating the throttle cable, be sure to
adjust the throttle lever free play. Refer to
“Throttle lever free play check and adjust-
ment.”
Recommended lubricant:
Rust inhibitor
2. Lubricate:
• Throttle cable (APS end)
• Return spring
Recommended lubricant:
Yamaha grease A
