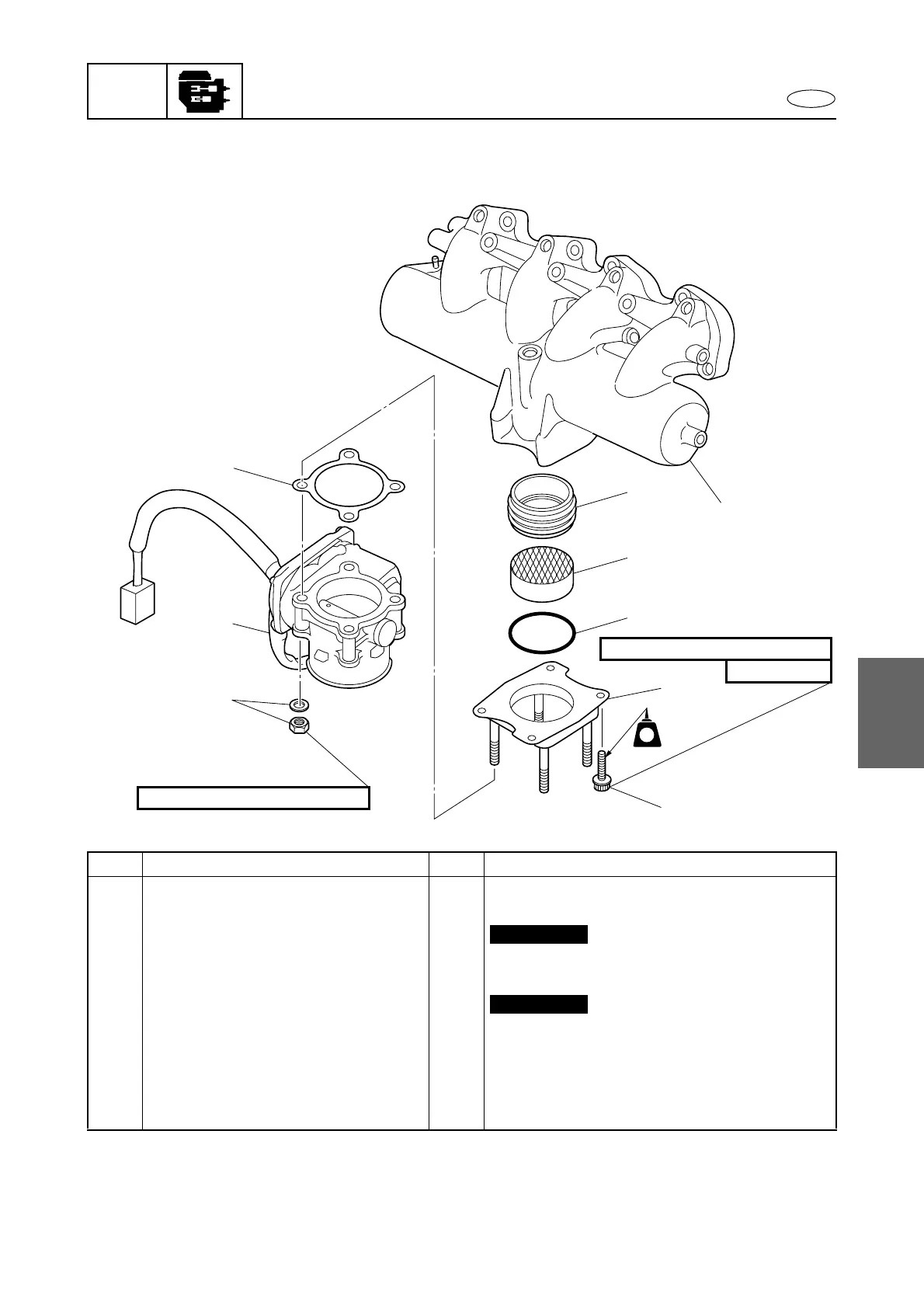

Intake disassembly
Step
Procedure/Part name
Q’ty Service points
1 Nut/washer 4/4
2 Throttle body assembly 1
3Gasket 1
Not reusable
4Bolt 4
5 Joint 1
6 O-ring 1
Not reusable
7Ribbon 1
8Holder 1
9 Intake manifold 1
Reverse the disassembly steps for
assembly.
8
7
6
5
3
2
1
9
4
13 N
·
m (1.3
kgf
·
m, 9.6 ft
·
Ib)
8 × 20 mm
13 N
·
m (1.3 kgf
·
m, 9.6 ft
·
Ib)
LT
242
Air cooler, supercharger, and throttle body assembly
