3-10
E
CHK
ADJ
1
2
3
4
5
6
7
8
9

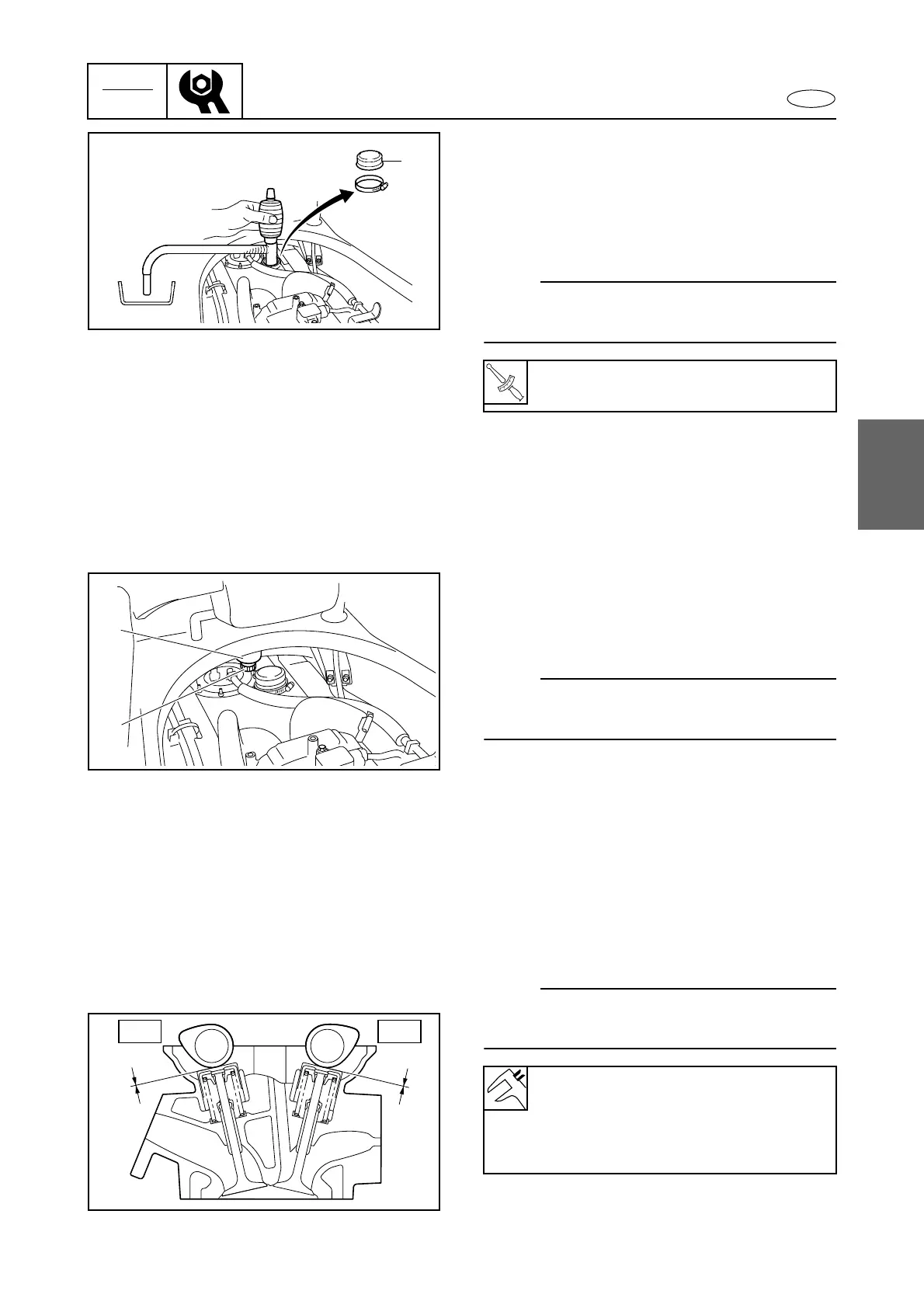

2. Check:
• Fuel tank
Water accumulation → Extract the water
and fuel.
Cracks/damage → Replace the fuel
tank.
NOTE:
To extract water and fuel from the fuel tank,
remove the cap 1 and use a siphon pump.
T
R
.
.
Fuel tank cap clamp:
1 N·m (0.1 kgf·m, 0.7 ft·lb)
1
Water separator check
1. Check:
• Water separator 1
Water accumulation → Drain the water.
NOTE:
To drain water from the water separator 1,
remove the drain plug 2.
1
2
Power unit
Valve clearance measurement
1. Measure:
• Valve clearance
Out of specification → Adjust the valve
clearance.
Refer to “Valve clearance adjustment” in
Chapter 5.
NOTE:
Measure the valve clearance when the engine
is cold.
Valve clearance (cold):
Intake a:
0.14–0.23 mm (0.006–0.009 in)
Exhaust b:
0.28–0.37 mm (0.011–0.015 in)
ab
EXIN
Fuel system / Power unit
