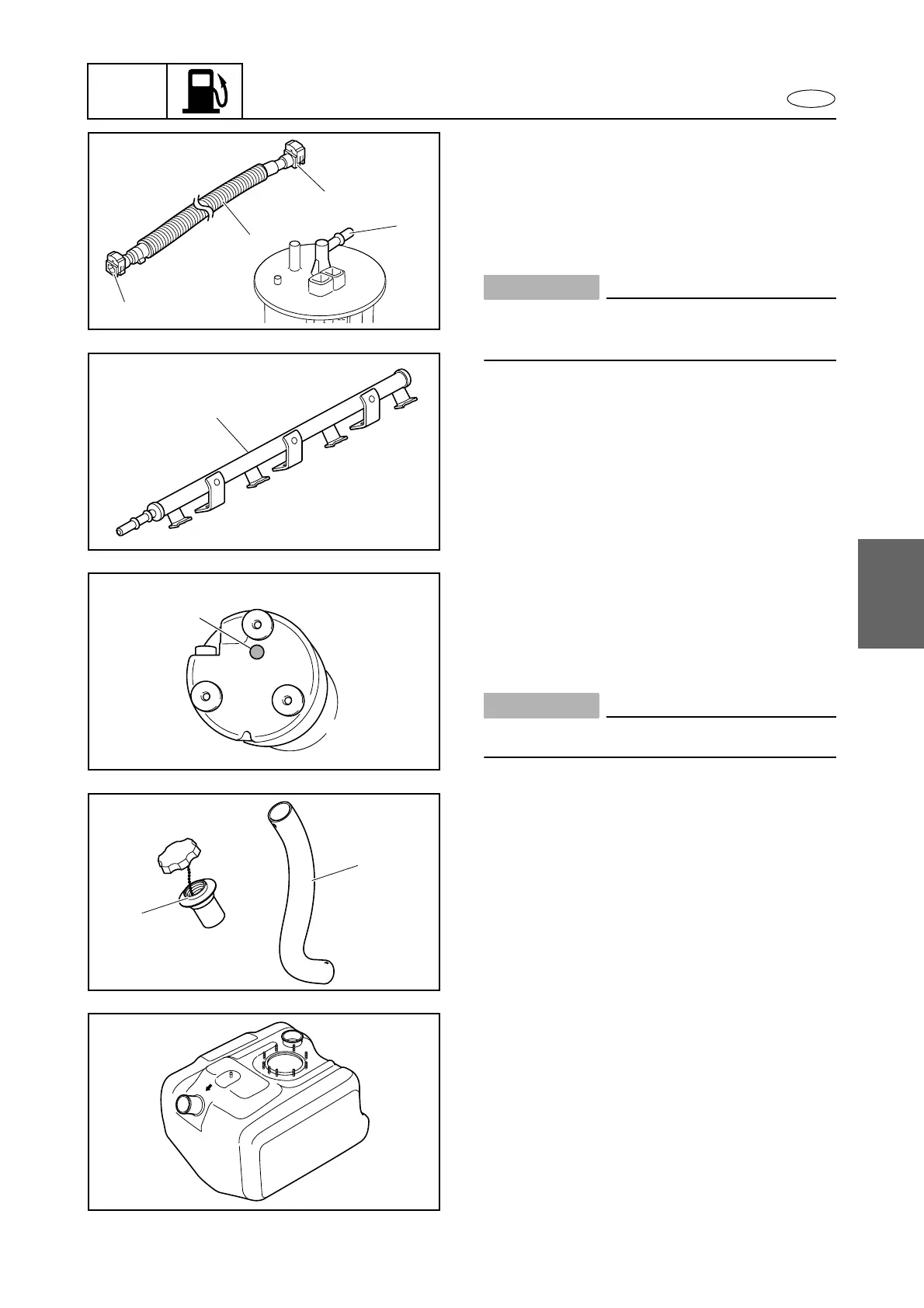

Fuel line check
1. Check:
• Fuel hose 1
• Quick connectors 2
Cracks/damage → Replace the fuel
hose assembly.
CAUTION:
Do not remove the quick connectors from
the fuel hose assembly.
• Fuel pipe 3 (fuel pump module end)
Cracks/damage → Replace the fuel
pump module assembly.
• Fuel rail 4
Cracks/damage → Replace the fuel rail.
2
3
1
2
4
Fuel pump module check
1. Check:
• Fuel pump filter 1
Clog/contaminants → Clean the fuel
pump filter with kerosene or gasoline.
CAUTION:
Do not disassemble the fuel pump module.
1
Fuel filler neck and hose check
1. Check:
• Fuel filler neck 1
Cracks/damage → Replace the fuel filler
neck.
• Fuel filler hose 2
Cracks/damage → Replace the fuel filler
hose.
2
1
Fuel tank check
1. Check:
• Fuel tank
Cracks/damage → Replace the fuel
tank.
Fuel tank, fuel pump module, and fuel hose
