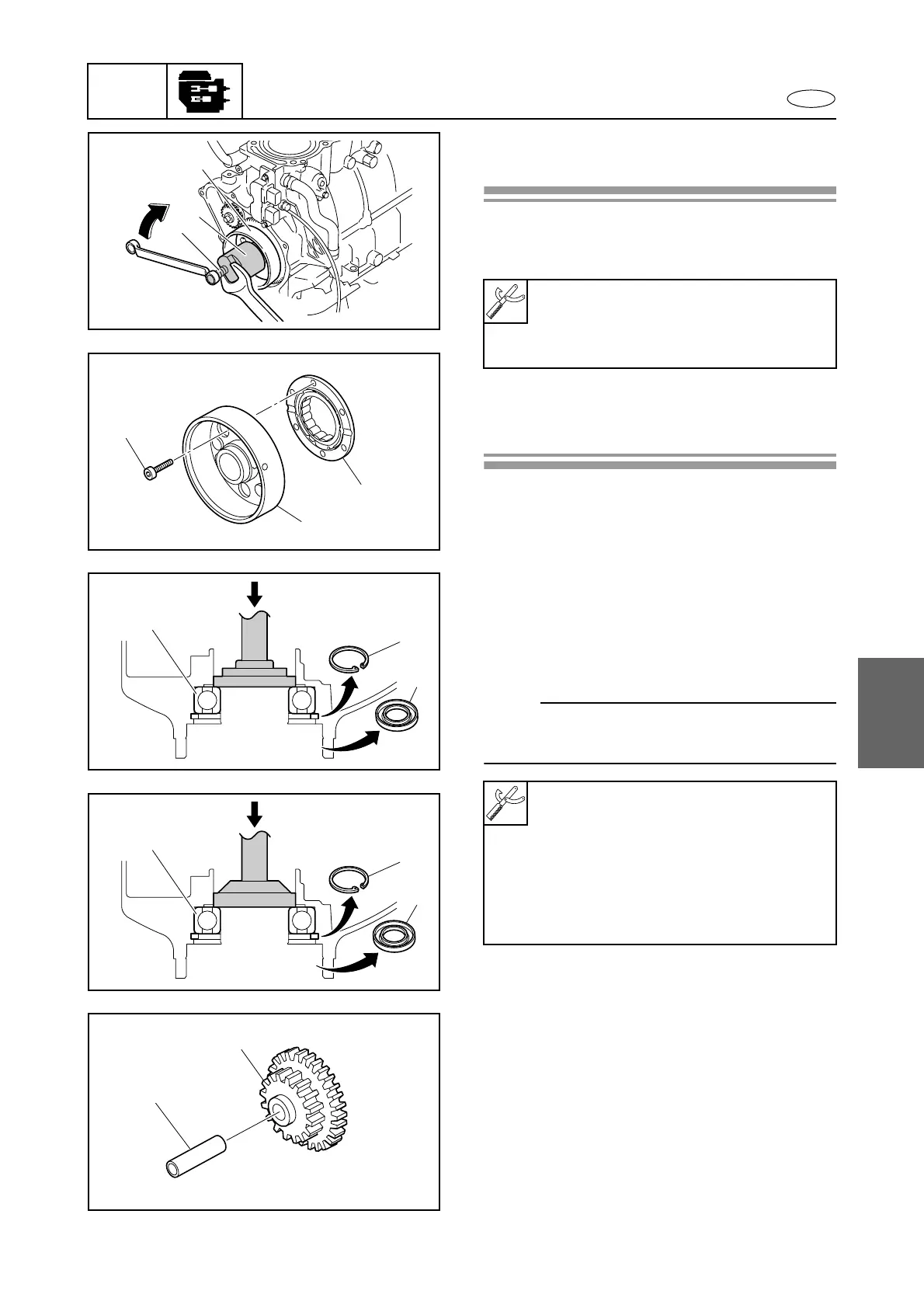

2. Remove:
• Flywheel magneto 1
Removal steps:
1. Remove the flywheel magneto 1 with the
special service tools 2 and 3.
2. Remove the flywheel magneto bolts 4,
and then remove the starter clutch assem-
bly 5.
Flywheel puller 2:
90890-06723
Rotor puller 3:
90890-01080
1
2
3
4
1
5
Bearing removal
1. Remove:
• Oil seal1
• Circlip 2
• Bearing 3
NOTE:
Be sure to remove the circlip before removing
the bearing.
È For USA and Canada
É For worldwide
Idle gear and shaft check
1. Check:
• Shaft 1
Bends/wear → Replace the idle gear
shaft.
• Idle gear 2
Cracks/damage → Replace the idle
gear.
Driver handle (small):
YB-06229
Bearing and seal installer:
YW-06356
Driver rod LS:
90890-06606
Bearing outer race attachment:
90890-06627
1
2
3
È
1
2
3
É
1
2
Generator cover and flywheel magneto
