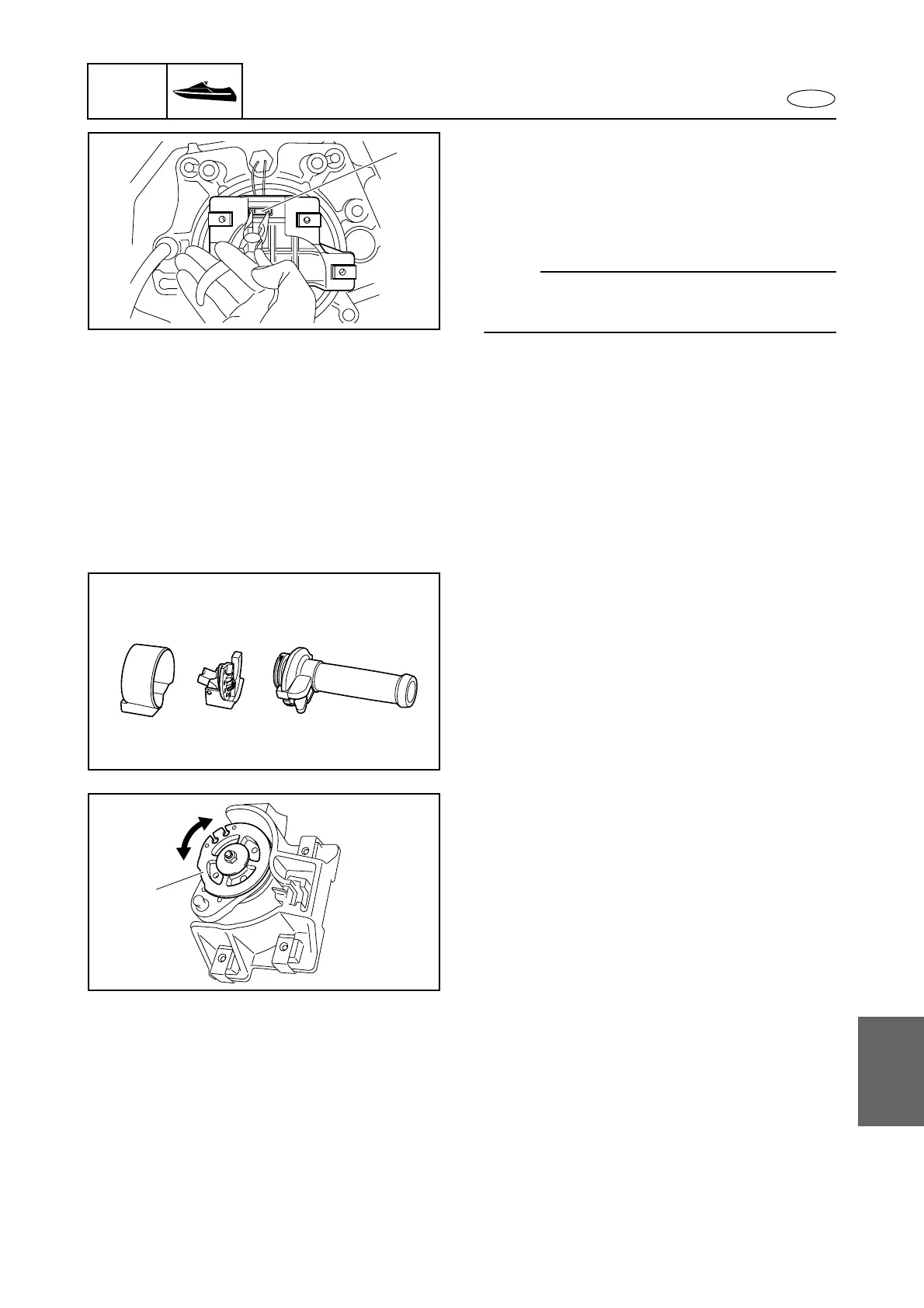

QSTS cable removal
1. Remove:
• QSTS converter
2. Remove:
• Cable guide 1
NOTE:
Remove the cable guide 1 with needlenose
pliers as shown.
3. Remove:
• QSTS cable ends
1
QSTS check
1. Check:
• QSTS grip
Cracks/damage/wear → Replace the
QSTS grip.
2. Check:
• QSTS cables
Damage/kinks → Replace the QSTS
cables.
• QSTS rod
Bends/damage → Replace the QSTS
rod.
3. Check:
• Pulley 1
Rough movement/stiffness → Clean the
pulley.
Damage → Replace the pulley.
• QSTS converter
Cracks/damage/wear → Replace the
QSTS converter.
1
QSTS grip and converter
