E
SPEC
2-19

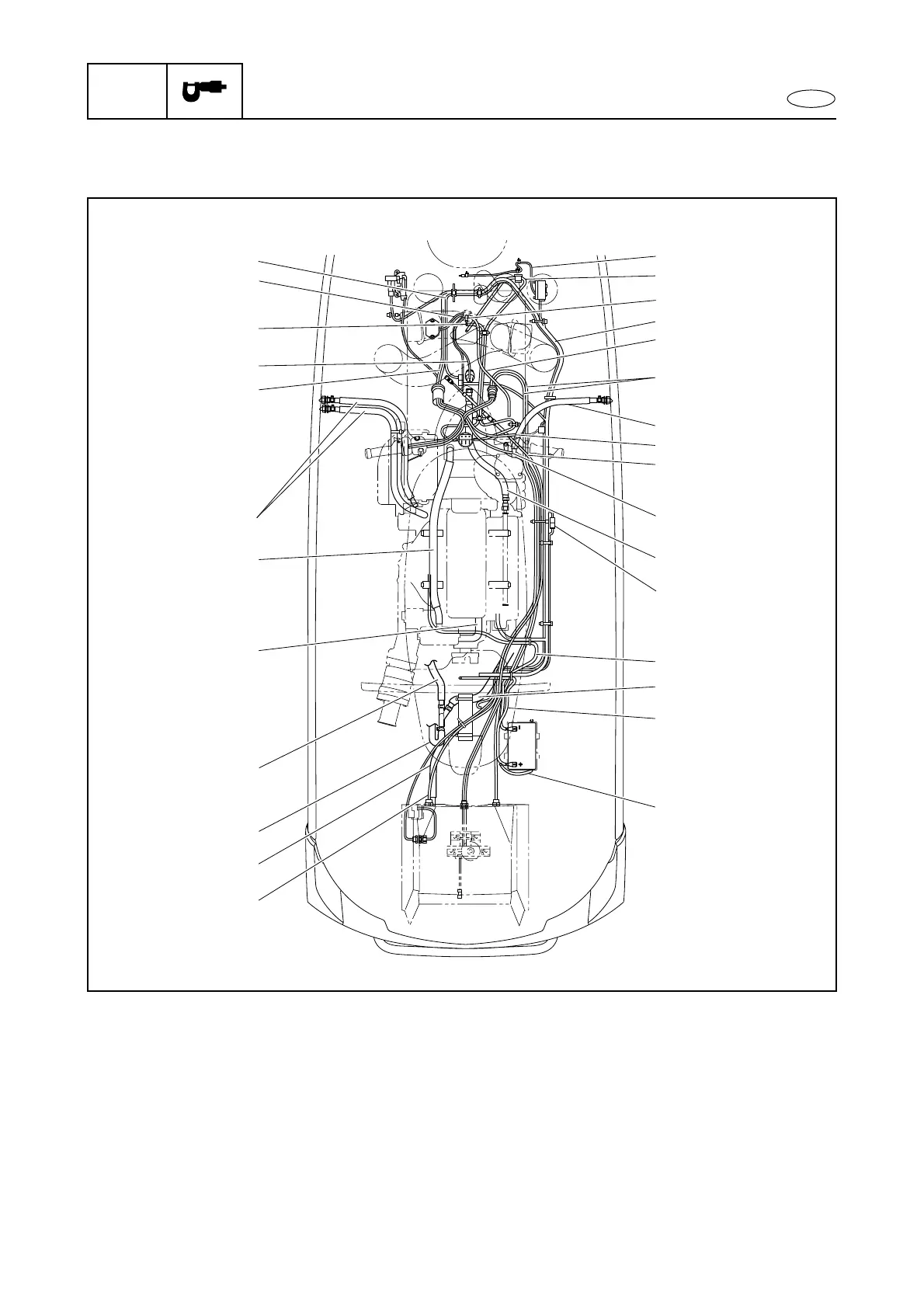

Top view
A
B
I
J
G
9
M
E
N
K
L
8
O
D
5
Q
0
P
6
3
1
F
4
9
2
C
H
7
1 Breather hose (head cover to breather
assembly)
2 Multifunction meter lead
3 Breather hose (breather assembly to intake
pipe)
4 Right handlebar switch lead
5 Throttle cable
6 Left handlebar switch lead
7 QSTS cable
8 Fuel tank breather hose (water separator to fuel
tank)
9 Cooling water pilot outlet hose
0 Speed sensor lead
A Remote control receiver antenna
B Fuel tank breather hose (ventilation socket to
water separator)
C Wiring harness
D Steering cable
E Shift cable
F Fuel hose (fuel tank to fuel rail)
G Cooling water hose (hose joint 1 to hose joint 4)
H Reverse sensor lead
Cable and hose routing
