5-39
E
POWR

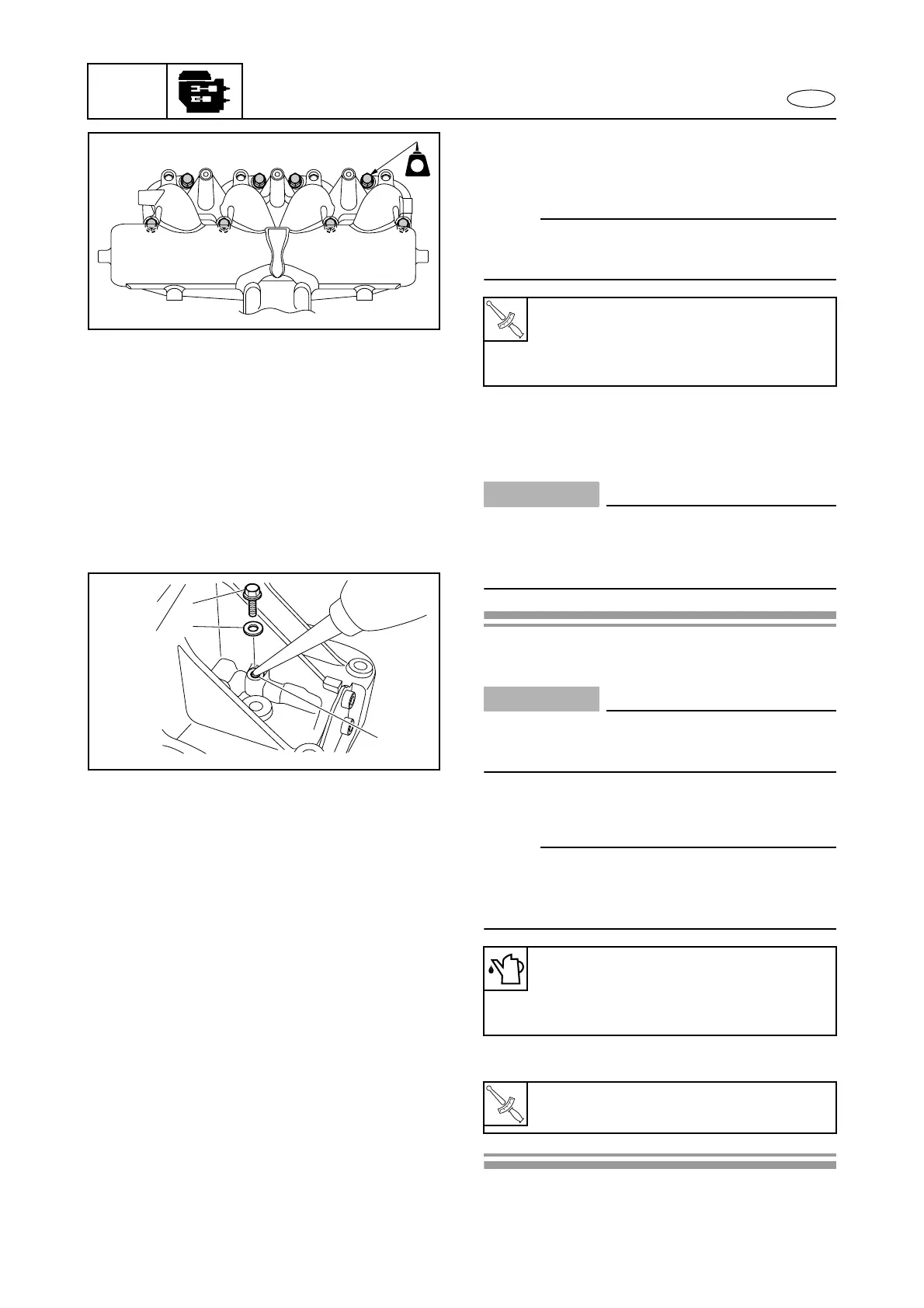

Intake manifold installation
1. Install:
• Intake manifold
NOTE:
Tighten the bolts to the specified torques in the
sequence shown.
Supercharger installation
1. Lubricate:
• Supper charger impeller shaft
CAUTION:
Before installing the supercharger assem-
bly, be sure to lubricate the supercharger
impeller shaft with engine oil.
Lubricating steps:
1. Remove the bolt 1 and gasket 2.
CAUTION:
Do not reuse the gasket 2, always replace
it with a new one.
2. Lubricate the supercharger impeller shaft
with engine oil through the oil filler hole a.
NOTE:
Turn the supercharger impeller while lubricat-
ing the supercharger impeller shaft through the
hole a.
3. Tighten the bolt 1 to the specified torque.
T
R
.
.
Intake manifold bolt:
1st: 10 N·m (1.0 kgf·m, 7.4 ft·lb)
2nd: 20 N·m (2.0 kgf·m, 14.8 ft·lb)
LOCTITE 242
Recommended engine oil:
API: SE, SF, SG, SH, SJ, or SL
SAE: 10W-30, 10W-40, 20W-40, or
20W-50
T
R
.
.
Supercharger oil filler hole bolt:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
!±
#$
%&
²(
LT
242
a
2
1
Air cooler, supercharger, and throttle body assembly
