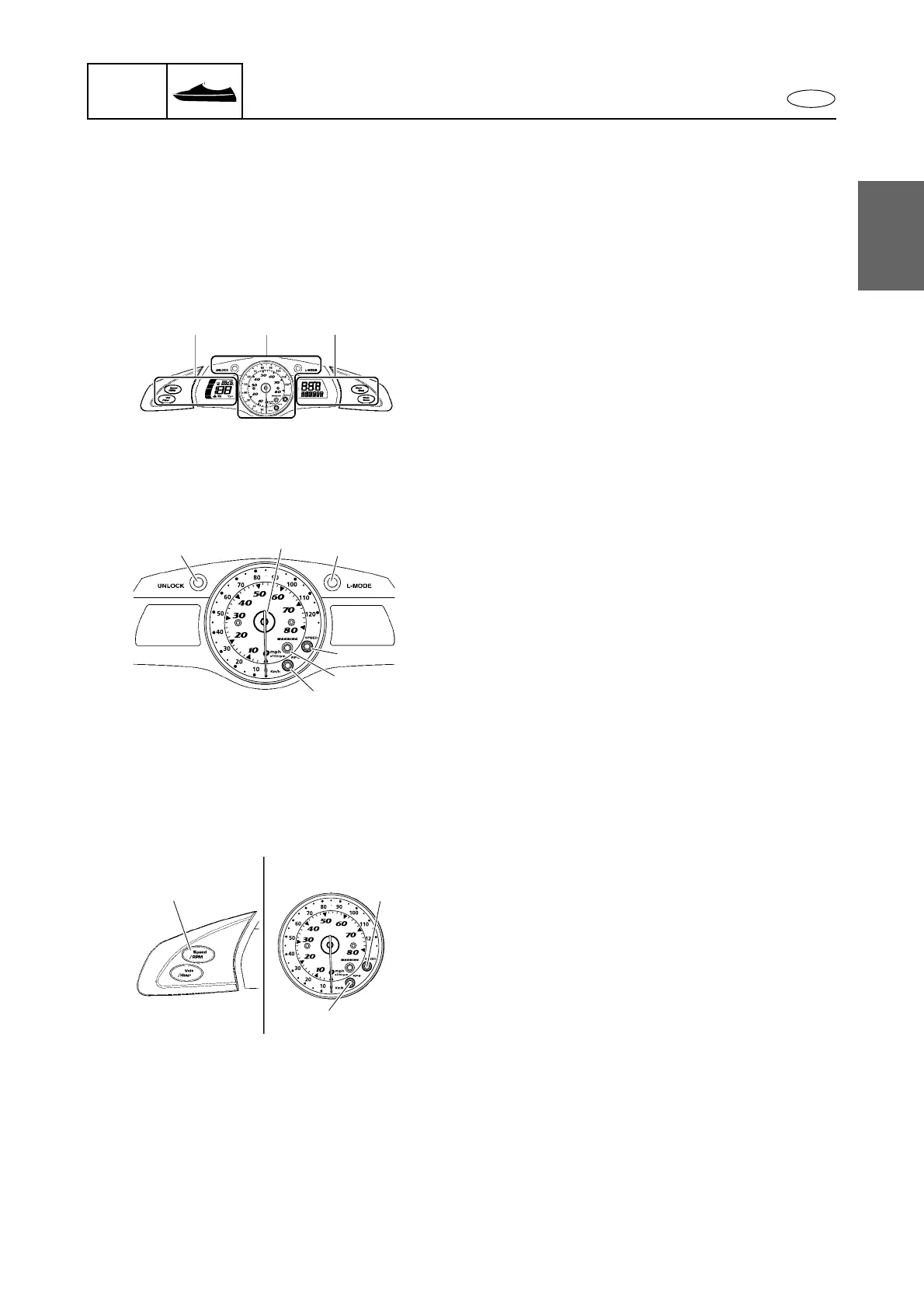

Multifunction meter
A multifunction meter with an analog speedometer/tachometer located in the center has been
adopted. This meter is basically comprised of 3 types of meters. When the multifunction meter starts
operating, the analog speedometer/tachometer makes 1 sweep, all displays light up for 2 seconds,
and then the meter starts to operate normally. The indicator lights and displays of the multifunction
meter will continue to operate for 25 seconds after the engine stops.
1 Analog speedometer/tachometer and indicator
lights
2 Left multifunction display and operation buttons
3 Right multifunction display and operation
buttons (FX Cruiser SHO)
The analog speedometer/tachometer and indicator lights have the following functions.
1 Analog speedometer/tachometer
2 “SPEED” indicator light
3 “WARNING” indicator light
4 “RPM” indicator light
5 “UNLOCK” indicator light
6 “L-MODE” indicator light
The analog speedometer/tachometer can be used as a speedometer or a tachometer; however,
both cannot be selected at the same time. To switch between the speedometer and the tachometer
functions, push the “Speed/RPM” button for at least 1 second when the multifunction meter is oper-
ating. The “SPEED” indicator light comes on when the analog speedometer is selected. The “RPM”
indicator light comes on when the analog tachometer is selected.
1 “Speed/RPM” button
2 “SPEED” indicator light
3 “RPM” indicator light
2
1
3
5
1
6
2
3
4
2
3
1
