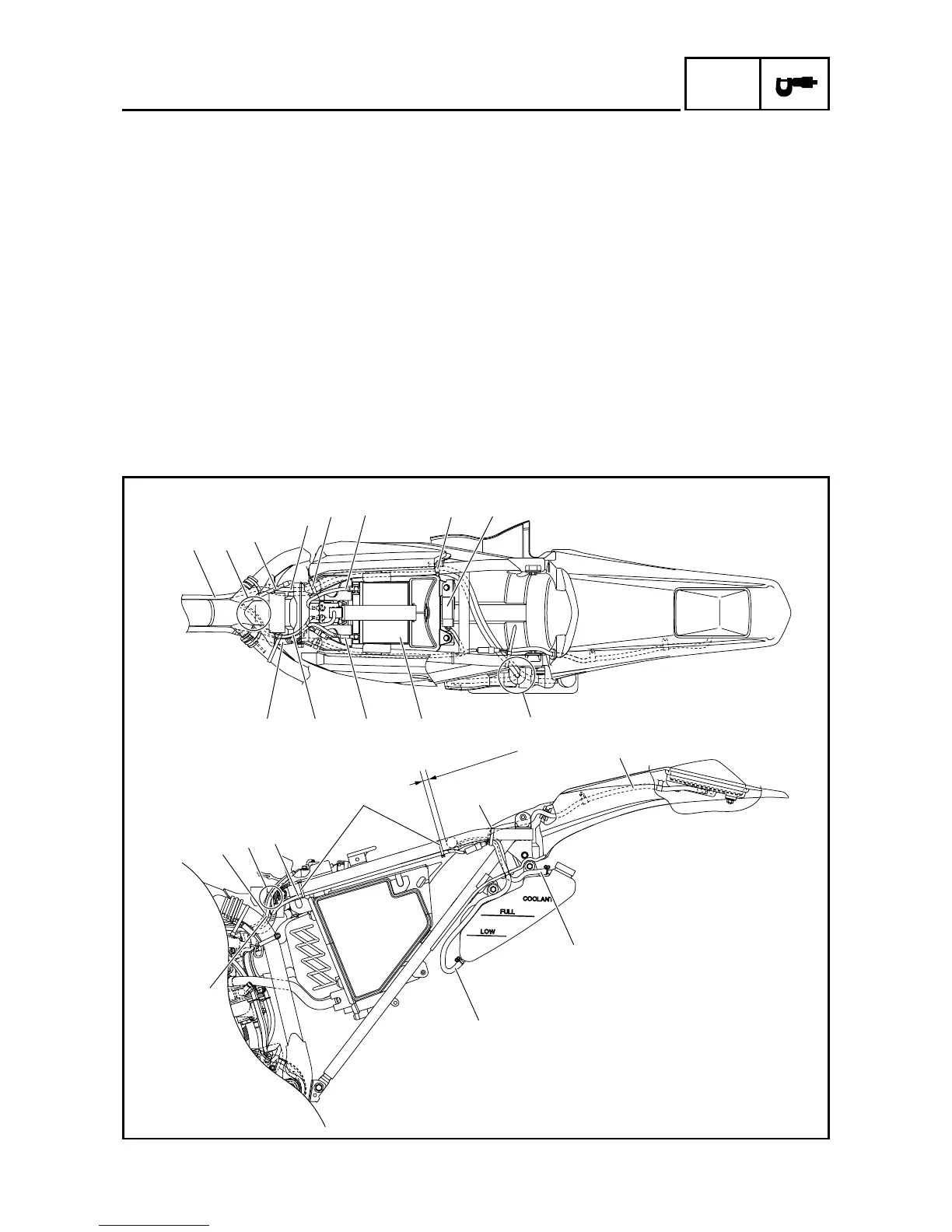

CABLE ROUTING DIAGRAM
1
Starter motor lead
2
Negative battery lead
3
Wire harness
4
Clamp
5
Taillight lead
6
Coolant reservoir tank breather
hose
7
Coolant reservoir hose
8
Positive battery lead
9
Starting circuit cut-off relay
0
Battery
È
Position the starter motor lead,
negative battery lead and wire
harness in the tank damper slit.
É
Fasten the wire harness to the
frame with a plastic locking tie
and cut off the tie end.
Ê
Fasten the coolant reservoir
tank breather hose and coolant
reservoir hose to the frame with
a plastic locking tie.
Ë
Do not allow the taillight lead to
slacken.
Ì
Pass the starter motor lead and
negative battery lead over the
carburetor.
Í
Fasten the coolant reservoir
tank breather hose and coolant
reservoir hose to the frame with
a plastic band.
Î
Pass the coolant reservoir hose
on the outside of the coolant
reservoir tank breather hose.
7
Ì
4
Í
5
Ë
4
Ê
7
6
È
3
2
1
4
É
4
Í
4
Í
Î0
9
6
8
213
Zero ~ 10 mm
(Zero ~ 0.39 in)
