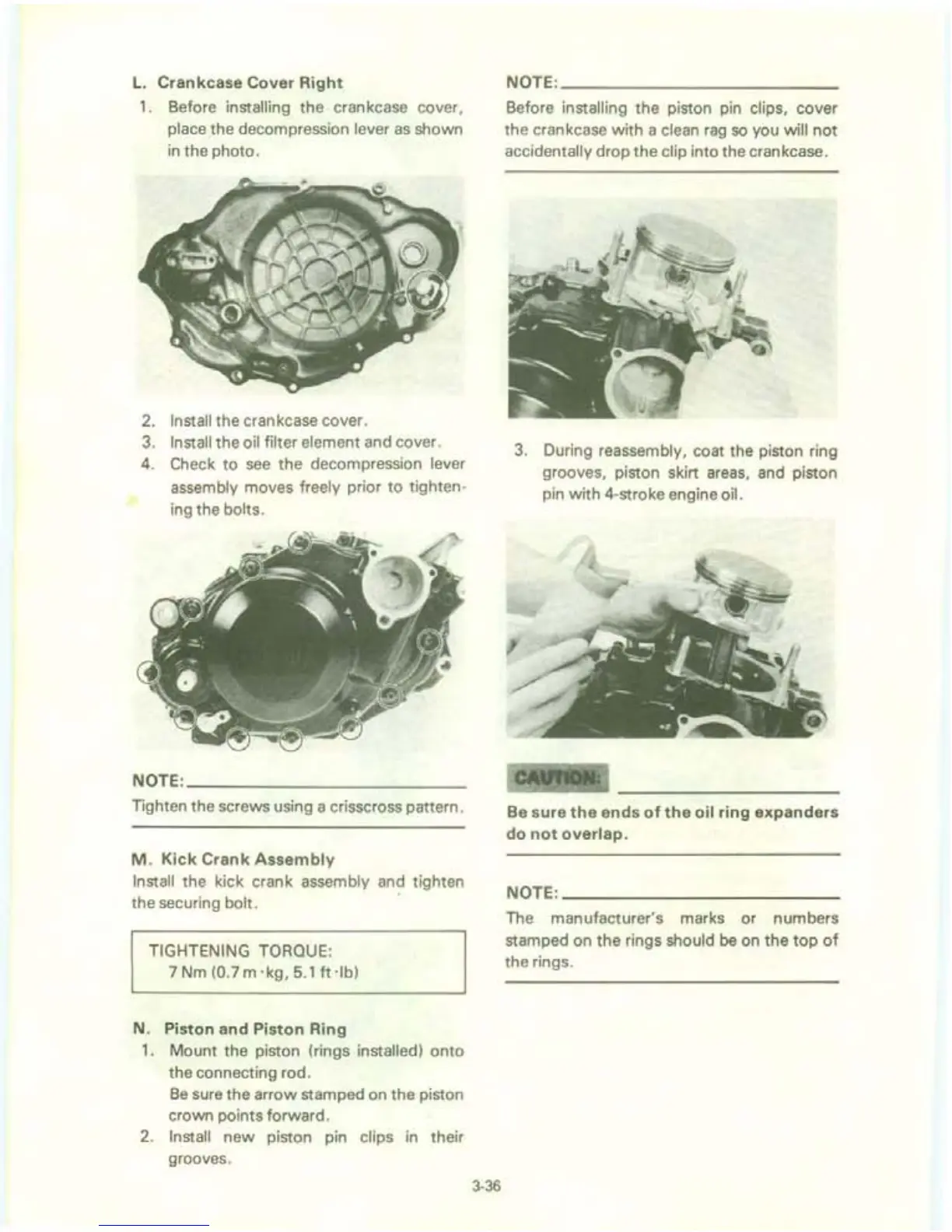

L.
Crankcase Cover Right
1.
Before installing the crankcase cover,
place the decompression lever
as
shown
in
the photo.
2.
Install the crankcase cover.
3.
Install the oil filter element and cover.
4. Check
to
see
the decompression lever
assembly moves freely prior to tighten-
ing the bolts.
NOTE:
______________________
__
Tighten the screws using a crisscross pattern.
M.
Kick Crank Assembly
Install the kick crank assembly and tighten
the securing
bolt.
TIGHTENING
TORQUE:
7
Nm
(0.7 m 'kg,
5.1
ft
'Ib)
N.
Piston and Piston Ring
1.
Mount the piston (rings installed) onto
the connecting rod.
Be
sure the arrow stamped on the piston
crown points forward.
2.
Install
new
piston pin clips
in
their
grooves.
3-36
NOTE
:
___________
_
Before installing the piston pin clips, cover
the crankcase with a clean
rag
so
you will not
accidentally drop the clip into the crankcase.
3.
During reassembly, coat the piston ring
grooves, piston skirt areas, and piston
pin with 4-stroke engine oil.
~-""
~,..~,
-,1
~
$:I,
"'1.1<-'
,...
..
Be
sure
the
ends
of
the
oil ring expanders
do
not
overlap.
NOTE:
___________
_
The manufacturer's marks or numbers
stamped on the rings should
be
on the
top
of
the rings.
